Description

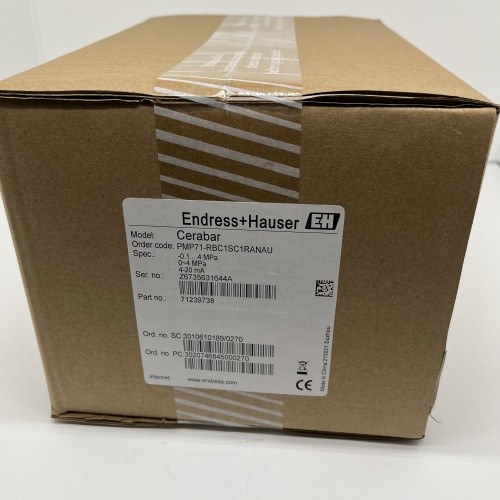

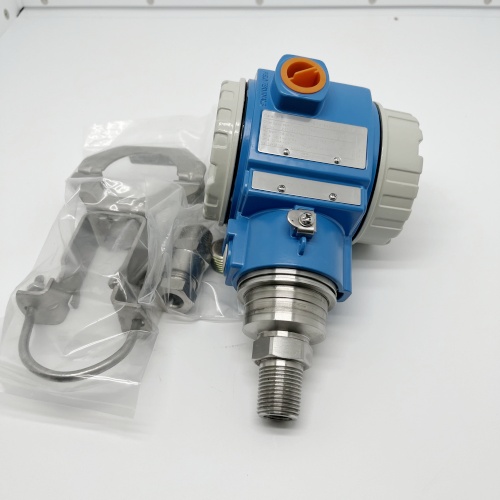

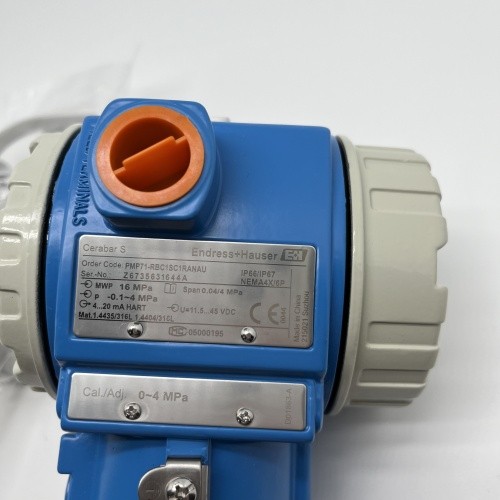

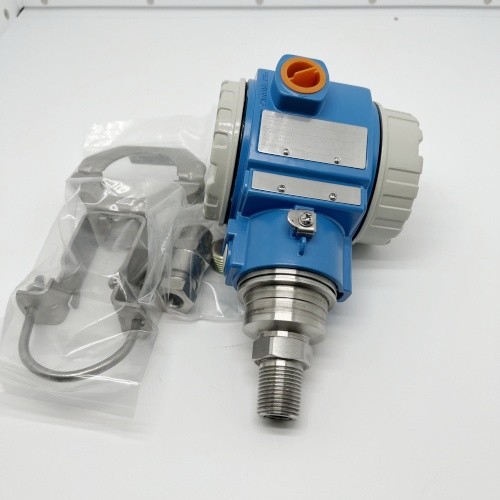

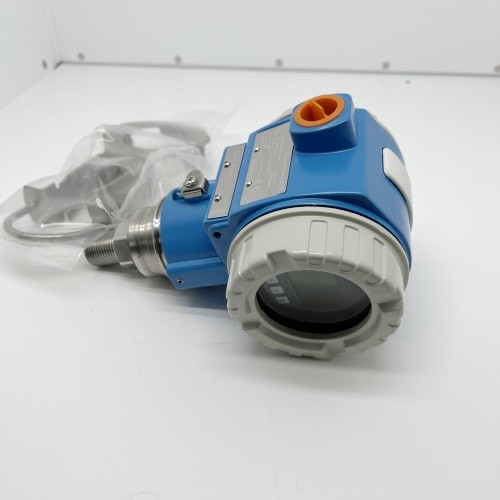

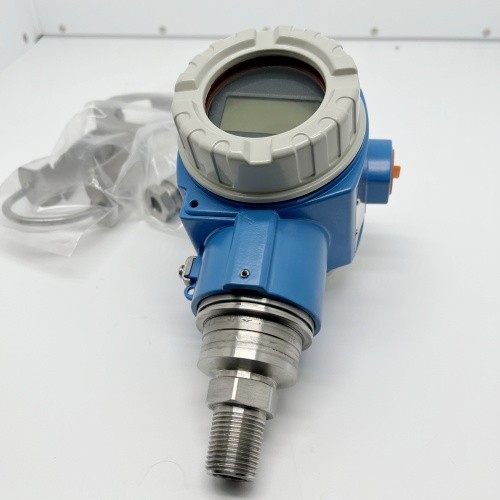

E+H Endress+Hauser Cerabar Digital Pressure Transmitter PMP71-RBC1SC1RANAU New Original
Field of application
Benefits
G:Seamless and independent system integration (HART/PA/FF)
The Cerabar PMP71 digital pressure transmitter with metallic membrane is typically used in process applications for pressure, level, volume or mass measurement in liquids or gases. PMP71 is designed for high pressure applications up to 700bar. Quick Setup with freely adjustable measuring range without pressure specification. Designed according to IEC 61508 for use in SIL2/3 safety systems and available with MID Parts Certificate suitable for custody transfer applications.
A:Best accuracy, reproducibility and long-term stability
B:Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
C:Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
D:HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
E:Overload-resistant and function-monitored from the measuring cell to the electronics
F:Available with mounted manifolds: always fit, always tested for leaks
Description
Brand :
E+H
Model :
PMP71-RBC1SC1RANAU
Product type :
Cerabar Digital Pressure Transmitter
Output:
4-20MA
Max:
1050 bar (15 750 psi)
S - Enclosure Material :
Stainless Steel
Shipping weight :
8 Kg
Process connections
PMC71:
1.Thread
2. EN flanges DN 25 – DN 80
3.ANSI flanges 1" – 4"
4.JIS flanges 50 A – 100 A
PMP71:
1.Thread
2.DN 25 – DN 80
3.ASME 1 ½" – 4"
4.JIS 25 A – 100 A
5.Oval flange adapters
6.Prepared for diaphragm seal mount
PMP75: Wide range of diaphragm seals
Measuring ranges
PMC71: From –100/0 to 100 mbar (–1.5/0 to 1.5 psi) to –1/0 to 40 bar (–15/0 to 600 psi)
PMP71: From –400/0 to 400 mbar (–6/0 to 6 psi) to –1/0 to 700 bar (–15/0 to 10500 psi)
PMP75: From –400/0 to 400 mbar (–6/0 to 6 psi) to –1/0 to 400 bar (–15/0 to 6000 psi
Picture:
