Description

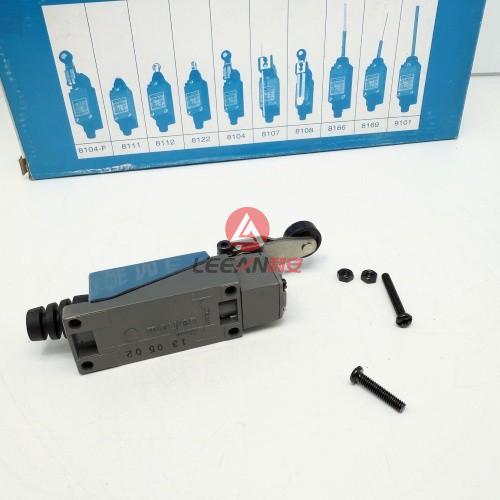

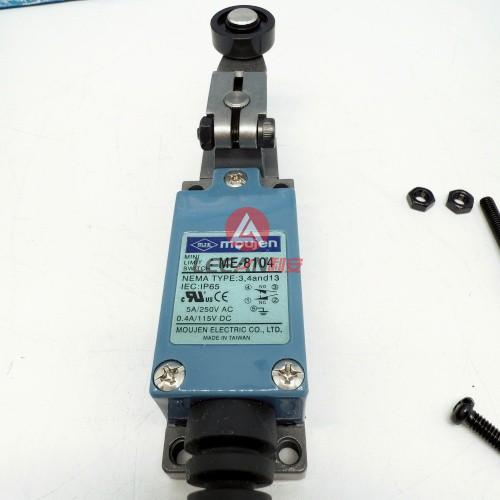

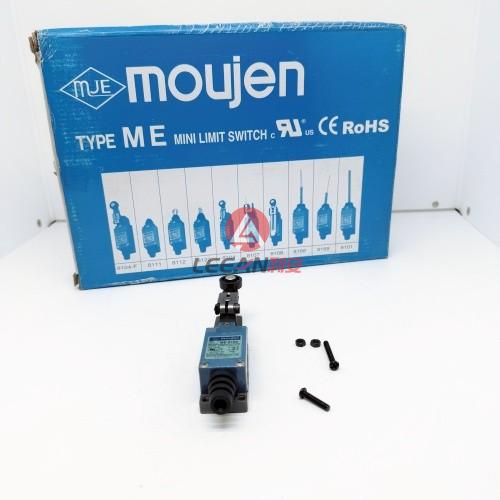

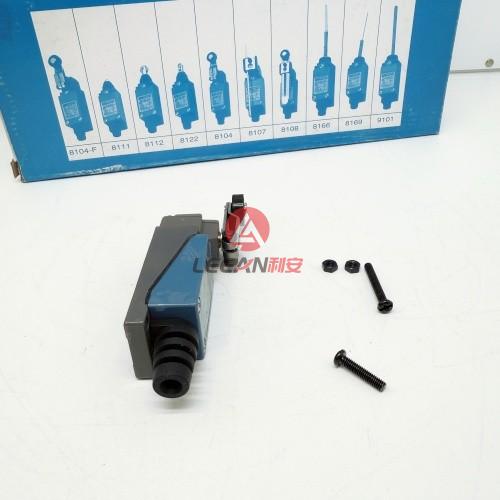

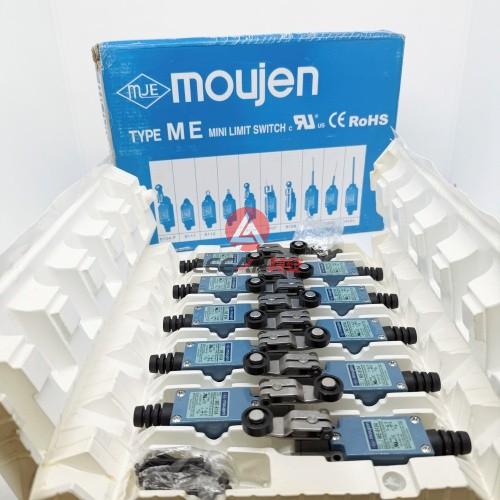

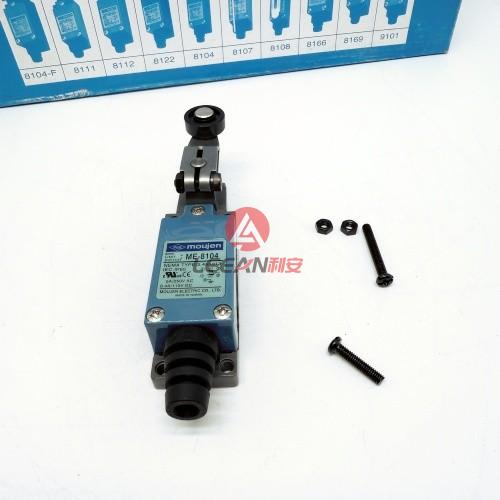

Moujen Miniature Limit Switch ME-8104 Industrial Roller Lever Arm Momentary Switches New
Overview
Compact Industrial Limit Switch, Field adjustable/changeable actuator head, 1NO, 1NC Double Break Isolated Contact, 5A, IP65, Vertical Mount, Internal Grounding Screw
FEATURES
1. Wide choice of heads and actuators.
2. Variety of operating characteristics.
3. Captive cover screws.
4. Mode of operation is field adjustable.
5. Internal grounding screw.
6. Dustproof,Oil-tight,Water-Resistant.
7. Temperature range +5℉ to +160℉.
Wide Application
ME-8104 Limit Switch for Automated production lines equipment, machine tools equipment, logistics and transportation systems equipment, industrial robots equipment, packaging machinery equipment, printing machinery equipment,3D printer door switch CNC mill laser plasma router and other industrial equipment.
High-quality Material
The wiring port is made of high-quality rubber, which can effectively block the intrusion of moisture and oil. Zinc alloy has high strength and corrosion resistance, can withstand certain mechanical shock and vibration, and protect the internal components of the switch from being affected by the external environment.
Specification:
If you need other models, pls feel free to contact us.
Brand
Moujen
Product
Limit Switch
Model
ME-8104
Origin
Taiwan
Specifications
Voltage and Current : 5A 250V AC / 0.4A 115V DC
Size :125mm x 28mm x 40.5mm/4.92inch x 1.10ich x 1.59inch(L x W x H)
Waterproof level: IP65
Operation speed:5mm-0.5m/sec
Contact resistance:25mΩ max. (initial value)
Insulation resistance:100m2 min. (at 500vDC)
Operation Mode: automatic
Contact Type: Normally Open, Normally Closed
Connector Type: Auxiliary
Control Method: Touch
Similar Products
ME-8108
ME-8108-L
ME-8108-M
ME-8104
ME-8104-L
ME-8104-M
ME-8104-F
ME-8111
ME-8112
ME-8112-P
ME-8112-PT
ME-8122
ME-8122-PT
ME-8107
ME-8166
ME-8166 ACTUATOR
ME-8169
ME-9101
ME-9101-HI
MJ-7101
MJ-7102
MJ-7103
MJ-7104
MJ-7106
MJ-7107
MJ-7108
MJ-7208
MJ-7204
MJ2-1704
MJ2-1701
MJ2-1702
MJ2-1703
MJ2-1578
MJ2-1543
MJ2-1704F
MJ2-1515-PT
MEA-9112
MEA-9111
MEA-9107
MEA-9108
MVS-3203-30
MN-5100

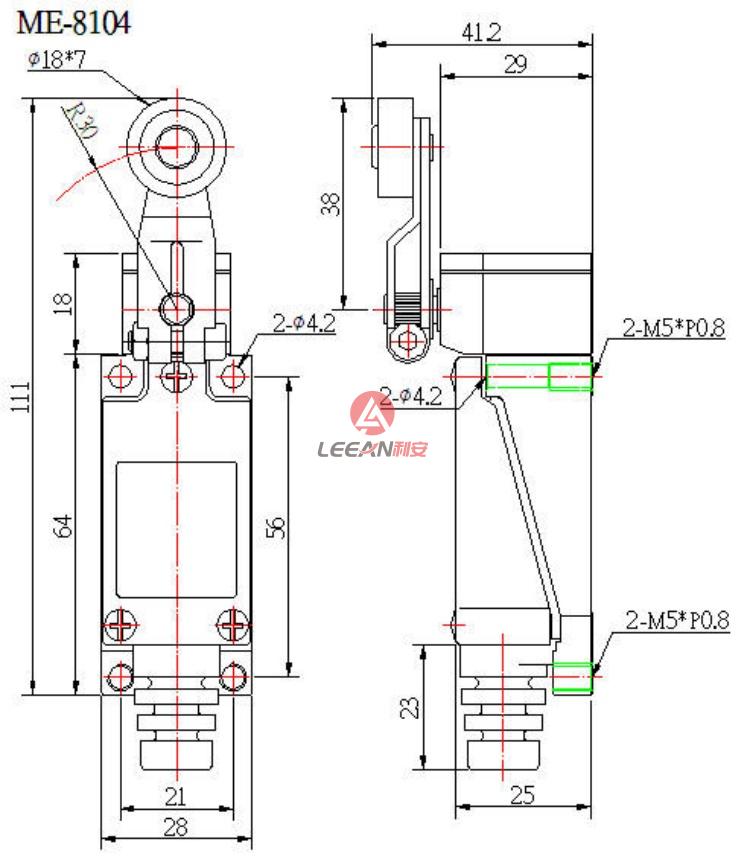

Dimension
