Description

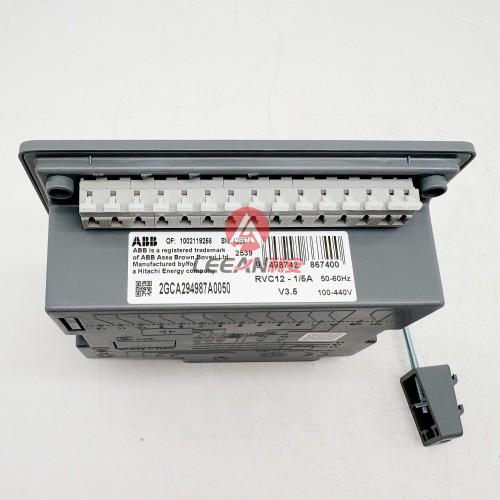

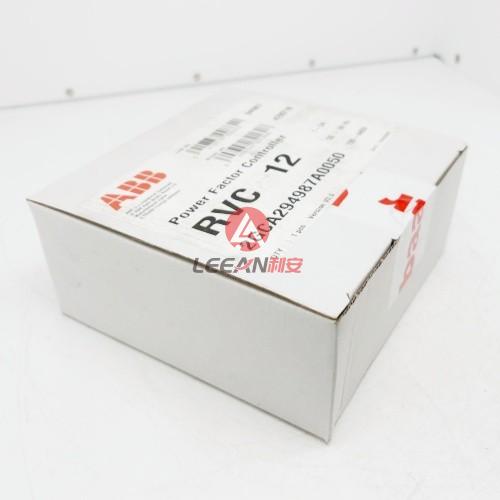

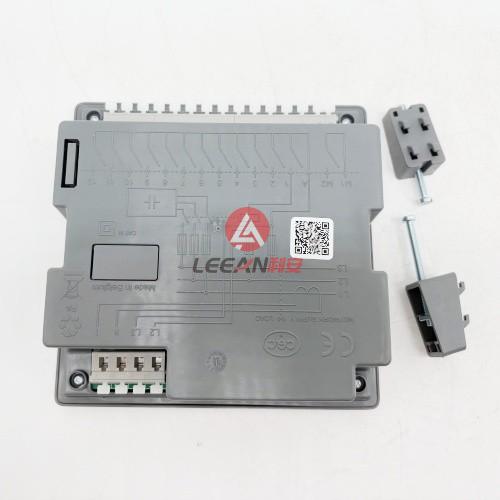

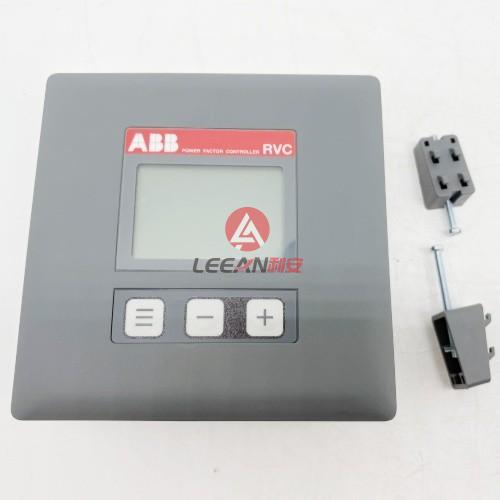

ABB Key Screen Power Factor Controller RVC 12 1/5A Automatic Compensation Controllers 2GCA294987A0050 New
Overview
RVC has become synonymous with automatic capacitor
bank controller in many markets worldwide thanks to
its distinct design, ease of use, reliability and versatile
functions. The RVC is an easy-to-install, easy to use, smarter power factor controller and an ideal companion of your automatic capacitor banks.
Powerful features
•Common range for a broad network voltages from 100V to 440V.
•Measurement and display of key parameters like voltage, current, power factor, THDV and THDI.
•Fully programmable switching sequence.
•1A or 5A current input.
•Easy commissioning.
•Complete auto set-up (starting current-C/k, type of switching sequence, phase shift, special connections).

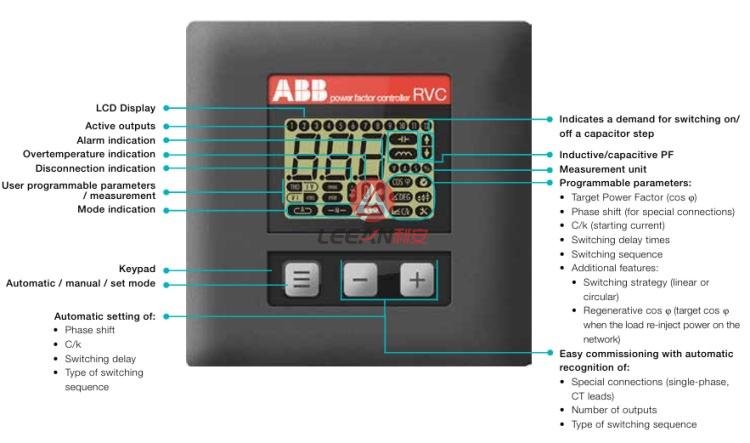

•Easy to use thanks to a user-friendly interface and ease of access to parameters for manual setting.
•Highly efficient switching strategy combining integral, direct and circular switching thereby allowing:
• to control the cos j in presence of rapidly varying loads,
• to reduce the number of switching,
• to avoid unnecessary intermediary switchings,
• to increase the lifetime of the capacitors and contactors.
•Suitable for hot environments due to maximum ambient temperature rating of 70°C.
•Not affected by harmonics.
•Overvoltage / undervoltage protection and protections against harmonic distortion (THDV).
•Alarm : an alarm contact is opened when any of these conditions are reached:
• the target cos j is not reached within 6 minutes after all outputs have been switched on,
• the internal temperature of the RVC rises above 85°C,
• overvoltage / undervoltage limits are reached,
• the power supply is out of range,
• the THDV exceeds the limits.
Product Details
| Brand | ABB |
| Type | Power Factor Controller |
| Model |
RVC 12 |
| Order Number |
2GCA294987A0050 |
| Specifications |
Measuring system:Micro-processor system for balanced three-phase networks or single-phase networks. Operating voltage:100V to 440V. Voltage tolerance:+/- 10% on indicated operating voltages. Frequency range:50 or 60 Hz +/- 5% (automatic adjustment to network frequency). Measuring circuit terminals (L2, L3 and k, I):CAT III rated. Current input:1A or 5A (RMS). Current input impedance:<0.1 Ohm (recommended CT class 1.0, 10 VA min). Consumption of the controller:8 VA max. Output contact rating: max. continuous current: 1.5A; max. peak current: 5 A; max. voltage: 440Vac; terminal A is rated for a continuous current of 16A. Alarm contact: normally open contact; max. continuous current: 5 A; rated/max. breaking voltage: 250Vac/440 Vac. Power Factor setting From 0.7 inductive to 0.7 capacitive. Starting current setting (C/k): 0.01 to 3A. automatic measurment of C/k. Number of outputs: RVC-3: programmable up to 3 outputs RVC-6: programmable up to 6 outputs RVC-8: programmable up to 8 outputs RVC-10: programmable up to 10 outputs RVC-12: programmable up to 12 outputs Switching time between steps:Programmable from 1s to 999s (independent of reactive load). Switching sequences:User defined. Mode of switching:The mode of switching for all the programmable switching sequences is integral, direct, circular or linear. Saving-function:All programmed parameters and modes are saved in a non-volatile memory. Power outage release:Quick automatic disconnection in less than 20ms (50Hz) in case of power outage or voltage drop. Power outage reset delay time:40 s. Operating temperature:-10° C to 70° C. Storage temperature:- 30° C to 85° C. Mounting position:Vertical panel mounting. Dimensions:144x144x43 mm (hxwxd). Cut-out dimensions:138x138 mm (hxw). Weight:0.4 kg (unpacked). Connector:Spring clamp terminal block. Front plate protection:IP43. Relative humidity:Maximum 95%, non-condensing. Article numbers for ordering: RVC-3: 2GCA294983A0050 RVC-6: 2GCA294984A0050 RVC-8: 2GCA294985A0050 RVC-10: 2GCA294986A0050 RVC-12: 2GCA294987A0050 Other features: Overvoltage and undervoltage protection. Autoadaptation to the phase-rotation of the network and the CT-terminals. Not affected by harmonics. Working with generative and regenerative loads. LCD contrast automatically compensated with temperature. Standards:CE marked. |
| Condition | New |
| Net Weight | 3-5KG |
| Warranty | One Year |
| More ABB items |
RVT-6 2GCA289004A0050 RVT-12 2GCA291721A0050 RVC-L-12 2TAZ460104R1120 RVT-L-18 2TAZ460103R0180 PM590-ETH CM574-RS CM597-ETH MC5102 MC502
CM-PVS.41S
If you need other models,pls feel free to contact us. |
