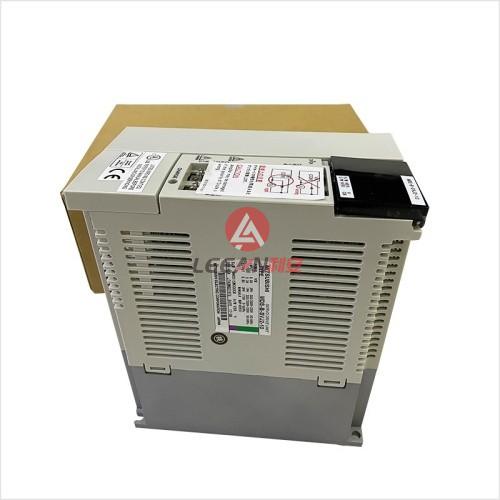

Mitsubishi 1KW Industrial Servo Drive Unit MDS-B-SVJ2-10 Servomotor Driver Amolifier New

Description

Mitsubishi 1KW Industrial Servo Drive Unit MDS-B-SVJ2-10 Servomotor Driver Amolifier New

---

Overview

The Mitsubishi MDS-B-SVJ2-10 (MDSBSVJ210) is a MDS series servo drive with a power supply. The servo drive built-in power supply voltage is 200-230VAC with a frequency of 50/60Hz. The 3-phase voltage of the MDS-B-SVJ2-10 servo drive may operate at an increased rate of 170-253VAC. The frequency is also permitted to waver between +5% and -5% of the original 50/60Hz.

The MDS-B-SVJ2-10 servo drive with a power supply may connect with other drives of the same series. These connections are accomplished by linking the CN1A port to the CN1B port and vice versa. The CN1B port may also battery or terminator connector. The CN1A may link with an NC (no connection. The cable that must be used to link the MDS-B-SVJ2-10 with other servo drives is the SH21 cable. No more than seven axes, that is, seven servo drives may be linked in a row.

There is a list of motors which may be deployed in connecting to the MDS-B-SVJ2-10 servo drive with power supply. They are the: HC102, HC152, HC202, HC103, HC103R, HC153R, HA80N, HA83N, HC-SF152, HCSF202, HC-SF153, HC-SF202, HC-SF203, HC-RF103, and HC-RF153. All connections between the MDS-B-SVJ2-10 servo drive and the applicable motors are the same, namely attaching the encoder to the CN2 port of the amplifier, and also linking the three screw terminals with the power supply cable and also grounding a wire. The encoder cables used to link the motor and the MDS-B-SVJ2-10 servo drive vary depending on the particular motor. They are the CNV2C and CNV12 encoder cables. One may check the manual in order to learn which encoder will apply to which motor.

---

Product details

Brand	Mitsubishi Electric
Type	SERVO DRIVE UNIT
Model	MDS-B-SVJ2-10
Power	1KW

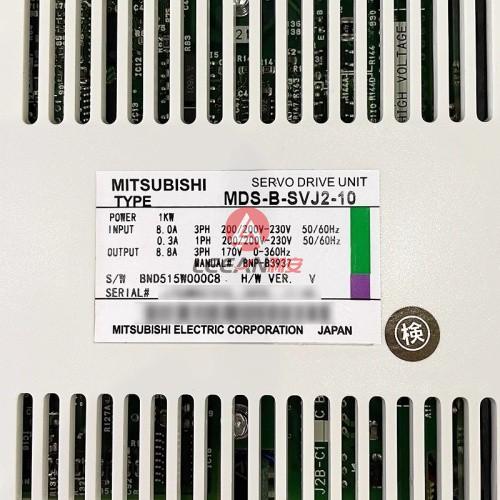

Input	8.0A 3PH 200/200V-230V 50/60Hz 0.3A 1PH 200/200-230V 50/60Hz
Output	8.8A 3PH 170V 0-360Hz
Condition	New Original
Warranty	One Year
Country of Origin	Japan
Similiar Servo Amplifiers	MDS-B-SVJ2-01 MDS-B-SVJ2-03 MDS-B-SVJ2-04 MDS-B-SVJ2-06 MDS-B-SVJ2-07 MDS-B-SVJ2-10 MDS-B-SVJ2-20 MDS-B-SPJ2-02 MDS-B-SPJ2-04 MDS-B-SPJ2-075 MDS-B-SPJ2-15 MDS-B-SPJ2-22 MDS-B-SPJ2-37 MDS-B-SPJ2-55 MDS-B-SPJ2-75 MDS-B-SPJ2-110 MDS-B-SP-55 MDS-B-SP-75 MDS-B-SP-110 MDS-B-SP-150 MDS-B-SP-220 MDS-B-SP-260 MDS-B-SP-300 MDS-B-SP-370 MDS-B-SP-450 MDS-B-CV-37 MDS-B-CV-75 MDS-B-CV-55 MDS-B-CV-110 MDS-B-CV-185 MDS-B-CVE-450 MDS-B-SP-110 MDS-B-SPH-110 MDS-B-SPM-110 MDS-B-SPX-110 MDS-B-SP-185 MDS-B-SPH-185 MDS-B-SPM-185 MDS-B-SPX-185 MDS-B-SP-220 MDS-B-SPH-220 MDS-B-SPM-220 MDS-B-SPX-220 MDS-B-SP-300 MDS-B-SP-75 MDS-D-SP-160 MDS-D-SP-220 MDS-DH-SP-200 MDS-B-SP-110 MDS-C1-SP-300U MDS-C1-SP-185-N MDS-C1-SP-185 MDS-C1-SPM-185 MDS-C1-SP-55 MDS-C1-SP-37 MDS-C1-SP-220 MDS-B-SPJ2-04 MDS-B-SPJ2-075 MDS-B-SPJ2-15 MDS-B-SPJ2-22 MDS-B-SPJ2-37 MDS-B-SPJ2-55 MDS-B-SPJ2-75 MDS-B-SPJ2-110 MDS-R-V1-40 MDS-R-V1-20 MDS-R-V1-60 MDS-R-V1-80 MDS-R-V2-2020 MDS-R-V2-4020 MDS-R-V2-4040 MDS-R-V2-6040 MDS-R-V2-6060 MDS-R-V2-8060 MDS-R-V2-8080

---

Configuration

A.Servo Drive, Motor & Cables
B.Spindle Drive, Motor, Options & Cables

---

Servo drive unit series

MDS-D-SVJ3-03NA, MDS-D-V1-20,MDS-D-SVJ3-04NA,MDS-D-V1-40 ,MDS-D-SVJ3-07NA,MDS-D-V1-80
MDS-D-SVJ3-10NA, MDS-D-V1-160 ,MDS-D-SVJ3-35NA ,MDS-D-V1-320 ,MDS-D-V1-320W, MDS-B-SVJ2-06

MDS-D-V2-2020, MDS-B-SVJ2-07 ,MDS-DH-V1-80, MDS-D-V2-4020 ,MDS-B-SVJ2-10 ,MDS-DH-V1-80W

MDS-D-V2-4040, MDS-B-SVJ2-20 ,MDS-DH-V1-160, MDS-D-V2-8040, MDS-R-V1-20 ,MDS-DH-V2-4020

MDS-D-V2-8080, MDS-R-V1-40 ,MDS-DH-V2-8040, MDS-D-V2-16080, MDS-R-V1-60 ,MDS-DH-V2-8080

MDS-D-V2-160160, MDS-R-V1-80 ,MDS-C1-V1-20, MDS-D-V2-160160W, MDS-R-V2-2020 ,MDS-C1-V1-35

MDS-C1-V2-2020, MDS-R-V2-4040 ,MDS-C1-V1-45, MDS-C1-V2-3535, MDS-R-V2-6040 ,MDS-C1-V1-70

MDS-C1-V2-4535, MDS-R-V2-6060, MDS-C1-V1-90, MDS-C1-V2-4545, MDS-R-V2-8040 ,MDS-C1-V1-110

MDS-C1-V2-7045, MDS-R-V2-8060 ,MDS-C1-V1-150, MDS-C1-V2-7070, MDS-R-V2-8080 ,MDS-B-ISV-04NX

MDS-B-SVJ2-01, MDS-B-V2-1010 ,MDS-B-V14-70, MDS-B-SVJ2-03 ,MDS-B-V2-2020 ,MDS-B-V2-0101

MDS-B-SVJ2-04, MDS-B-V2-3510 ,MDS-B-V2-0303, MDS-B-V2-0303 ,MDS-B-V24-0303 ,MDS-B-V2-0501

MDS-B-V2-0501,MDS-B-V24-0505 ,MDS-B-V2-0505, MDS-B-V2-0505, MDS-B-V24-4520 ,MDS-C1-V1-05

MDS-C1-V2-4520, MDS-B-V2-4520 ,MDS-C1-V1-10, MDS-C1-V2-4545S, MDS-CH-V1-20 ,MDS-CH-V1-10

MDS-CH-V2-4535, MDS-CH-V1-35 ,MDS-CH-V2-4535,MDS-D2-V2-8080 ,MDS-CH-V1-45 ,MDS-DH2-CV-300

MDS-DH2-V2-8080 ,MDS-CH-V1-70 ,MDS-DM-SPV3F-20080, MR-J2-100CT, MDS-CH-V1-90 ,MR-J2-200CT

MR-J2-350CT, MDS-CH-V2-1010 ,MR-J2-60CT, MR-J2-40CT, MDS-CH-V2-2010 ,MR-J2-70CT, MR-S11-200-E37

MDS-CH-V2-2020 ,MR-S3-100AA-E01, MR-S11-200-Z37, MDS-CH-V2-3520 ,MR-J2S-60A, MR-S12-100A-E01 MDS-CH-V2-3535

---
