Description

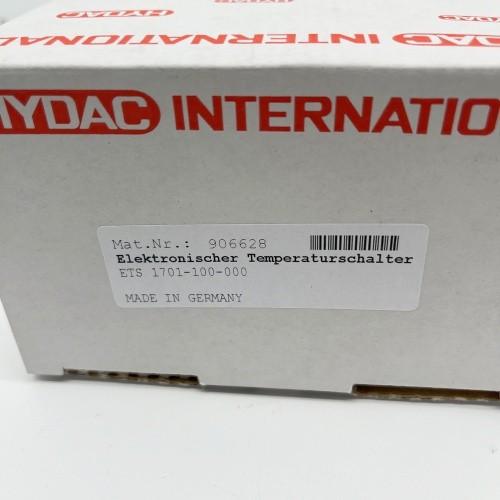

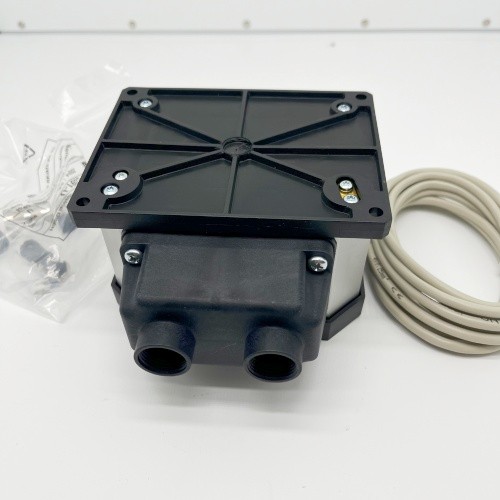

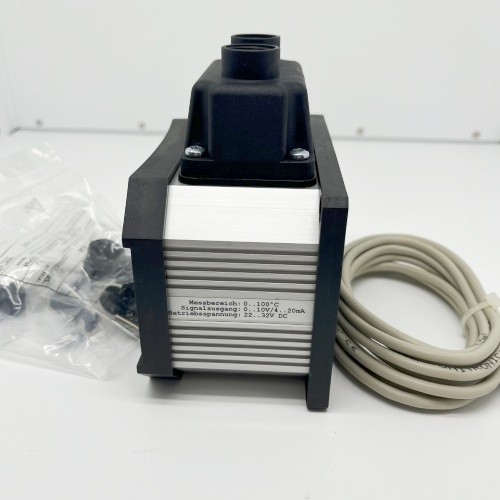

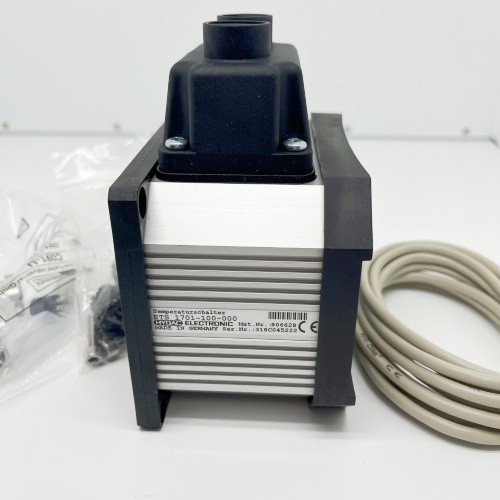

HYDAC Electronic Temperature Switch ETS1701-100-000 906628 with cable New
Overview:

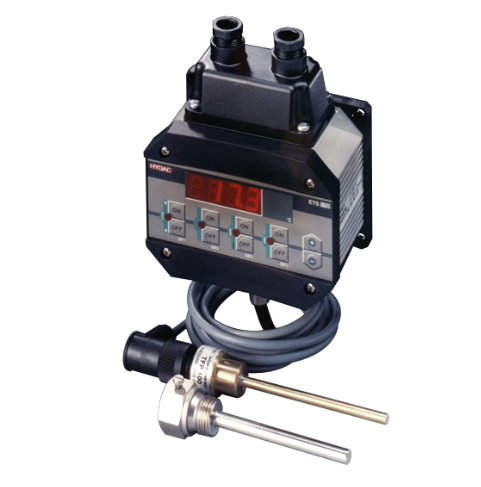

The electronic temperature switch ETS 1700 is used mainly together with the temperature probe TFP 100, which was specially developed for tank mounting.
The 4-digit display can indicate the actual temperature, one of the switch points or the maximum temperature value.
The maximum temperature indicates the highest temperature which has occurred since the unit was switched on or was last reset.
The four switching outputs can be used to control heating and cooling processes in hydraulic systems, for example. Four switch and switch-back points which are independent of each other can be adjusted very simply via the key pad.
Product Details
| Brand |
HYDAC Electronic |
|
Article Number (Market Facing Number) |
ETS1701-100-000 |
| Part Number |
906628 |
| Tyoe |
Temperature Switch |
| Net Weight (kg) | 1 Kg |
|
Connection Type |
Male connector 5 pole Binder series 423/723 for separate temperature probe |
|
Switch Type |
4 relays with change-over contacts in 2 groups (common supply of each group connected) |
|
Output Signal |
4-20 mA or 0-10V, selectable |
|
Electrical Connection |
Plug-in terminal block, 14 pole |
|
Other Electronic Temperature Switch |
ETS 1702-100-000 907072 ETS1701-100-Y00 920649 ETS3226-3-250-000
ETS386-3-150-000 |
