Allen-Bradley PanelView Plus PanelView Terminal Accessory 64MB Internal Compact Flash Card 2711P-RW1 NEW

Description

Allen-Bradley PanelView Plus PanelView Terminal Accessory 64MB Internal Compact Flash Card 2711P-RW1 NEW

Details of memory card 2711P-RW1

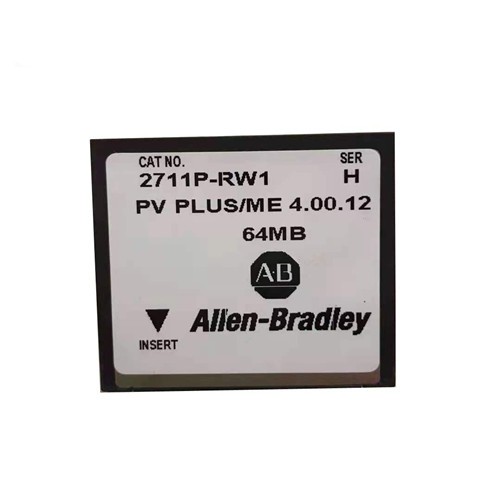

Description: The 2711P-RW1 is a PanelView Plus 6 operator terminal accessory that is manufactured by Allen-Bradley. This is an internal CompactFlash memory card installs to the logic module. It has 128 MB internal CompactFlash with FactoryTalk View ME software.

The Allen-Bradley 2711P-RW2 is an internal CompactFlash card that is installed inside the PanelView Plus logic module. This internal CompactFlash card comes with 64 MB memory and hosts the FactoryTalk View Machine Edition 3.0 software.

The 2711P-RW1 is available in a variety of series. It is available in Series B-J where a Series B Internal CompactFlash being compatible with Series A 2711P-RPx logic module, Series C and Series D for Series B Logic Module, Series E for Series C Logic module, Series F for Series D Logic Module, Series G for Series E Logic Module, Series H for Series F Logic Module and Series J for Series G logic module.

Additionally, Series B 2711P-RW1 contains FactoryTalk View ME 3.0, Series C hosts FactoryTalk View ME 3.10, Series D and E have FactoryTalk View ME 3.20, Series F, G and H with FactoryTalk View ME 4.0 and Series J has FactoryTalk View ME 5.0 or 5.1 version.

The CompactFlash card is located inside the Logic module. The card’s installation slot is located above the RAM module. It is held by retaining screw clips that can be easily disengaged by loosening the retaining screw.

Internal Compact Flash Card
2711P-RW1, 2711P-RW2, 2711P-RW3, 6189-RW2, 6189-RW3, 6189-RW4

HMI Touch Screen

Display Modules (700 to 1500 only)

Model	Description
2711P-RDK7C	700 keypad color display
2711P-RDT7C	700 touch color display
2711P-RDT7CM	700 touch color display, marine certified
2711P-RDB7C	700 keypad and touch color display
2711P-RDB7CM	700 keypad and touch color display, marine certified
2711P-RDT7CK	Conformal-coated 700 touch color display
2711P-RDK10C	1000 keypad color display
2711P-RDT10C	1000 touch color display
2711P-RDT10CM	1000 touch display, marine certified
2711P-RDB10C	1000 keypad and touch color display
2711P-RDB10CM	1000 keypad and touch display, marine certified
2711P-RDK12C	1250 keypad color display
2711P-RDT12C	1250 touch color display
2711P-RDT12AG	1250 touch color display with antiglare overlay
2711P-RDT12CK	Conformal-coated 1250 touch color display
2711P-RDT12H	1250 high-bright touch color display
2711P-RDB12C	1250 keypad and touch color display
2711P-RDK15C	1500 keypad color display
2711P-RDT15C	1500 touch color display
2711P-RDT15AG	1500 touch color display with antiglare overlay
2711P-RDB15C	1500 keypad and touch color display

Logic Modules (700 to 1500 only)

Standard Logic Modules for PanelView Plus Terminals

And CE Logic Modules for PanelView Plus CE Terminals

Model	Description
2711P-RP	Logic module without flash/RAM memory, DC input
2711P-RPD	Logic module, without memory, isolated DC input, marine certified
2711P-RPA	Logic module without flash/RAM memory, AC input, marine certified
2711P-RP1	Logic module with 64 MB flash/64 MB RAM, DC input
2711P-RP1A	Logic module with 64 MB flash/64 MB RAM, AC input, marine certified
2711P-RP1D	Logic module with 64MB, isolated DC input, marine certified
2711P-RP2	Logic module with 128 MB flash/128 MB RAM, DC input Compatible with ViewPoint Software.
2711P-RP2A	Logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP2D	Logic module with 128MB, isolated DC input, marine certified
2711P-RP2DK	Conformal-coated logic module with 128MB, isolated DC input
2711P-RP2K	Conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP3	Logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP3A	Logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP3D	Logic module with 256MB, isolated DC input, marine certified
2711P-RP6	CE logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP6A	CE logic module with 128 MB flash/128 MB RAM, AC input, marine certified
2711P-RP6D	CE logic module with 128MB, isolated DC input, marine certified
2711P-RP6DK	CE conformal-coated logic module with 128MB, isolated DC input
2711P-RP6K	CE conformal-coated logic module with 128 MB flash/128 MB RAM, DC input
2711P-RP7	CE logic module with 256 MB flash/256 MB RAM, DC input
2711P-RP7A	CE logic module with 256 MB flash/256 MB RAM, AC input, marine certified
2711P-RP7D	CE logic module with 256 MB, isolated DC input, marine certified
