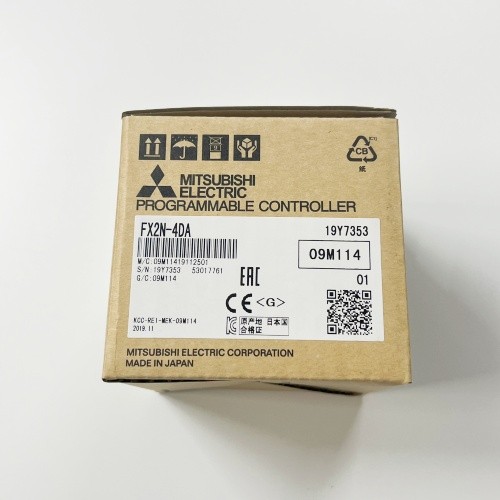

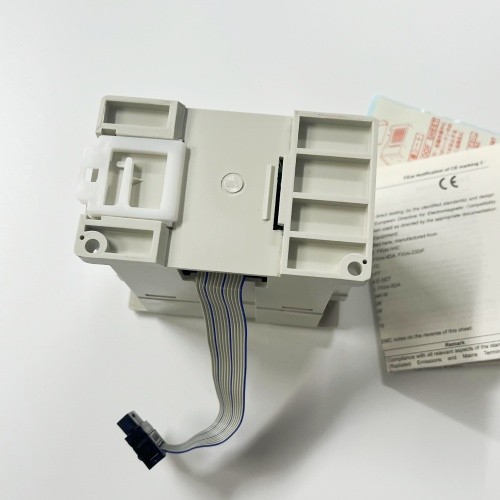

Mitsubishi PLC Programmable Controller FX2N-4DA Analog Special Function Block New
Overview:
The FX2N-4DA analog special function block has four analog output channels. The output channels take a digital value and output an equivalent analog signal. This is known as a D/A conversion. The FX2N-4DA has a maximum resolution of 12 bits.
The selection of voltage or current based input/output is by user wiring. Analog ranges of -10 to 10V DC (resolution: 5mV), and/or 0 to 20mA (resolution: 20μA) maybe selected independently for each channel.
The FX2N-4DA can connected to the FX0N/FX1N/FX2N/FX2NC/FX3U/FX3UC series Programmable Controllers (PLC).
Data transfer between the FX2N-4DA and the main unit is completed buffer memory exchange. There are 32 buffer memories (each of 16 bits) in the FX2N-4DA.
The FX2N-4DA occupies 8 I/O points on the FX2N expansion bus. The 8 I/O points can be allocated from either inputs or outputs. The FX2N-4DA draws 30mA from the 5V rail of the main unit or powered extension unit.
Product Details:
Manufacturer :
Mitsubishi Electric
Product No. :
FX2N-4DA
Product type :
Analog Special Function Block
Applicable PLC:
FX0N, FX1N, FX2N, FX3G, FX3U, FX2NC, FX3GC, FX3UC
Connecting to the connector-type PLC
The FX2NC-CNV-IF is required to connect the FX2NC.
The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC/FX3UC
Number of occupied I/O points:
4 outputs
Mass (weight):
0.4 kg
Similiar Products
FX2N-1PG
FX2N-1PG-E
FX2N-2AD
FX2N-2DA
FX2N-4AD
FX2N-4DA
FX2N-4AD-TC
FX2N-4AD-PT
FX2N-8AD
FX2N-1HC
FX2N-32CCL
FX3U-232ADP-MB
FX3U-485ADP-MB
FX3U-ENET-ADP
FX3U-4AD-ADP
FX3U-4AD-PT-ADP
FX3U-4AD-TC-ADP
FX3U-4DA-ADP
FX2N-16MR-001(220V)
FX2N-16MT-001(220V)
FX2N-32MR-001(220V)
FX2N-32MT-001(220V)
FX2N-48MR-001(220V)
FX2N-48MT-001(220V)
FX2N-64MR-001(220V)
FX2N-64MT-001(220V)
FX2N-80MR-001(220V)
FX2N-80MT-001(220V)
FX2N-128MR-001(220V)
FX2N-128MT-001(220V)
FX2N-32MR-D(24V)
FX2N-32MT-D(24V)
FX2N-48MR-D(24V)
FX2N-48MT-D(24V)
FX2N-64MR-D(24V)
FX2N-64MT-D(24V)
FX2N-80MR-D(24V)
FX2N-80MT-D(24V)

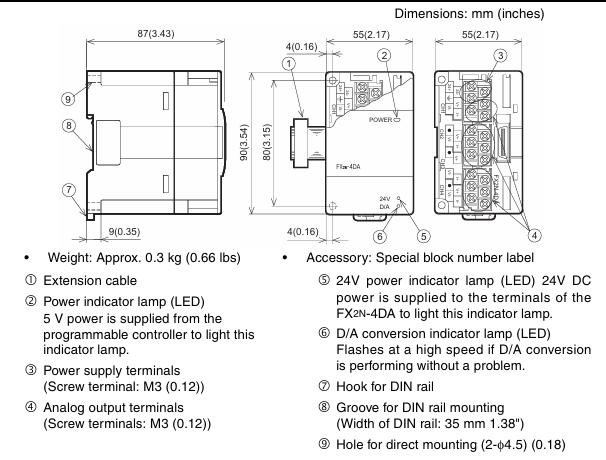

Drawing
