Description

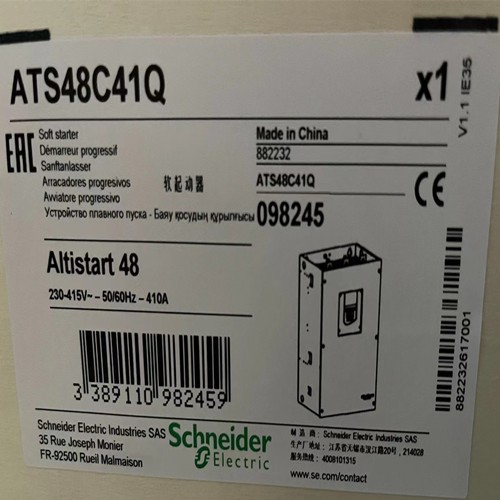

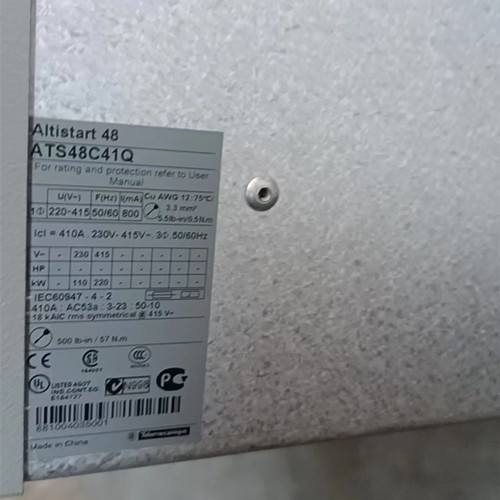

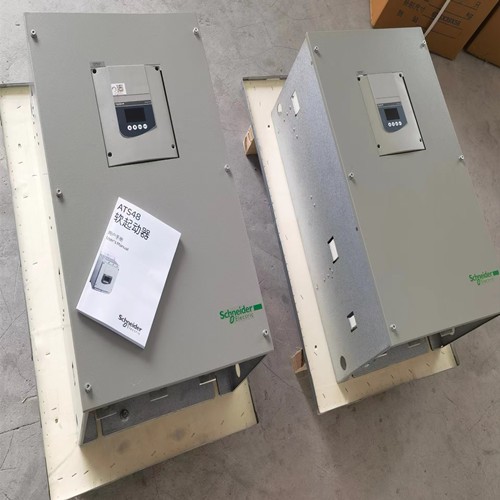

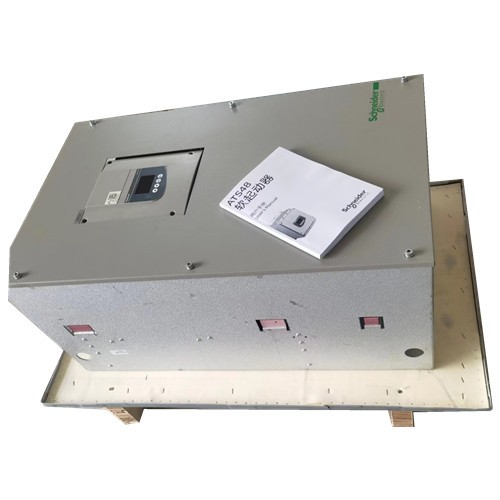

Schneider Electric Sanftanlasser ATS48C41Q Soft starter for asynchronous motor ATS48, 388 A, 230..415 V, 90..315 KW
Specifications of ATS48C41Q
|
Range of product |
Altistart 48 |
|
Product or component type |
Soft starter |
|
Product destination |
Asynchronous motors |
|
Product specific application |
Heavy duty industry and pumps |
|
Device short name |
ATS48 |
|
Power supply voltage |
230...415 V - 15...10 % |
|
Motor power kW |
90 kW at 230 V connection in the motor supply line for severe applications 110 kW at 230 V connection in the motor supply line for standard applications 160 kW at 230 V connection to the motor delta terminals for severe applications 160 kW at 400 V connection in the motor supply line for severe applications 220 kW at 230 V connection to the motor delta terminals for standard applications 220 kW at 400 V connection in the motor supply line for standard applications 250 kW at 400 V connection to the motor delta terminals for severe applications 315 kW at 400 V connection to the motor delta terminals for standard applications |
Description:
SCHNEIDER ELECTRIC ALTISTART 48 ATS48C41Q - STARTER-MOTOR WITH LINE CONNECTION, 230 TO 415 VOLTS, 110 OR 220 KW, 50 TO 60 HZ, 410 AMPS
Specifications of Schneider ATS48C41Q Soft Starter Asynchronous Motor Altistart 48
1）range of product: Altistart 48
2）product or component type: Soft starter
3）rated supply voltage: 230…415 V (- 15…10 %)
4）power dissipation in W: For severe applications 1017 W, For standard applications 1339 W
5）supply voltage limits: 195…456 V
6）supply frequency: 50…60 Hz (- 5…5 %)
7）factory setting current: 388 A
8）control circuit consumption: 80 W
9）width: 400 mm
10）height: 670 mm
11）depth: 300 mm
12）product weight: 51.4 kg
Soft Starter
ATS48C41Q
ATS48C59Q
ATS22C32Q
ATS22C41Q
ATS22C48Q
ATS22C59Q
ATS48C41Q 220KW
ATS38C48Q 250KW
ATS48C59Q 315KW
ATS48C66Q 355KW
ATS48C14Q
ATS48C17Q
ATS48D75Q
ATS48C14Q
Dimensions
