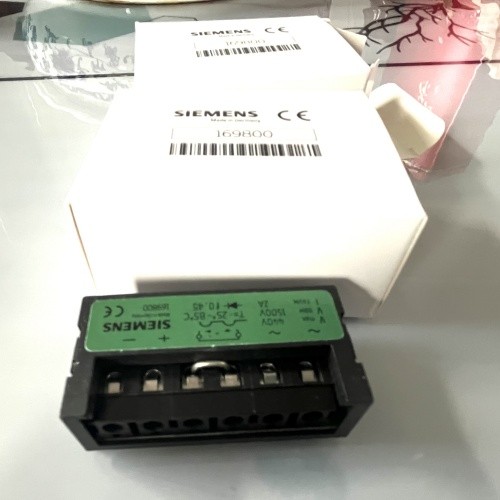

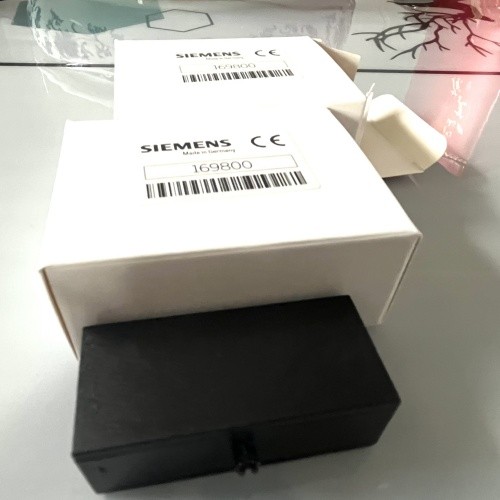

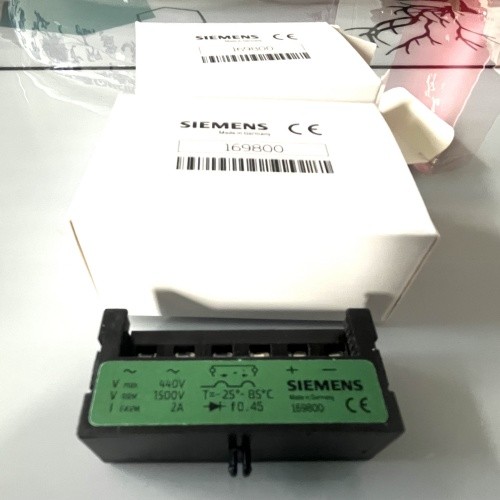

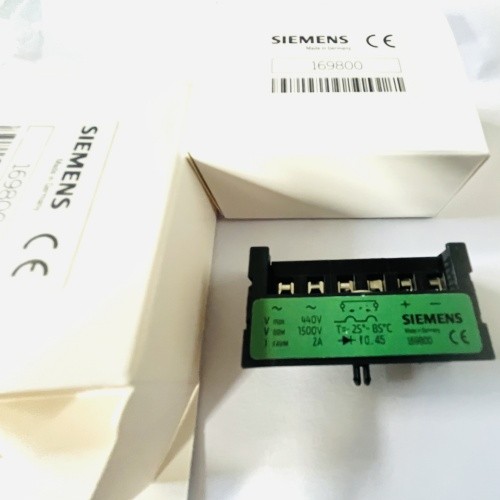

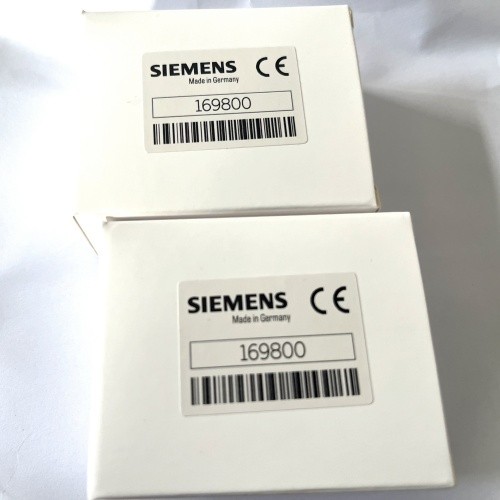

Siemens Varistor Rectifier Bridge Brake 169800 Oneway 3D1 Varistor AC440V New
  1. Siemens Varistor Rectifier Bridge Brake 169800 Oneway 3D1 Varistor AC440V New
  2. Siemens Varistor Rectifier Bridge Brake 169800 Oneway 3D1 Varistor AC440V New
  3. Siemens Varistor Rectifier Bridge Brake 169800 Oneway 3D1 Varistor AC440V New
  4. Siemens Varistor Rectifier Bridge Brake 169800 Oneway 3D1 Varistor AC440V New
  5. Siemens Varistor Rectifier Bridge Brake 169800 Oneway 3D1 Varistor AC440V New

Siemens Varistor Rectifier Bridge Brake 169800 Oneway 3D1 Varistor AC440V New

Varistor Rectifier Module  , Varistor Rectifier Brake  , Siemens Rectifier
Send Inquiry Live chat

Description



Siemens Varistor Rectifier Bridge Brake 169800 Oneway 3D1 Varistor AC440V New





Overview


Varistor Rectifier Brake


The Siemens 169800 brake rectifier convert AC Voltage to DC Voltage which is then used to energize the coil of a DC brake to control and slow an electrical motor. The brake rectifier consists of diodes and varistors that filter undesirable voltage spikes and enable a fast-current shutdown.Ideal for numerous industrial and commercial applications that demand the safe and reliable control of electric motors.


Rectifier EINWEG 3D1 Brake Varistor Features:

Brand Siemens
Model 169800
Vmax
440Vac
VRRm
1500V
Temperature operating range
-25 to 85 Degrees C
Dimensions
52x25x17 mm
Other Siemens Varistor Rectifier Brake 175823
173091
179031




Summary of Features:
a:Easy separation of DC and AC
b:Optimized Thermal Resistance Case to Heat Sink
c:Highest Power Density for compact Inverter Designs


Benefits
Compact modules
a:Easy and most reliable assembly
b:No plugs and cables required
c:Ideal for low inductive system designs


Potential Applications
a:Motor control and drives
b:Solutions for solar energy systems
c:Commercial, construction and agricultural vehicles (CAV)
d:Uninterruptible power supply (UPS)


Diagrams
