Description

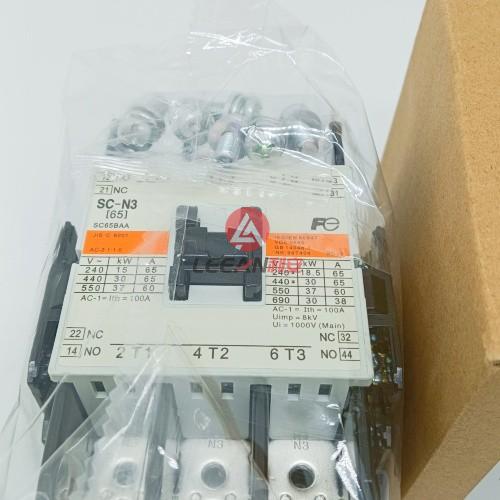

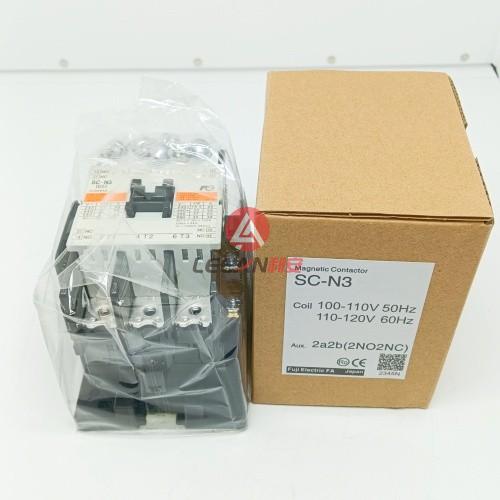

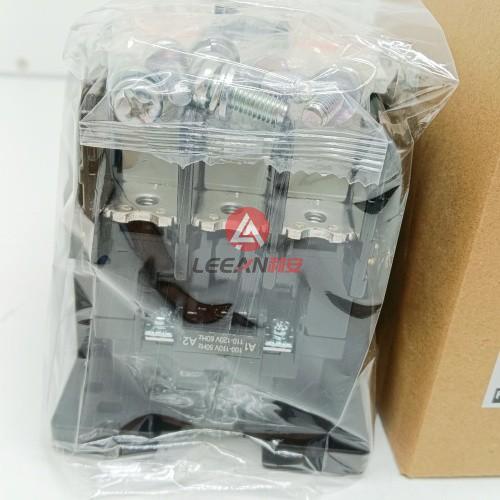

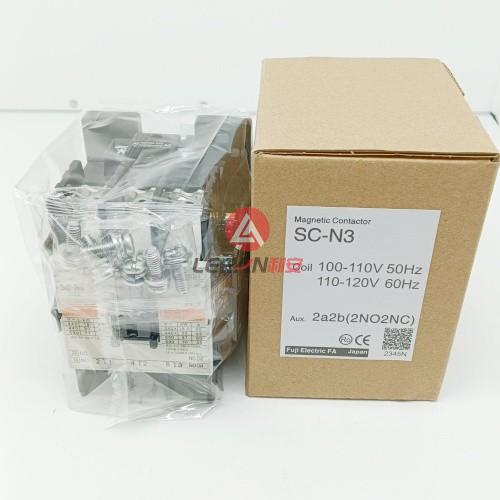

Fuji Electric Motor Control Standard type AC Magnetic Contactor SC-N3 Coil Voltage 110V New
Overview

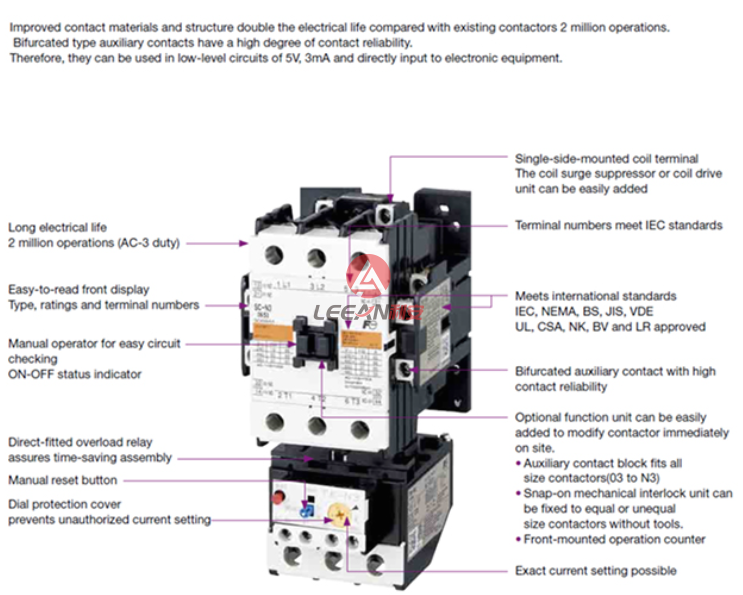

The SC series is a range of long service-life and high-performance contactors. SC-03 to SC-N3 smallframe contactors provide snap-on fitting of numerous optional units, such as auxiliary contact blocks, coil surge suppressors, and operation counters.
Field modifications are quick and easy.
Type SC-N6 and above contactors come with an IC-controlled SUPER MAGNET coil, which operates from both AC and DC sources, to prevent burnt coils and contact chattering by voltage fluctuation.
Details
100-110V 50Hz
110-120V 60Hz
Brand:
FUJI
Product Name:
Magnetic Contactor
Model
SC-N3
Coil Voltage
Aux
2a2b（2NO 2NC)
Country of Origin
Japan
Weight
2KG
More Contactors
SC-N1
SC-N2
SC-N2S
SC-N3
SC-N1/G
SC-N2/G
SC-N2S/G
SC-N3/G
SC-N4
SC-N4/SE
SC-N5
SC-N4【80】
SC-N4/SE【80】
SC-N5【93】
SC-N6【125】
SC-N7【152】
SC-N8【180】
SC-N10【220】
SC-N11【300】
SC-N12【400】
SC-N14【600】
SC-N16【800】
SC-N5A【93】
SC-E02
SC-E03
SC-E04
SC-E05
SC-E02P
SC-E03P
SC-E04P
SC-E05P
SC-E02A 13NO
SC-E03A 13NO
SC-E04A 13NO
SC-E05A 13NO
SC-E1P
SC-E2P
SC-E2SP
SC-E3P
SC-E4P
SC-E02A 21NC
SC-E03A 21NC
SC-E04A 21NC
SC-E05A 21NC
When you ask for the price, pls advice the coil voltage.
