Turck 1-channel Rotational Speed Monitor IM21-14-CDTRI Drehzahlwachter 7505650 20-250V New

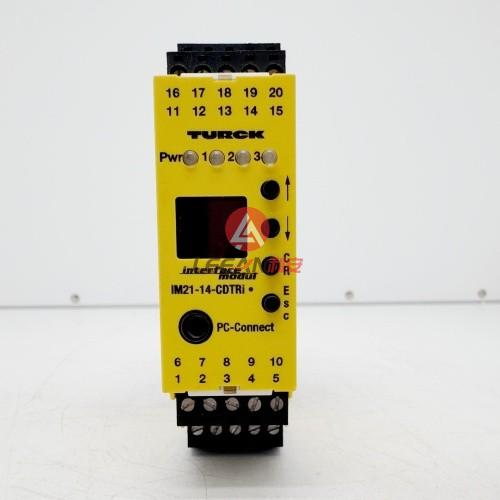

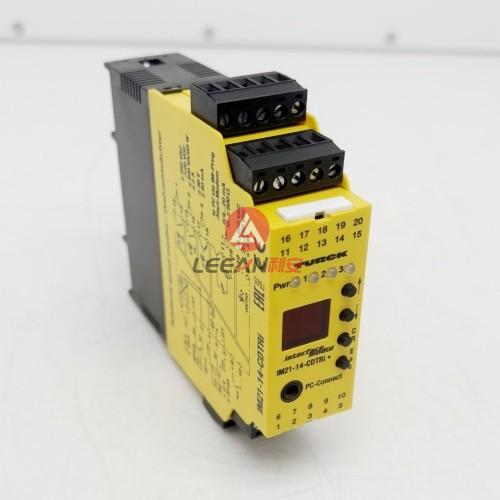

Overview
The rotation speed monitor IM21-14-CDTRI analyses frequencies, rotation speeds and pulse trains of rotating motor, gear or turbine parts according to over or undershoot of adjusted limit values. A display at the front indicates the current value.
If NAMUR sensors are connected, the line is monitored according to wire-break and/or short-circuit. In case of input circuit error the relays drop out, the transistor is inhibited and the power LED (Pwr) changes to red.
The device can be parametrized and configured via PC (FDT/DTM). For this, connect the device to the PC via the 3.5 mm jack plug at the front (the matching transmission cable IM-PROG III can be ordered separately from TURCK). A basic scope of parameters can be set via buttons and display at the front or remotely via the current interface and HART.
At each of the two relay outputs a predefined limit value can be monitored. The two relays also monitor overshoot/undershoot of window limits. The transistor output can also be used as a pulse divider. The measured value is permanently written to a ring memory with space for 8000 values. The writing process is stopped with a predefined trigger event, like for example "excess of limit value". After that, the stored signal sequence can be read out.
A switching hysteresis is defined by setting a switch-on and off point. A switch-off delay can also be set to avoid shut down due to sudden frequency hops.
Features
Monitoring of limit values and ranges according to over/underrange
Operating range 0.06 … 600000 min-1
Connection of sensors acc. to EN 60947‐5‐6 (NAMUR), 3-wire sensors and external power supplies
Pulse output
Parameterized via PC (FDT/DTM), front-panel switch and HART
Ring buffer for up to 8000 measured values
Display
Complete galvanic isolation
Input reverse-polarity protected
TR CU
Specification:
Brand
TURCK
Product
Rotational Speed Monitor
Model
IM21-14-CDTRi
Order No.
7505650
Nominal voltage
Universal voltage supply unit
Operating voltage
20…250 VAC
Frequency
40…70 Hz
Operating voltage range
20…250 VDC
Power consumption
3W
Made in
Germany
Condition
NEW
Weight
247g
Other Similar items
IM12-22EX-R
IM1-22EX-R
IM1-22EX-T
IM1-451EX-R
IM1-451EX-T
IM1-451EX-R/T
IM21-14-CDTRI
IM21-14EX-CDTRI
IM31-11EX-I
IM31-12-I
IM31-22EX-I
IM33-11EX-HI/24VDC
IM33-12EX-HI/24VDC
IM33-22EX-HI/24VDC
IM1-451EX-R 24VDC
IM34-11EX-CI
IM34-12EX-CRI
IM35-11EX-HI/24VDC
IM35-22EX-HI
IM35-22EX-HI/24VDC
IM73-12-R/24VDC
If you need other TURCK products,pls feel free to contact us.

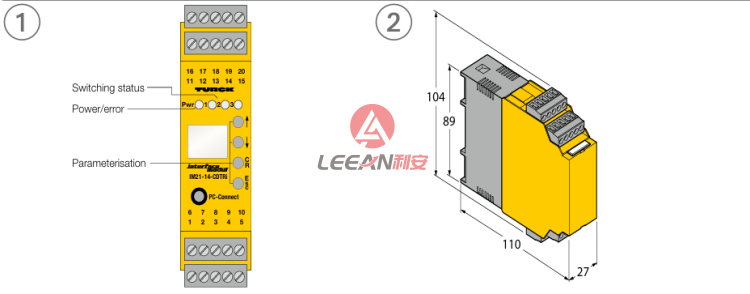

Drawings

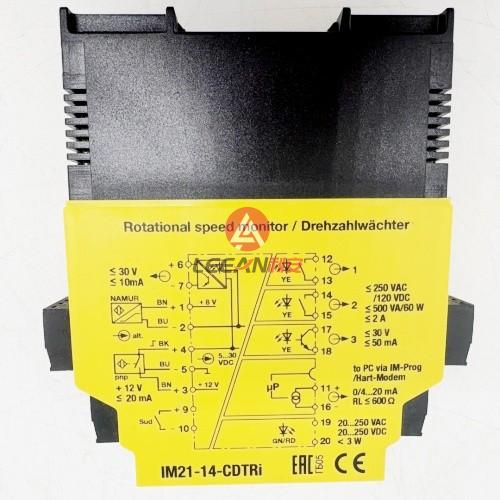

Wiring Diagram
