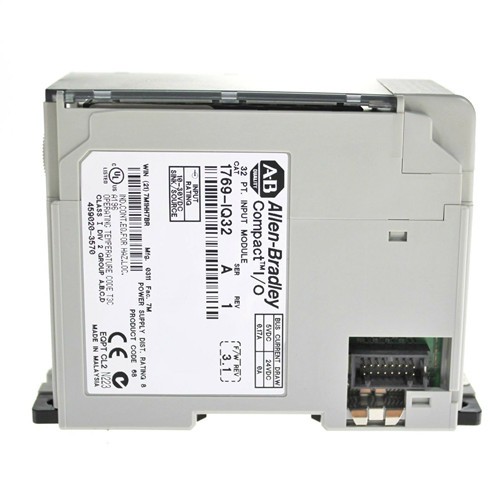

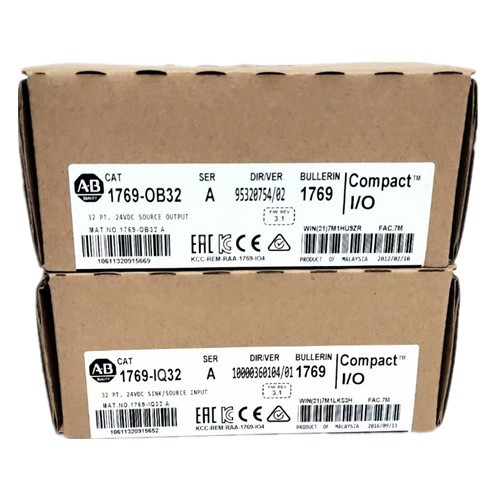

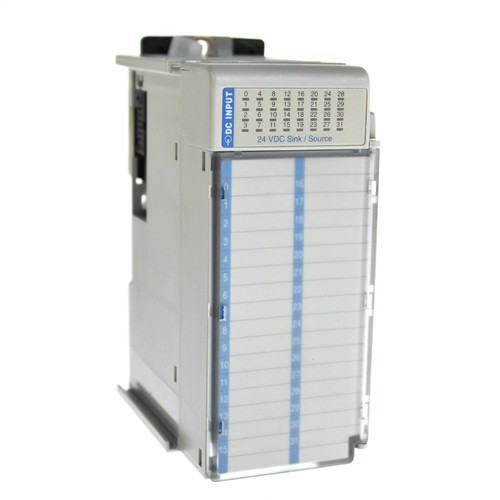

AB Allen-Bradley Compact 24Vdc Sink Source 1769-IQ32 Digital Input Module 32 Pt
  1. AB Allen-Bradley Compact 24Vdc Sink Source 1769-IQ32 Digital Input Module 32 Pt
  2. AB Allen-Bradley Compact 24Vdc Sink Source 1769-IQ32 Digital Input Module 32 Pt
  3. AB Allen-Bradley Compact 24Vdc Sink Source 1769-IQ32 Digital Input Module 32 Pt

AB Allen-Bradley Compact 24Vdc Sink Source 1769-IQ32 Digital Input Module 32 Pt

Compact intput Module  , 1769 I/O modules  , Digital Input Output Module
Send Inquiry Live chat

Description

AB Allen-Bradley Compact 24Vdc Sink Source 1769-IQ32 Digital Input Module 32 Pt



Technical Datasheet of Input Module 1769-IQ32

Attribute
1769-IQ32
Inputs
32 (8 points/group)
Voltage category
24V DC sink/source
Operating voltage range
10…30V DC @ 30 °C (86 °F)
10…26.4V DC @ 60 °C (140 °F)
Input delay, on
8 ms
Input delay, off
8 ms
Current draw @
5.1V 170 mA
Heat dissipation, max
4.6 W
Off-state voltage, max
5V DC
Off-state current, max
1.5 mA
On-state voltage, min
10V DC
On-state current, min
2 mA
Inrush current, max
250 mA
Input impedance, nominal
5.2 kW @ 24V DC
6.1 kW @ 30V DC
Isolation voltage
Verified by one of these dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, input point to bus and
group to group
75V DC working voltage (IEC Class II reinforced insulation
Weight, approx
440 g (0.97 lb)

The 1769 Compact I/O modules can be used in these applications:

1) With a 1769 CompactLogix controller
2) For expansion I/O in a MicroLogix 1500 controller assembly
3) In an assembly with a 1769-ADN DeviceNet adapter
4) In an assembly with a 1769-AENTR Ethernet adapter

Controller:

1769-L24ER-QB1B,1769-L24ER-QBFC1B,1769-L27ERM-QBFC1B,1769-L30ER,1769-L30ERM,1769-L30ER-NSE,1769-L33ER ,1769-L33ERM,1769-L36ERM ,

1769-L23E-QB1B,1769-L23E-QBFC1B,1769-L23-QBFC1B,1769-L23E-QB1B ,1769-L35CR,1769-L35E ,1769-L32C ,1769-L32E,1769-L31,1768-L43 ,1768-L45


Each 1769 Compact I/O module has a distance rating. In 1769 systems, the distance rating is the number of modules between the specific module and the 1769 power supply. In a 1768 system, the distance rating is the number of modules between the specific I/O module and the 1768 controller.




Available 1769 Compact I/O Modules

I/O Type
Models of Modules
AC digital
1769-IA8I
1769-IA16
1769-IM12
1769-OA8
1769-OA16
DC digital
1769-IG16
1769-IQ16
1769-IQ16F
1769-IQ32
1769-IQ32T
1769-IQ6XOW4
1769-OB8
1769-OB16
1769-OB16P
1769-OB32
1769-OB32T
1769-OG16
1769-OV16
1769-OV32T
Contact
1769-OW8
1769-OW8I
1769-OW16
Analog
1769-IF4
1769-IF4I
1769-IF4XOF2
1769-IF4FXOF2F
1769-IF8
1769-IF16C
1769-IF16V
1769-IR6
1769-IT6
1769-OF2
1769-OF4
1769-OF4CI
1769-OF4VI
1769-OF8C
1769-OF8V
Specialty
1769-ARM
1769-ASCII
1769-BOOLEAN
1769-HSC

1769-IA8I, 1769-IA16, 1769-IM12, 1769-OA8,1769-OA16, 1769-IQ16, 1769-IQ16F, 1769-IQ32,1769-IQ6XOW4, 1769-OB8, 1769-OB16, 1769-OB16P, 1769-OB32, 1769-OV16, 1769-OW8, 1769-OW8I, 1769-OW16,1769-IF4, 1769-IF4XOF2, 1769-IR6, 1769-IT6,1769-ARM, 1756-HSC,1769-IG16, 1769-IQ32T, 1769-OB32T,

1769-OG16, 1769-OV32T,1769-IF4I, 1769-IF8, 1769-IF16C, 1769-IF16V, 1769-OF2, 1769-OF4CI, 1769-OF4VI, 1769-OF8C, 1769-OF8V, 1769-IF4FXOF2F
1769-ASCII, 1769-BOOLEAN


I/O Module Overview
Each I/O module includes a built-in removable terminal block with finger-safe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.
