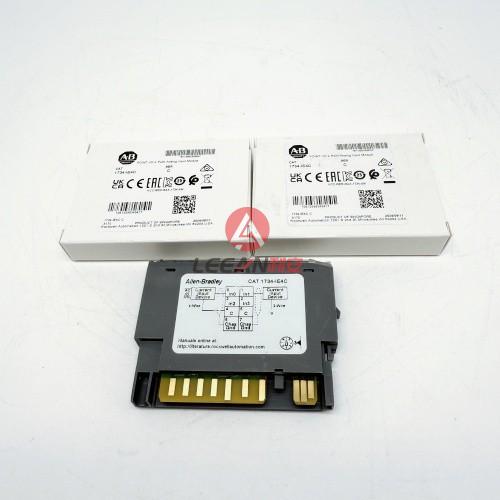

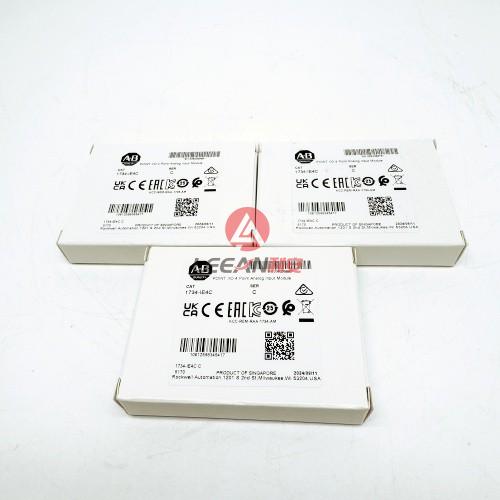

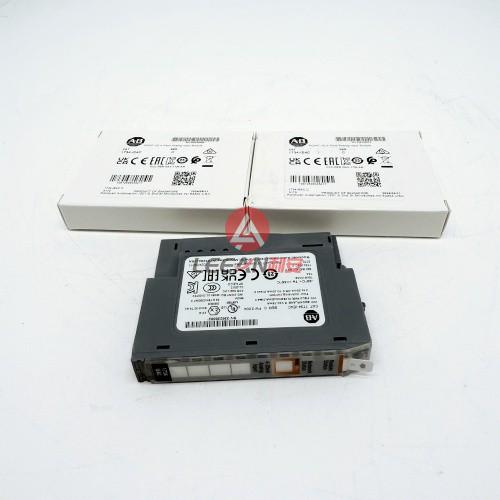

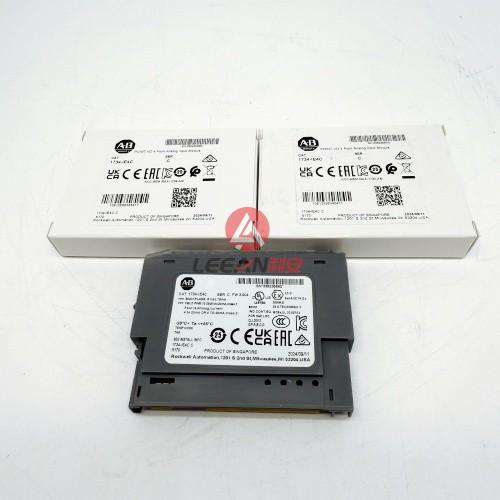

AB Allen Bradley POINT I/O 4 Channel Analog Input Module 1734-IE4C PLC Input Output Modules New
Overview
The Allen-Bradley 1734-IE4C is an analog input module of the Point I/O series of Rockwell Automation, designed for industrial automation control. The module supports high-density current input, has channel-level diagnostics and alarm functions, and is widely used in scenarios that require accurate analog signal acquisition and processing.
I/O Module, 2 Single Ended Outputs, 75 mA Pointbus Current
POINT I/O is a family of modular I/O products ideal for applications requiring flexibility and low cost of ownership. With one to eight channel density modules, including a self-configuring discrete module, the modularity of POINT I/O minimizes system costs and size. The ability to mix standard and safe I/O provides even greater flexibility and opportunities for standardization, regardless of application requirements. Since it can be used in local and remote I/O, POINT I/O further reduces engineering costs in design, installation and application development.
Features
Input, output, and relay output modules
Wide variety of voltages
Point-level output fault states for short-circuit and wire off diagnostics
Field-side diagnostics on select modules
Choice of direct-connect or rack-optimised communications
POINT Guard I/O™ modules for safety applications
Configurable modules - each point can be configured as a DC input or output
DeviceLogix technology available
Details
1734-IE2CK
1734-IE2VK
1734-IE2C
Manufacturer
AB Allen Bradley
Part Number/Catalog No.
1734-IE4C
Specifications
Product Series:Point I/O (Bul. 1734) Number of outputs: 4 analog, single-ended, non-isolatedTerminal base: 1734-TB3, 1734-TB3S wiring base assembly
POINT Bus current, max: 75 mA
Power dissipation, max: 0.55 W @ 28.8V DC
Thermal dissipation, max: 2.0 BTU/hr @ 28.8V DC
Supply voltage, backplane: 5V DC
Supply voltage range, field power input: 10…28.8V DC, 20 mA, Class 2
Input current: 4…20 mA or 0…20 mA
Isolation voltage: 50V, tested @ 1500V AC for 60 s, inputs, and field power to system
No isolation between individual inputs or inputs to field powe
Weight
0.2KG
Condition
New Original
Catalog Numbers
1734-IE4C, 1734-IE4CK,1734-OB2, 1734-OB4, 1734-OB4K, 1734-OB8, 1734-OB8K
