• WAGO AC/DC DIN Rail Power Supply Module 787-732 EPSITRON ECO Primary Switched-mode PSU New

• ---

Overview

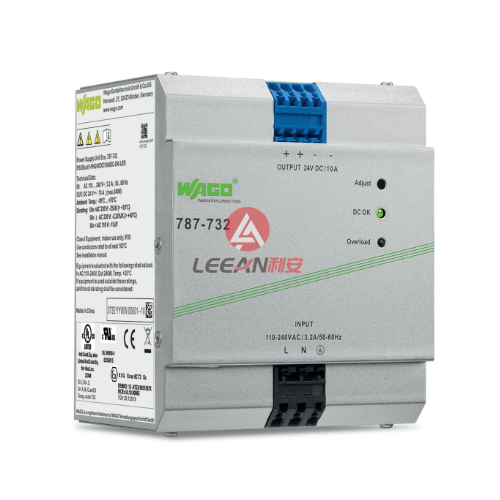

The 787-732 is a 1-output DIN rail mount EPSITRON® ECO primary switched-mode Power Supply enclosed for use in switchgear cabinets. It features natural convection cooling when horizontally mounted, short-circuit protection and overvoltage protection via varistor at primary circuit. An external DC fuse is required for the DC input voltage.

---

Features

Primary switch mode
Prepared for class I equipment
Parallel operation, series connection possible
82% Typical efficiency
IP20 (according to EN 60529) Protection rating
37.5W Power loss (at 230VAC and 10ADC)
1% Adjustment accuracy
No-load proof

---

Applications

Power Management

---

Specification

Brand:	WAGO
Product Name:	Power Supply
Model:	787-732
Condition:	New
Weight (kg):	1.2kg
Specifications:	Power supply; Eco; 1-phase; 24 VDC output voltage; 10 A output current; DC-OK LED; 4,00 mm²
Mounting	Accessories > Item no. 209-109 Edge guards; for DIN 35 rail (7.5 mm high); gray Accessories > Item no. 209-137 Mounting adapter; can be used as end stop; 6.5 mm wide; gray Rail-Mount Terminal Blocks > Item no. 249-116 Screwless end stop; 6 mm wide; for DIN-rail 35 x 15 and 35 x 7.5; gray Rail-Mount Terminal Blocks > Item no. 249-117 Screwless end stop; 10 mm wide; for DIN-rail 35 x 15 and 35 x 7.5; gray Accessories > Item no. 249-197 Screwless end stop; 14 mm wide; for DIN-rail 35 x 15 and 35 x 7.5; gray
Similar Items	787-1664 787-1602 787-1668 787-1621 787-3664 787-1712（2.5A 24V) 787-1722（5A） 787-1732（10A） 787-712（2.5A 24V） 787-722（5A 24V） 787-732（10A 24V） 787-734（20A 24V） 787-736（40A 24V） 787-738（6.25A 24V) 787-862   787-831 787-870  787-871  787-872  787-873 787-740 787-3668 787-1628 787-850 787-2861/108-020 787-1662/0000-0054 787-1664/000-250 787-1664/000-004 787-1664/000-100 787-1664/006-1000 787-1664/000-011 787-3861/108-020 2587-2144（5A 24V）  2587-2146（10A 24V）  2587-2147（20A 24V）
RAIL	210-113 210-114 210-112 210-197 210-112 210-197 210-115
Digital Input Output I/O Modules	750-352 750-430 750-530 750-498 750-559 750-555 787-732 750-638 750-631 210-113 750-343 750-460 750-465 750-467 750-461/000-003 750-461 750-469 750-1405 750-515 750-600 859-304 750-516 750-517 750-553 750-554 750-563 750-585 750-672 750-673 750-636 750-632 750-650 750-653 750-653/003-000 750-652 750-651 750-642 750-643 750-655 750-658 750-660/000-001 750-665/000-001 750-663/000-003 750-606 750-625/000-001 750-624/020-000 750-626/020-000 750-1405 750-1504 750-1420 If you need other models, pls feel free to contact us.

---

Dimensions

---
