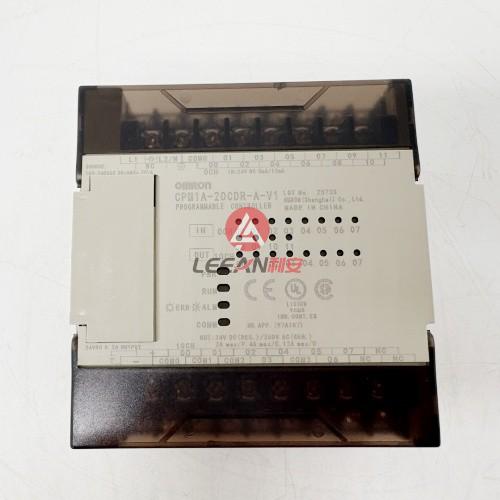

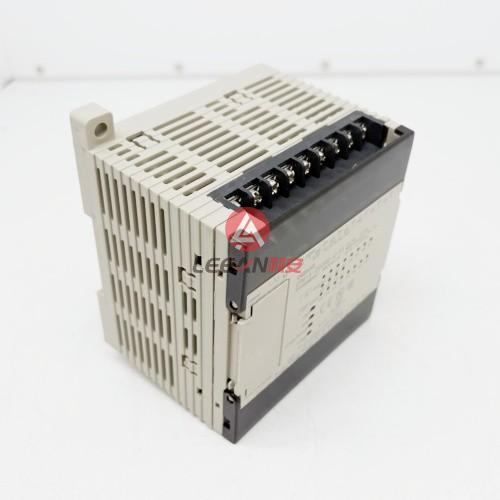

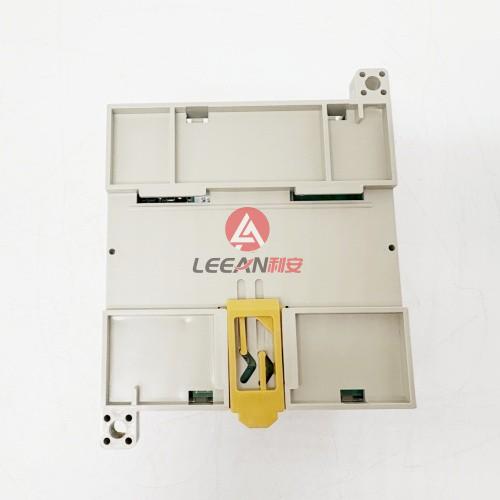

OMRON CPM1A series Micro Controllers CPM1A-20CDR-A-V1 Programmable Logic Controller 100-240VAC New
Overview
The CPM1A series micro controllers solve both basic and semi-complex applications. The brick style models include DC inputs/transistor or relay outputs to meet your design requirements. The base I/O for the CPUs ranges from 10, 20, 30, and 40 I/O points with maximum expansion to 100 I/O. Specialized expansion modules include mixed analog I/O, temperature sensor inputs and serial communications.
• 10, 20, 30 and 40 point I/O CPUs
• Expandable up to 100 I/O points
• Peripheral communications port built in
• DCinput models
• Analog expansion modules available
• Temperature sensor input expansion modules available
• Auxiliary 24 VDC supply (AC type only)
• Relay or Transistor outputs
• UL, CSA, CE approvals
Features
Setting a standard for micro PLCs, the CPM1A packs all basic functions into a compact size. Four CPU sizes are available, each with a choice of AC or DC power, relay or transistor outputs. Select any combination of power supply, output, and the number of I/O points to meet your needs.
Space-saving Integration for Compact machines and Small-scale Control cabinets
Ultracompact Size
Ten-I/O-point AC models measure only 90 mm x 66 mm x 70 mm (H x W x D), and contain all basic PLC functions.
A Wide Variety of Models Handling from 10 to 100 I/O Points

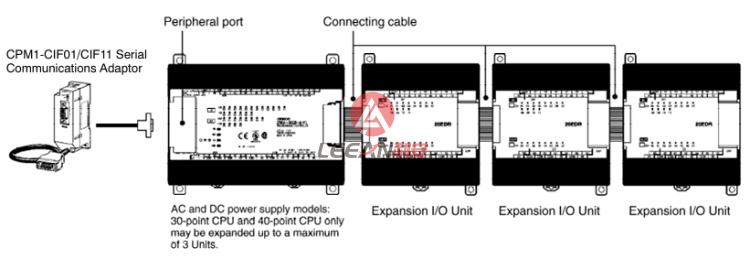

By combining CPU Units having from 10 to 40 I/O points with 20-I/O-point Expansion I/O Units, CPM1A PLCs can be configured for 10 to 100 I/O points.
Programming by Programmable Terminal
Use of the optional Communications Adapter (RS-232C or RS-422 conversion) enables fast Host Link or NT Link communications with an OMRON Programmable Terminal. This makes it possible to program the CPM1A on the PT screen, greatly simplifying maintenance tasks.
High-speed Processing
Processing is fast, e.g., 0.7-μs AND LD / OR LD and 16.3-μs MOV instructions, allowing high-speed execution of even lengthy programs. Integrated interrupt and pulse catch inputs also handle high-speed pulses that occur within one program cycle.
Versatile Functions in a Compact Body
A large program capacity and instruction list handle even complicated control tasks with ease.
• User memory: 2,048 words
• Data memory: 1,024 words
• Timer/counter: 128 points
• Basic instructions: 14 types
• Application instructions: 79 types
• Analog setting dials: 2 points (built-in)
Pulse Output
CPM1A CPU models with transistor outputs can output pulses with a maximum frequency of 2 kHz. Combining these models with a Stepping Motor Driver or Servo Driver enables easy positioning operation.
Details
| Brand | Omron |
| Type |
Programmable Logic Controller |
| Model |
CPM1A-20CDR-A-V1 |
| Condition | New |
| Net Weight | 1KG |
| Warranty | One Year |
| Specifications |
Number of Inputs and Type:12 - Digital Number of Outputs and Type:8 - Relay Expandable:Non-Expandable Voltage - Supply:100 ~ 240VAC Display Type:No Display |
