Description

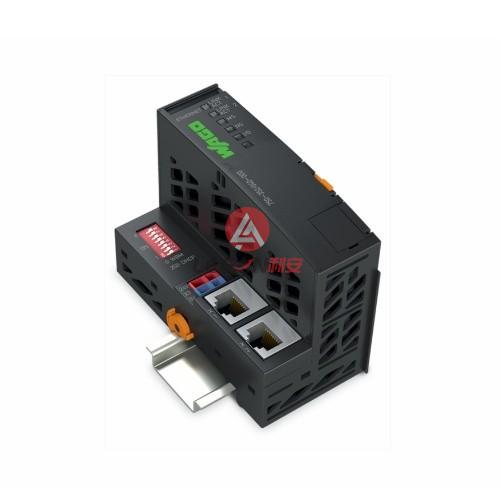

• WAGO I/O System ETHERNET Fieldbus Coupler 750-352 Profinet 2 Port Switch 100 mBit 24VDC New

• ---

Overview

The 750-352 ETHERNET Fieldbus Coupler connects ETHERNET to the modular WAGO I/O System.

The fieldbus coupler detects all connected I/O modules and creates a local process image. This process image may include a mixed arrangement of analog (word-by-word data transfer) and digital (bit-by-bit data transfer) modules.

Two ETHERNET interfaces and an integrated switch allow the fieldbus to be wired in a line topology, eliminating the need for additional network devices, such as switches or hubs. Both interfaces support autonegotiation and Auto-MDI(X).

The DIP switch configures the last byte of the IP address and may be used for IP address assignment (DHCP, BootP, static).

The coupler is designed for fieldbus communication in both EtherNet/IP and MODBUS networks. It also supports a wide variety of standard ETHERNET protocols (e.g., HTTP, BootP, DHCP, DNS, SNMP, FTP). An integrated Webserver provides user configuration options, while displaying the coupler's status information.

The system supply is provided directly by the coupler. The field supply is provided via a separate supply module.

---

The device is ideal for operation in extreme environments thanks to:

An extended temperature range
Greater immunity to impulse voltages and electromagnetic interference
Higher vibration and shock resistance

---

Applications

Industrial

---

Specification

Brand:	WAGO
Product Name:	Fieldbus Coupler
Model:	750-352
Condition:	New
Weight (kg):	0.5kg
Specifications:	Fieldbus Coupler ETHERNET; 3rd Generation; Extreme
WAGO 750 Modules	750-307 750-333 750-806 750-337 750-842 750-310 750-348 750-343 750-455 750-559 750-600 750-602 750-612 750-601 750-430 750-530 750-559 750-453 750-530 750-512 750-517 750-555 750-502 750-513 750-514 750-400 750-511 750-461 750-468 750-460 750-455 750-1504 750-497 750-597 750-459 750-960 750-961 750-962 750-963 750-965 750-600 859-304 750-971 750-1405 750-1504 750-1505 750-1407 750-1415 750-1420 750-1515 750-1400 750-1500 750-1501 750-1606 750-1605 750-1607 750-502/006-000 750-514/006-000
Power Supply Module	787-1664 787-1602 787-1668 787-1621 787-3664 787-1712（2.5A 24V) 787-1722（5A） 787-1732（10A） 787-712（2.5A 24V） 787-722（5A 24V） 787-732（10A 24V） 787-734（20A 24V） 787-736（40A 24V） 787-738（6.25A 24V) 787-862 787-831 787-870 787-871 787-872 787-873 787-740 787-3668 787-1628 787-850 787-2861/108-020 787-1662/0000-0054 787-1664/000-250 787-1664/000-004 787-1664/000-100 787-1664/006-1000 787-1664/000-011 787-3861/108-020 2587-2144（5A 24V） 2587-2146（10A 24V） 2587-2147（20A 24V）
RAIL	210-113 210-114 210-112 210-197 210-112 210-197 210-115
Digital Input Output I/O Modules	750-352 750-430 750-530 750-498 750-559 750-555 787-732 750-638 750-631 210-113 750-343 750-460 750-465 750-467 750-461/000-003 750-461 750-469 750-1405 750-515 750-600 859-304 750-516 750-517 750-553 750-554 750-563 750-585 750-672 750-673 750-636 750-632 750-650 750-653 750-653/003-000 750-652 750-651 750-642 750-643 750-655 750-658 750-660/000-001 750-665/000-001 750-663/000-003 750-606 750-625/000-001 750-624/020-000 750-626/020-000 750-1405 750-1504 750-1420 If you need other models, pls feel free to contact us.

---

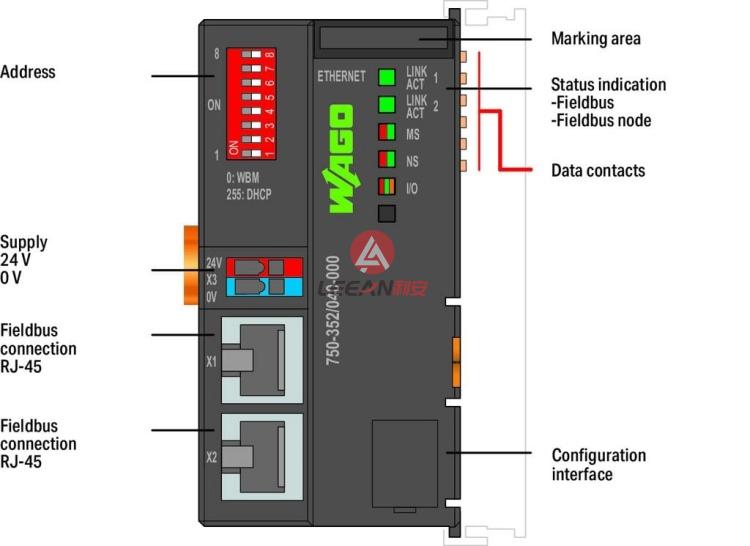

Drawing

---
