Description

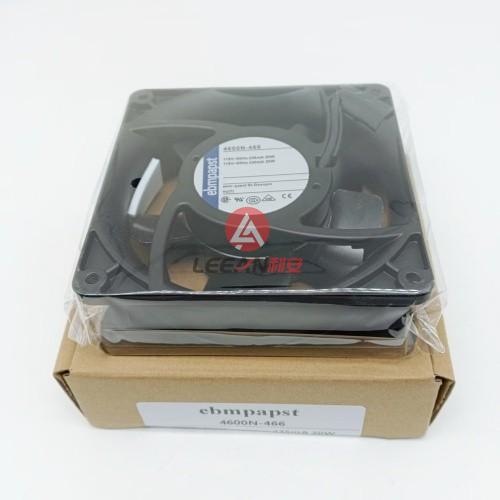

EBMPAPST Square AC Motor Tubeaxial Fan 4600N-466 Blower Cooling Fans 115V 20W New
Overveiw
4600N-466 AC Axial Fan
119mm axial fan with high air flow and minimum noise level. Aerodynamically shaped, all metal construction. Driven by shaded pole motor. External rotor dynamically balanced in two planes. 5 fan blades made of sheet steel directly welded to the rotor. Air intake over struts, Rotational direction CW looking
at rotor.
Features
Protected against overload (impedance protection).
For maintenance-free continuous operation.
Any mounting position.
Electrical connection via luster terminal.
Specificatiopns
| Brand | EBMPAPST |
| Model | 4600N-466 |
|
Weight |
0.550 kg |
|
Dimensions |
119 x 119 x 38 mm |
|
Impeller material |
Sheet steel, painted black |
|
Housing material |
Die-cast aluminum |
| Shape |
Square |
|
Direction of rotation |
Clockwise, viewed toward rotor |
|
Storage |
Sintec sleeve bearing |
|
Approval |
VDE, CSA, UL, CE |
| Similar Axial Fans |
4656N 4656X 4656Z 4656X 4656ZH 4656NU 4650N-465 4650A 4650N 4650Z 4650X 4650ZW 4650N-465 4650N-465/A01 4650N-465/A02 4650N-465/A06 4658N 4665Z 4580N 4550N 4500N 4600X 4600Z 4600N-466 4606N 4606-465 4606X 4606Z
4658N |

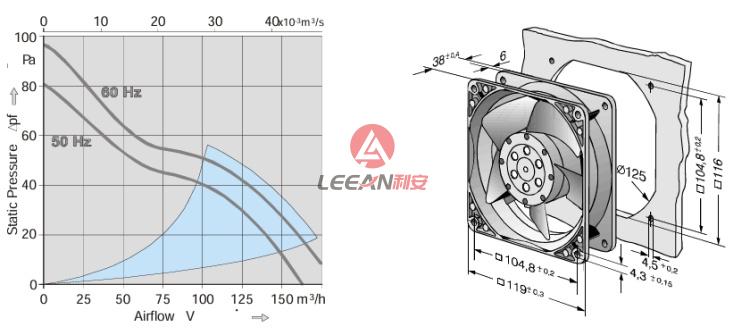

Product Drawing
