Description

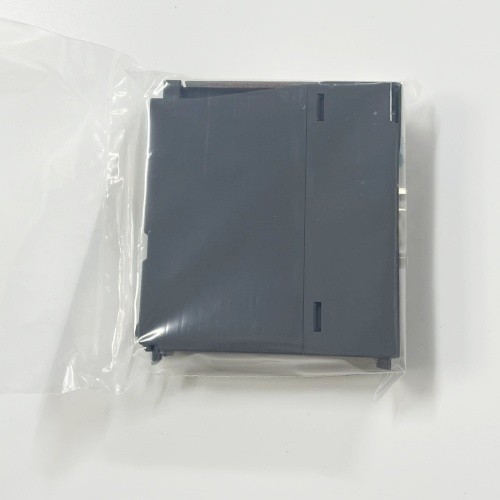

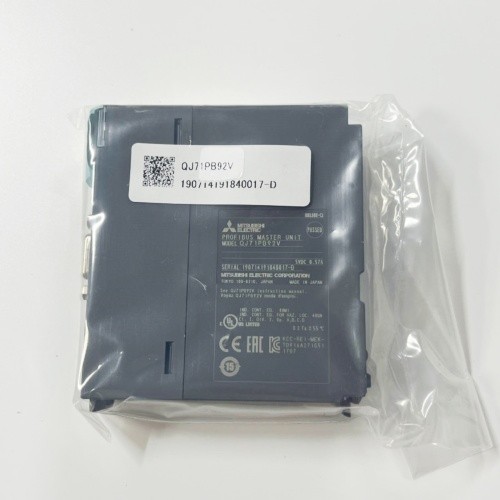

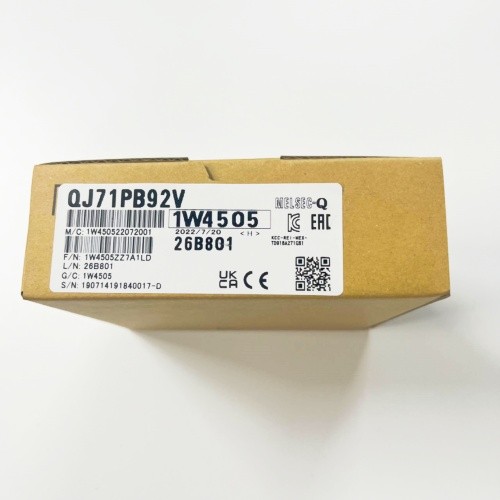

Mitsubishi Network Communication Module QJ71PB92V PROFIBUS-DP Master Module New
Product Details:
| Manufacture: |
Mitsubishi Electric |
|
Product No. : |
Q71PB92V |
|
Product type : |
Master Module |
|
PROFIBUS-DP station type: |
DP-Master (Class 1) |
|
Electrical standard/characteristics: |
EIA-RS485 compliant |
|
Transmission speed: |
9.6 kbps...12 Mbps |
|
Maximum number of repeaters : |
3 repeaters |
|
Number of occupied I/O points: |
32 points (I/O assignment: Intelligent 32 points) |
|
Weight : |
0.13 kg |
MELSEC iQ-R Series
The core for next-generation automation environment.
To succeed in highly competitive markets, it's important to build automation systems that ensure high productivity and consistent product quality.
MELSEC iQ-R is taking a three-point approach to solving these problems: Reducing TCO, increasing Reliability and Reuse of existing assets.
Related PLC Modules
Power Supply Model
Specifications
Q61P
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 6 A
Q62P
Input voltage: 100…240 V AC, output voltage: 5/24 V DC, output current: 3/0.6 A
Q63P
Input voltage: 24 V DC, output voltage: 5 V DC, output current: 6 A
Q64PN
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 8.5 A
Q61P-D
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 6 A
Q61SP
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 2 A
Q63RP
Input voltage: 24 V DC, output voltage: 5 V DC, output current: 8.5 A
Q64RPN
Input voltage: 100…240 V AC, output voltage: 5 V DC, output current: 8.5 A
Overview:
The QJ71PB92V is used for connecting MELSEC-Q Series programmable controllers to PROFIBUS-DP.
The QJ71PB92V operates as a DP-Master (Class 1) on PROFIBUS-DP networks.

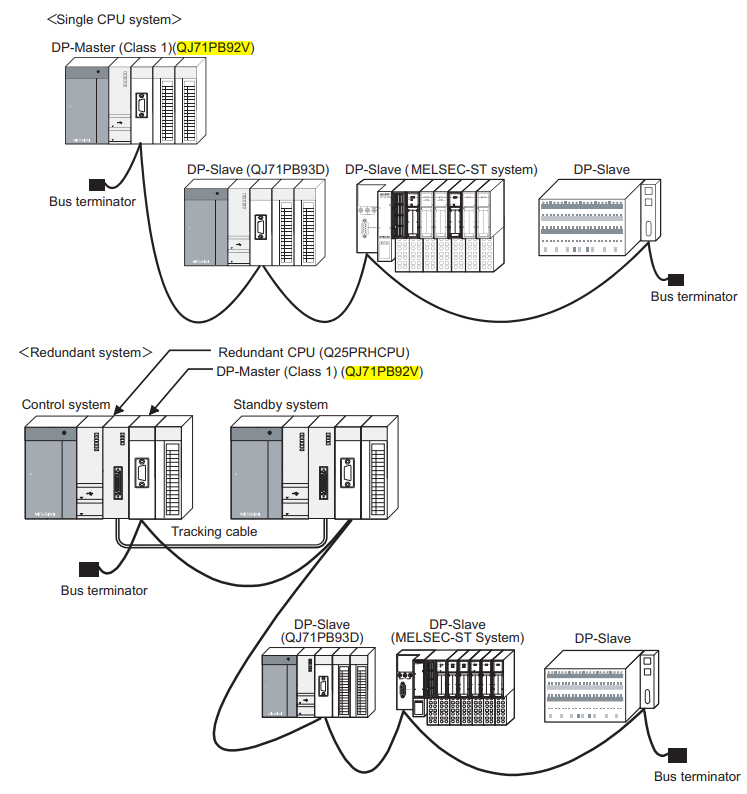

Figure 1.1 PROFIBUS-DP Using QJ71PB92V
