Description
AB Allen Bradley Point I/O 4 Point Analog Output Module 1734-OE4C PLC Input Output Modules New
Overview

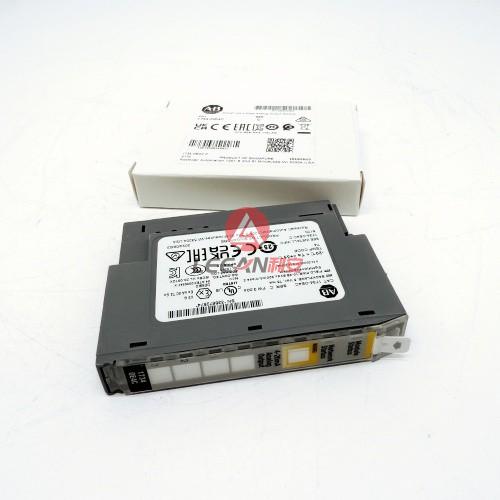

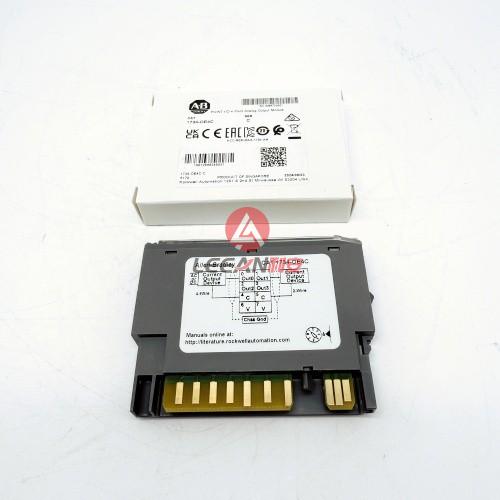

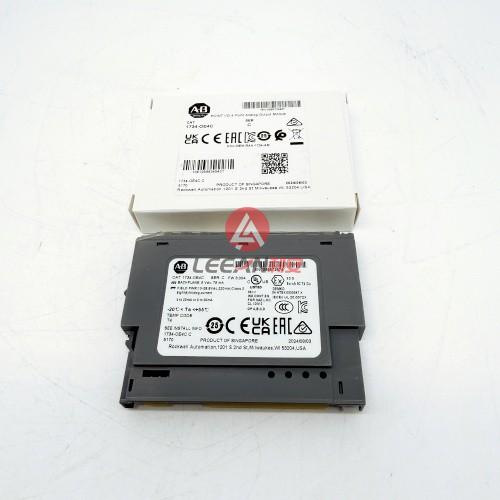

The Allen-Bradley 1734-OE4C is a POINT I/O Analog Output Module. It has Four (4) single-ended, non-isolated, Current output module with Current range of 4 to 20 mA or 0 to 20 mA. It has an integrated Digital to Analog converter with conversion resolution of 16 Bits and absolute accuracy of 0.4% (0.1% if calibrated).
I/O Module, 2 Single Ended Outputs, 75 mA Pointbus Current
POINT I/O is a family of modular I/O products ideal for applications requiring flexibility and low cost of ownership. With one to eight channel density modules, including a self-configuring discrete module, the modularity of POINT I/O minimizes system costs and size. The ability to mix standard and safe I/O provides even greater flexibility and opportunities for standardization, regardless of application requirements. Since it can be used in local and remote I/O, POINT I/O further reduces engineering costs in design, installation and application development.
Features
Input, output, and relay output modules
Wide variety of voltages
Point-level output fault states for short-circuit and wire off diagnostics
Field-side diagnostics on select modules
Choice of direct-connect or rack-optimised communications
POINT Guard I/O™ modules for safety applications
Configurable modules - each point can be configured as a DC input or output
DeviceLogix technology available
Details
Resolution current:
16 bits – over 0…21 mA
0.32 μA/cnt
Output current terminal:
0 mA output until communication established
4…20 mA user configurable
0…20 mA user configurable
1734-IE2CK
1734-IE2VK
1734-IE2C
Manufacturer
AB Allen Bradley
Part Number/Catalog No.
1734-OE4C
Specifications
Product Series:Point I/O (Bul. 1734) Number of outputs: 4 analog, single-ended, non-isolated
Weight
0.2KG
Condition
New Original
