Emerson Universal Driver Module EXD-U01 Electronic Expansion Stepper Motor Valve Driver PCN 804 750 New
Overview:

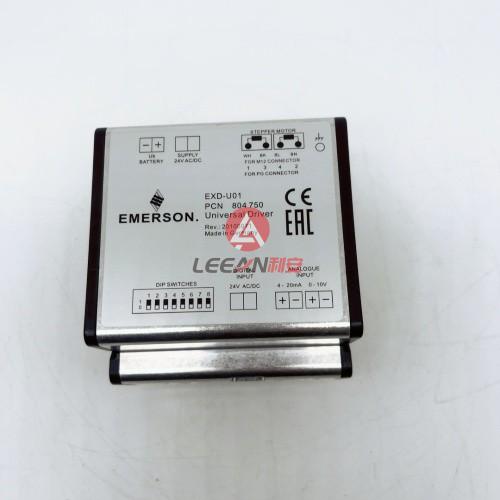

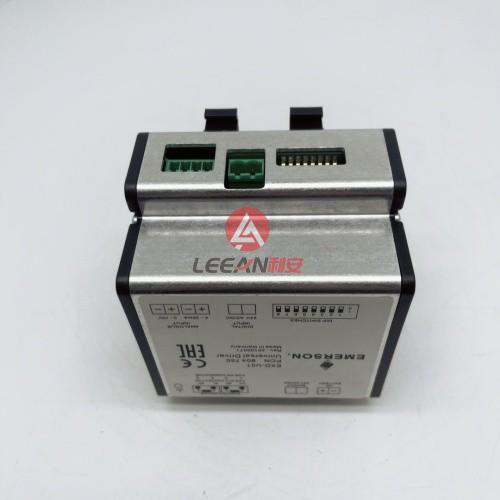

EXD-U01 Universal Driver Module
The EXD-U01 is a universal driver that enables the operation of Emerson EX4 - EX 8 stepper motor driven valves used in applications such as solenoid valves, electronic expansion valves, hot gas bypass or
evaporator pressure regulator as capacity control, crankcase pressure regulator, heat reclaim regulator, and liquid level control.
Stepper motor valve driver specifically designed for the Emerson EX and CX Series of electrical control valves in applications such as:
• Capacity control by means of hot gas bypass
• Evaporating pressure regulator or crankcase pressure regulator
• Hot gas flow such as heat reclaim
• Condensing pressure regulation and liquid duty
• Refrigerant mass flow control in CO2 transcritical systems
Features
• Plug and play, no parameter settings required
• Valve opening proportional to 4-20mA or 0-10V analogue input signal
• Digital input can be used to force valve closing
• Dip-switches for selection of Electrical Control Valves, analog input

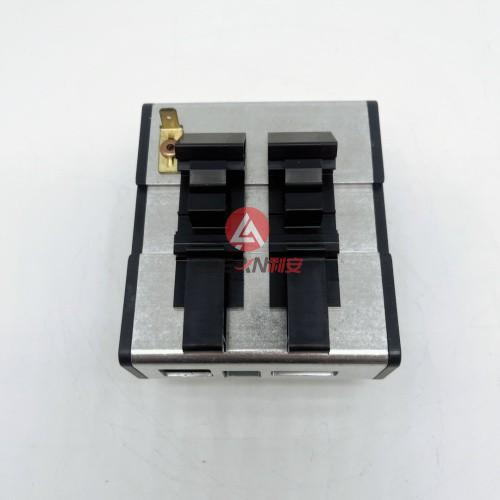

• Aluminum housing for DIN rail mounting
• Easy wiring
• Fully tested and ready for operation
• CE-marking for electromagnetic compatibility
Options
• Uninterruptible Power Supply ECP-024 to automatically close valve after power down
| Brand | Emerson |
| Product |
Emerson Universal Driver |
| Model |
EXD-U01 PCN 804 750 |
| Specifications |
Supply voltage...24 VAC ±10%, 50-60 Hz Note: ...24 VDC supply voltage can be used but it results to lower MOPD and it needs to be verified by system manufacturer Supply current..To be protected by a 1.0A external fuse Power,consumption ...10VA in conjunction with EX valve Temperature...Storage: -4°F to 149°F (-20° C to 65°C) Operating: 32°F to +140°F (0°C to 60°C) Humidit...< 90% R.H. non condensing Approvals..EMC EN 61326-1, EN50081, EN50082 Marking ..CE, EAC Protection class...IP20 Input analogue signal....4-20 mA or 0-10V Digital input ...24V AC ±10%, 50-60Hz, 24V DC ±10% Connection to EX4-8 ...Via 4 wires cable, AWG 20/22 Connector...Screw terminals for wire size 0.5-2.5 mm2 Mounting...DIN rail mounted Housing ..Aluminum |
| Country of Origin | Germany |
| Condition: | New Original |
|
Other Universal Driver Module: |
EXD-U00 EXD-U01 EXD-U02 PCN 804 752 EC3-X33 PCN 807 783 EXD-SH1 EXD-SH2 EXO-001 ECD-002 PCN 807 657 EXD-U02 ECN-N60 ECN-N60 ECD-002 ECP-024 EX7-I12 PCN 800 624 EX8-M21 PCN 800 629 EX4-121 PCN 800 615 EX5-U21 PCN 800 618 EX2-I00 PCN801090 EX6-I21 PCN 800 620 EX7-I21 PCN 800 624 EX6-M21 EX7 EX8 EX5 EX4 If you need other models, pls feel free to contact us. |
