Mitutoyo Electronic Digital ABS Caliper 500-754-20 CoolantProof IP67 Absolute Digimatic Calipers New
Overview
The 500-754-20 Coolant-Proof Digimatic Caliper delivers accurate and repeatable inside, outside, depth, and step measurements with accuracy and unrestricted speed in an ergonomic design. The caliper’s slide and jaws are constructed of hardened stainless steel and provide an impact-resistant, easy-to-ready LCD display for durable, reliable use. The ABSOLUTE caliper can be used in workshop conditions exposed to coolant, water, dust, and oil.
Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid.
It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
Features
ABS coolant-proof caliper with dust/water protection conforming to IP67 Level. Can be used in workshop conditions
exposed to coolant, water, dust or oil. 100% air-leak test
ensures every caliper conforms to IP67.
Display readings increased 22% for improved visibility.
Easy removal of battery cap.
Extended battery life of 5 years
Easy to use — advanced ergonomic design uses only 1 button.2 buttons for in/mm models
Details
Brand:
Mitutoyo
Type
Absolute Digimatic Caliper
Part Number
500-754-20
Specifications
Range:(0 to 300) mm , (0 to 12)”
Resolution:0.01 mm , 0.0005″
Accuracy:± 0.03 mm , ± 0.0015″
Repeatability:0.01 mm , 0.0005”
Display:LCD
Length standard:ABSOLUTE electromagnetic induction linear encoder
Max. response speedU:nlimited
Dust/Water protection level:IP67
Weight
1KG
Similar Products
500-702-20 0 - 150mm
500-703-20 0 - 200mm
500-704-20 0-300mm
500-752-20 0-150mm
500-714-20 0-300mm
500-753-20 0-200mm
500-754-20 0-300mm
500-764-20 0-300mm
500-712-20 0 - 150mm
500-713-20 0 - 200mm
500-719-20 0 - 150mm
500-721-20 0 - 150mm
500-722-20 0 - 200mm
500-723-20 0 - 150mm
500-724-20 0 - 200mm
500-752-20 0 - 6"
500-753-20 0 - 8"
500-762-20 0 - 6"
500-763-20 0 - 8"
500-768-20 0 - 6"
500-769-20 0 - 6"
500-731-20 0 - 6"
500-732-20 0 - 8"
500-733-20 0 - 6"
500-734-20 0 - 8"
500-735-20 0 - 6"
500-736-20 0 - 8"
500-737-20 0 - 6"
500-738-20 0 - 8"
500-506-10 500-702-10
500-151-30 0-150mm
500-152-30 0-200mm
500-153-30 0-300mm
500-171-30 0-150mm
500-172-30 0-200mm
500-173-30 0-300mm
500-181-30 0-150mm
500-182-30 0-200mm
500-196-30 0-150mm
500-197-30 0-200mm
505-730 0-150,0.02mm
505-732 0-150,0.01mm
505-731 0-200,0.02mm
505-733 0-200,0.01mm
505-745 0-300,0.02mm
505-730 0-150,0.02mm
505-731 0-200,0.02mm
505-732 0-150, 0.01mm
505-733 0-200, 0.01mm
505-745 0-300, 0.02mm
Others
513-426-10E
513-425-10E
513-424-10E
513-415-10E
513-517E
513-414-10E
513-117
513-478-10E
513-484-10E
513-485-10E
513-444-10E
513-445-10E
513-454-10T
513-455-10E
513-304GT
513-503E
513-464-10E
513-465-10E
513-466-10E
513-501-10E
543-700B
543-710
543-710B
543-720B
543-730B
543-735B
543-701B
543-731B
543-725B
293-240-30 IP65
293-340-30

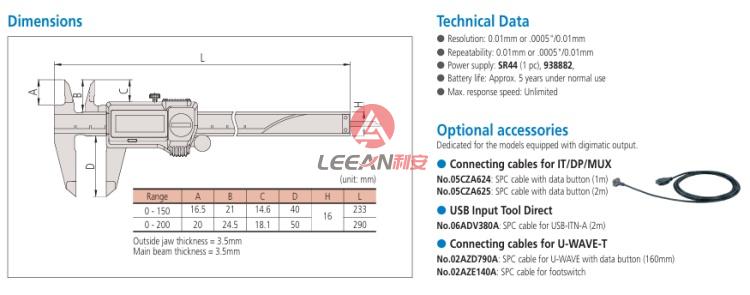

Dimensions
