Description
-

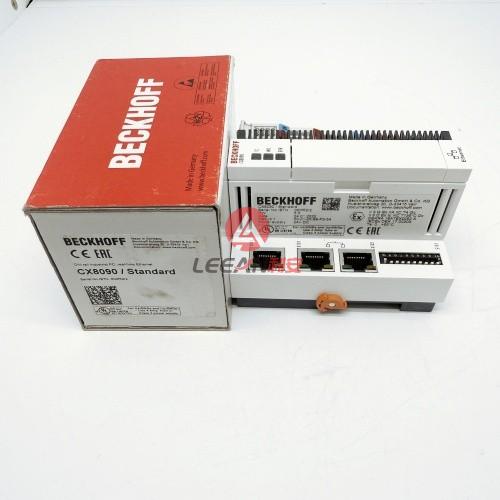

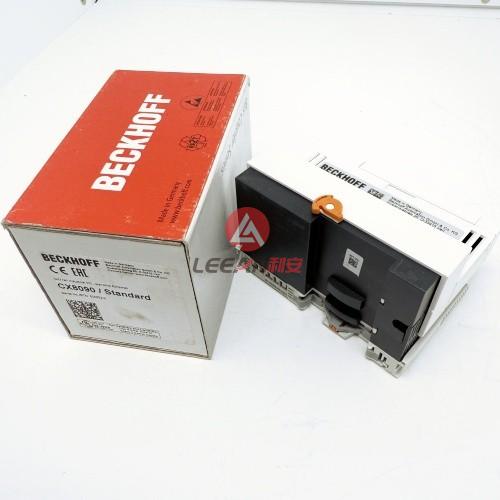

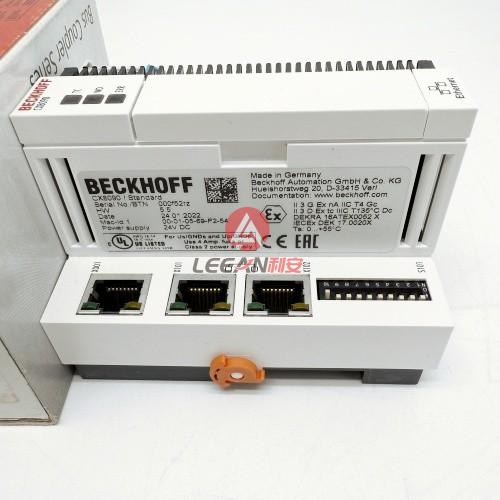

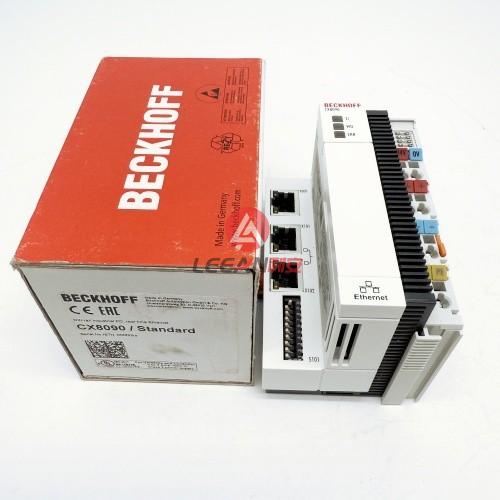

Beckhoff Embedded PC Controller CX8090 Control System with Switched Ethernet Port New
- Overview:
-
CX80xx is a device family of programmable controllers with 32-bit ARM-based CPU, which can be used for processing of PLC programs or as slave devices for higher-level fieldbus systems. Unlike with the non programmable EtherCAT couplers of the EK series, which only act as gateway between the associated fieldbus system and the connected EtherCAT terminals, the CX80xx is programmable and able to run its own control program.

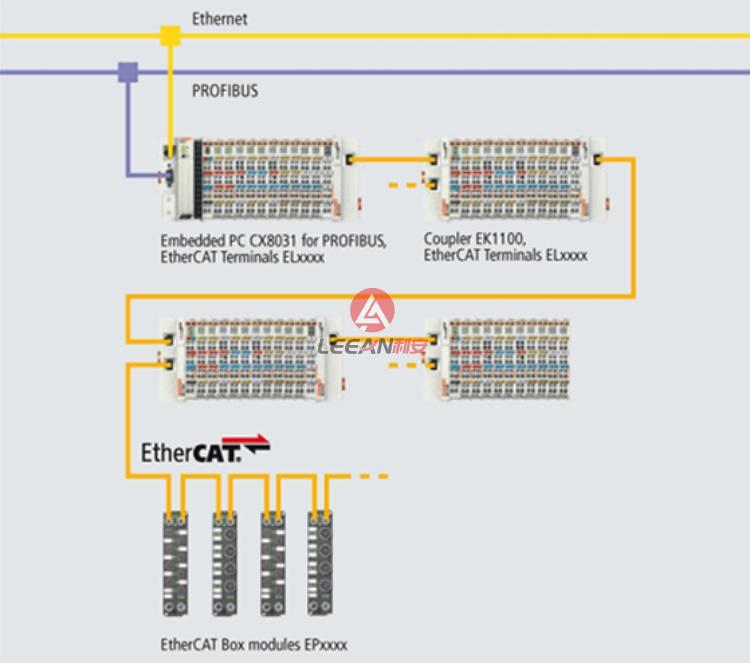

The devices from the CX80xx series represent a further development of the well-known and proven 16-bit microcontroller-based Bus Terminal Controllers from the BC and BX series including more efficient 32-bit processors. As with the BC/BX, it is also ensured in the case of the CX80xx that the control and the local program continue to be executed in the case of interruption of the higher-level fieldbus system. The CX80xx devices can therefore be used as local controllers. Alternatively, Bus Terminals (K-bus) or EtherCAT Terminals (E-bus) can be connected; the CX80xx automatically recognizes which terminal system is connected during the start-up phase. The use of EtherCAT gives rise to further options, such as the realization of different topologies, the integration of further bus systems such as CANopen, PROFIBUS and PROFINET and – with the EtherCAT Box Modules – connection to the IP67 world.
-
CX8090 | Embedded PC with Arm9 and 2-port Ethernet switch
The CX8090 is a control system with a switched Ethernet port. It supports protocols such as real-time Ethernet, ADS UDP/TCP, Modbus TCP client/server or open TCP/IP-UDP/IP communication. K-bus or E-bus terminals can be attached as required; the CX8090 automatically recognizes the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT via the fieldbus interface or the additional Ethernet interface.
Specification
EL1018
If you need other items, pls feel free to contact us.
Brand:
BECKHOFF
Product Name:
Embedded PC Controller
Model:
CX8090
Condition:
New
Weight (kg):
0.5 Kg
Package:

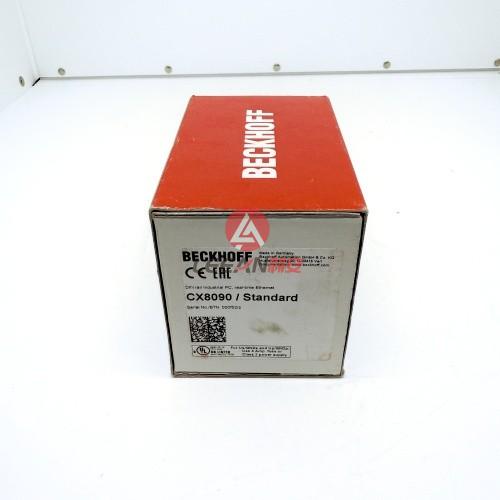

Original box.
Country of Origin:
Germany
Warranty
One Year
Similar items
CX1100-0930
CX1100-0920
CX1100-091
CX1500-M310
CX1100-0004
CX1100-002
CX9020-0111
CX9020-0112
CX9020-0115
CX5020-0111
CX5020-0110
CX5020-0112
CX5020-0121
CX5010-0111
CX2100-0004
CX2100-0904
CX2900-0035
KL9010
EL2008
EL5101
EL5001
EK1101
EK1110
EK1100
EL1819
EL9100
EL1008
EL1809
EL2809
EL9410
EK1122
EK1100
KL1408
KL2408
EL9011
EL1889
EL2889
EL1088
EL2088
EL6751
EL6731
EL3064
EL4004
EL3154
EL3024
EL3058
EL2624
EL1004
EL1008
EL1088
EL1014
Fieldbus interface
The variants from the CX80xx series differ by their fieldbus interfaces. Various versions cover the most important fieldbus systems:
CX8010:EtherCATSlave
CX8030:PROFIBUS DP Master
CX8031:PROFIBUS DP Slave
CX8050:CAN Master
CX8051:CANopen Slave
CX8080:RS232/485
CX8090:Ethernet (RT-Ethernet, EAP, ModbusTCP, TCP/IP, UDP/IP, Web Services)
CX8091:BACnet IP/OPC UA
CX8093:PROFINET RT Device (Slave)
CX8095:Ethernet/IP Slave
CX8097:Sercos III Slave
