Allen Bradley ControlLogix output module 1756-OB32 Digital I O Module DC10-31.2V

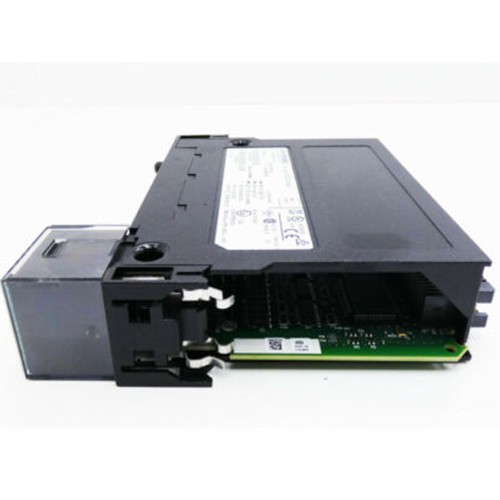

  1. Allen Bradley ControlLogix output module 1756-OB32 Digital I O Module DC10-31.2V

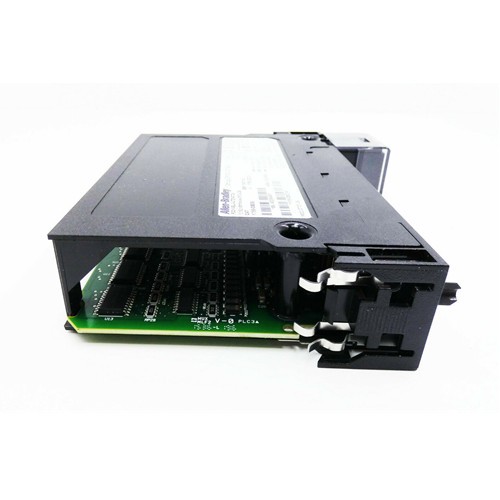

  2. Allen Bradley ControlLogix output module 1756-OB32 Digital I O Module DC10-31.2V
  3. Allen Bradley ControlLogix output module 1756-OB32 Digital I O Module DC10-31.2V

Allen Bradley ControlLogix output module 1756-OB32 Digital I O Module DC10-31.2V

ControlLogix Output Module  , 1756 I/O modules  , Digital Input Output Module
Send Inquiry Live chat

Description

Allen Bradley ControlLogix output module 1756-OB32  Digital I O Module  DC10-31.2V



Description of Terminal Block 1756-OB32

The ControlLogix Architecture provides a wide range of input and output modules to span many applications, from high-speed digital to process control. The ControlLogix architecture uses Producer/Consumer technology, which allows input information and output status to be shared among multiple ControlLogix controllers.


ControlLogix Digital I/O Modules

Catalog Numbers 1756-IA8D, 1756-IA16, 1756-IA16I, 1756-IA32, 1756-IB16, 1756-IB16D, 1756-IB16I, 1756-IB16IF,
1756-IB32, 1756-IC16, 1756-IG16, 1756-IH16I, 1756-IM16I, 1756-IN16, 1756-IV16, 1756-IV32, 1756-OA8, 1756-OA8D,
1756-OA8E, 1756-OA16, 1756-OA16I, 1756-OB8, 1756-OB8EI, 1756-OB8I, 1756-OB16D, 1756-OB16E, 1756-OB16I,
1756-OB16IEF, 1756-OB16IEFS, 1756-OB16IS, 1756-OB32, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-ON8, 1756-OV16E,
1756-OV32E, 1756-OW16I, 1756-OX8I


Technical Specifications - 1756-OB32

Attribute
1756-OB32
Outputs
32 (16 points/group)
Voltage category
12/24V DC source
Operating voltage range
10…31.2V DC
Output delay time
Off to On
On to Off
60 ms nom/1 ms max
200 ms nom/1 ms max
Current draw @ 5.1V
300 mA
Current draw @ 24V
2 mA
Total backplane power
1.58 W
Power dissipation, max
4.8 W @ 60 °C (140 °F)
Thermal dissipation
16.37 BTU/hr
Off-state leakage current per point, max
0.5 mA per point
On-state voltage drop, max
200 mV DC @ 0.5 A


1756 ControlLogix I/O Specifications

AC Digital Catalog Numbers

1756-IA8D, 1756-IA16, 1756-IA16K, 1756-IA16I, 1756-IA16IK, 1756-IA32, 1756-IA32K,

1756-IM16I, 1756-IM16IK, 1756-IN16, 1756-OA8, 1756-OA8D, 1756-OA8E, 1756-OA16,

1756-OA16K, 1756-OA16I, 1756-OA16IK, 1756-ON8

 DC Digital Catalog Numbers
1756-IB16, 1756-IB16K, 1756-IB16D, 1756-IB16DK, 1756-IB16I, 1756-IB16IK, 1756-IB16IF,
1756-IB16IFK, 1756-IB16ISOE, 1756-IB16ISOEK, 1756-IB32, 1756-IB32K, 1756-IC16, 1756-IG16,
1756-IH16I, 1756-IH16ISOE, 1756-IV16, 1756-IV16K, 1756-IV32, 1756-IV32K,
1756-OB8, 1756-OB8EI, 1756-OB8I, 1756-OB16D, 1756-OB16DK, 1756-OB16E, 1756-OB16EK,
1756-OB16I, 1756-OB16IEF, 1756-OB16IEFK, 1756-OB16IEFS, 1756-OB16IS, 1756-OB32,
1756-OB32K, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-OV16E, 1756-OV32E
Safety Catalog Numbers
1756-IB16S, 1756-OBV8S
Contact Catalog Numbers
1756-OW16I, 1756-OX8I
Analog Catalog Numbers
1756-IF6CIS, 1756-IF6I, 1756-IF8, 1756-IF8K, 1756-IF8I, 1756-IF8IK, 1756-IF16, 1756-IF16K,
1756-IF4FXOF2F, 1756-IF4FXOF2FK, 1756-IR6I, 1756-IRT8I, 1756-IRT8IK, 1756-IR12, 1756-IR12K,
1756-IT6I, 1756-IT6I2, 1756-IT16, 1756-IT16K, 1756-OF4, 1756-OF4K, 1756-OF6CI, 1756-OF6VI,
1756-OF8, 1756-OF8K, 1756-OF8I, 1756-OF8IK
HART Interface Catalog Numbers
1756-IF8H, 1756-IF8HK, 1756-IF8IH, 1756-IF8IHK, 1756-IF16H, 1756-IF16HK, 1756-IF16IH,
1756-IF16IHK, 1756-OF8H, 1756-OF8HK, 1756-OF8IH, 1756-OF8IHK
Specialty Catalog Numbers
1756-CFM, 1756-CMS1B1, 1756-CMS1C1, 1756-HSC, 1756-LSC8XIB8I, 1756-LSC8XIB8IK, 1756-PLS

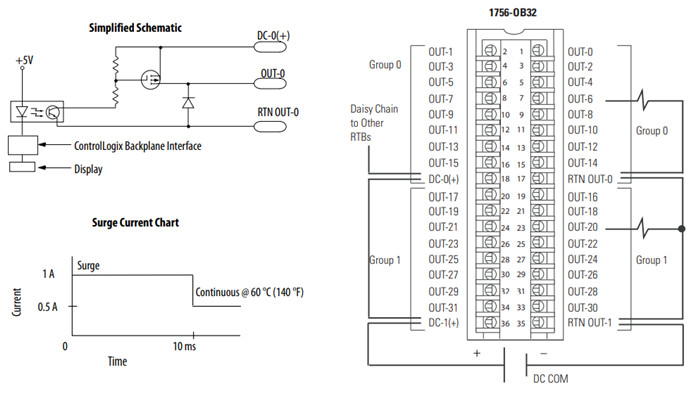

Wiring Diagrams of ControlLogix DC (10...31.2V) output module 1756-OB32


Types of 1756 Removable Terminal Blocks

Attribute
1756-TBNH
1756-TBSH
1756-TBCH
1756-TBS6H
1756-TBE
Description
20-position NEMA screw-clamp removable block
20-pin spring-clamp removable terminal block with standard housing
36-pin cage-clamp removable terminal block with standard housing
36-pin spring-clamp removable terminal block with standard housing
Extended depth terminal block housing
Screw torque
0.8…1 N.m
7…9 lb.in
0.8…1 N.m
7…9 lb.in
0.4 N.m
4.4 lb.in
0.4 N.m
4.4 lb.in
-


The list of Analog Input Modules with Removable Terminal Block



Models of Analog Input Module Models of Removable Terminal Block
1756-IF6CIS
1756-TBNH
1756-TBSH
1756-IF6I
1756-TBNH
1756-TBSH
1756-IF8H
1756-TBCH
1756-TBS6H
1756-IF8
1756-TBCH
1756-TBS6H
1756-IF8I
1756-TBCH
1756-TBS6H
1756-IF8IH
1756-TBCH
1756-TBS6H
1756-IF16
1756-TBCH
1756-TBS6H
1756-IF16H
1756-TBCH
1756-TBS6H



Analog RTD and Thermocouple Modules



Models of Analog Module
Models of Removable Terminal Block
1756-IR6I
1756-TBNH
1756-TBSH
1756-IRT8I
1756-TBCH
1756-TBS6H
1756-IT6I
1756-TBNH
1756-TBSH
1756-IT6I2
1756-TBNH
1756-TBSH


Analog Output Modules


Models of Analog Output Modules Models of Removable Terminal Block
1756-OF4
1756-TBNH
1756-TBSH
1756-OF6CI
1756-TBNH
1756-TBSH
1756-OF6VI
1756-TBNH
1756-TBSH
1756-OF8
1756-TBNH
1756-TBSH
1756-OF8H
1756-TBNH
1756-TBSH
1756-OF8I
1756-TBCH
1756-TBS6H
1756-OF8IH
1756-TBCH
1756-TBS6H


Analog Combination Input and Output Module


Models of Analog Combination Input and Output Module
Models of Removable Terminal Block
1756-IF4FXOF2F
1756-TBCH
1756-TBS6H


Specialty I/O Modules

Models of Specialty I/O Modules Models of Removable Terminal Block
1756-CFM
1756-TBNH
1756-TBSH
1756-HSC
1756-TBCH
1756-TBS6H
1756-LSC8XIB8I

1756-TBCH

1756-TBS6H

1756-PLS
Requires 3 RTBs: 1756-TBNH or 1756-TBSH
