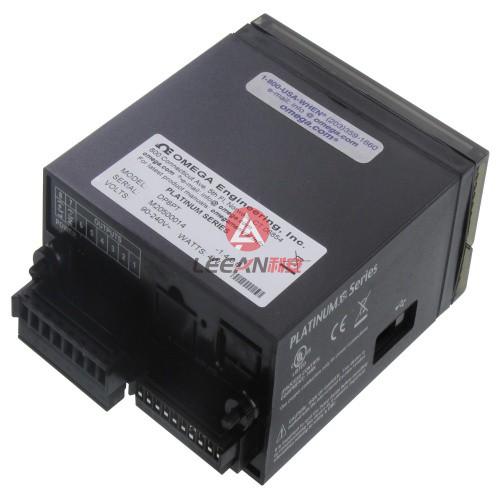

OMEGA PLATINUMTM Series Universal Input Digital Panel Meter DP8PT Segment Programmable 3 Color LED Display New
  1. OMEGA PLATINUMTM Series Universal Input Digital Panel Meter DP8PT Segment Programmable 3 Color LED Display New
  2. OMEGA PLATINUMTM Series Universal Input Digital Panel Meter DP8PT Segment Programmable 3 Color LED Display New
  3. OMEGA PLATINUMTM Series Universal Input Digital Panel Meter DP8PT Segment Programmable 3 Color LED Display New

OMEGA PLATINUMTM Series Universal Input Digital Panel Meter DP8PT Segment Programmable 3 Color LED Display New

OMEGA Panel Meter  , Input Digital Panel Meter  , LED Display
Send Inquiry Live chat

Description

OMEGA PLATINUMTM Series Universal Input Digital Panel Meter DP8PT Segment Programmable 3 Color LED Display New


Overview:


The PLATINUMTM Series meter offers unparalleled flexibility in process measurement. While the meter is extremely powerful and versatile, great care has gone into designing a product that is easy to set up and use. Automatic hardware configuration recognition eliminates the need for jumpers. The PLATINUMTM Series meter displays only the menu items associated with the system’s custom configuration.


Each unit allows the user to select the input type from 9 thermocouple types (J, K, T, E, R, S, B, C, and N),Pt RTDs (100, 500, or 1000 Ω, with a 385, 392, or 3916 curve), thermistors (2250 Ω, 5K Ω, and 10K Ω), DC voltage, or DC current. The analog voltage inputs may be single ended bipolar, differential absolute or differential ratiometric and both voltage and current are fully scalable using a single point or 10-point inearization to virtually all engineering units with aselectable decimal point that is perfect for use with pressure, flow, or other process inputs. Multiple Alarms can be configured for above, below, hi/lo, and band triggering using either absolute or deviation Alarm trigger points.

The PLATINUMTM Series meter features a large, three-color, programmable display with the capability to change color every time the Alarm is triggered. Various configurations of mechanical relay, SSR, DC pulse, and isolated or non-isolated analog voltage or current outputs are available. Every unit comes standard with USB communications for firmware updates, configuration management, and data transfer. Optional Ethernet and RS-232 / RS-485 Serial communications are also available. The Analog Output is fully scalable and may be configured for retransmission to follow your input signal. The universal power supply accepts 90–240 Vac. The low-voltage power option accepts 24 Vac or 12–36 Vdc.

Additional features usually found only on more expensive meters make these the most powerful products in their class. Some additional standard features are High-high/Low-low Alarm functionality, external latch reset, configuration save and transfer, and configuration password protection.


Specification:

Brand OMEGA
Equipment Name Panel Meter
Model DP8PT
Condition New
Details Universal Digital Panel Meter, Temperature, Process, Strain, 1/8 DIN, 4 Digit, 9-Segment Programmable 3 Color LED Display, AC Supply, PLATINUM Series
More Panel Meter DP32Pt, DP16Pt, DP8Pt, DP8EPt
DP16PT-330-C24-EIP-DC
DP8PT-330-DC
DP8PT-330-C24-DC
DP8PT-330-EIP
DP41-B-4R-A
DP20
DP20-A1
DP20-A1-A2
DP25B-E
DP25B-E-A
DP25B-S
DP25B-TC
DP25B-TC-230
DP25B-E-DC10
DP25B-S-230-A
DP25B-S-A.115V
DP25B-S-A -1.2
DP25B-E-DC10
DP9602
DP41-S-A-230
DP41-S-230
If you need other models, pls feel free to contact us.


Wiring Instructions

Back Panel Connections



Figure 2 – DP16Pt and DP32Pt Models: Back Panel Connections (With Isolated Output Expansion Board)
