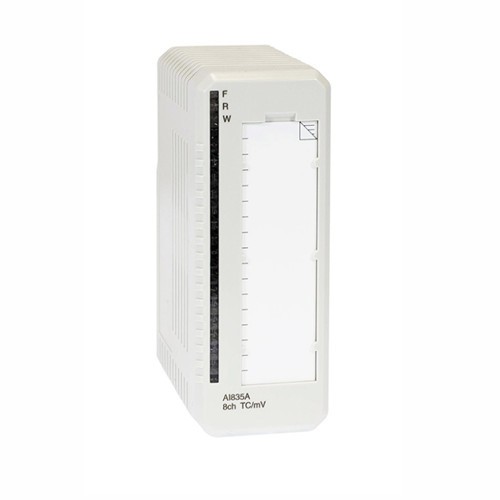

ABB S800 Modules Analog input 8 channels Module AI835A 3BSE051306R1
  1. ABB S800 Modules Analog input 8 channels Module AI835A 3BSE051306R1
  2. ABB S800 Modules Analog input 8 channels Module AI835A 3BSE051306R1

ABB S800 Modules Analog input 8 channels Module AI835A 3BSE051306R1

Analog Input Module  , S800 I O Modules  , System ABB 800xA input Module
Send Inquiry Live chat

Description

ABB S800 Modules Analog input 8 channels Module AI835A 3BSE051306R1




Description of Input Module AI835A

The AI835/AI835A provides 8 differential input channels for Thermocouple/mV measurements. Measurement ranges configurable per channel are: -30 mV to +75 mV linear, or TC Types B, C, E, J, K, N, R, S and T, for AI835A also D, L and U.

One of the channels (Channel 8) may be configured for “Cold Junction” (ambient) temperature measurements, thus serving as CJ-channel for Ch. 1...7. The junction temperature may be measured locally on the MTUs screw terminals, or on a connection unit distant form the device.

Alternatively, a fix junction temperature for the module may be set by the user (as parameter) or for AI835A also from the application. Channel 8 may be used in the same manner as Ch. 1...7 when no CJ-temperature measurement is needed.


Features and benefits
a:8 channels for RTD (Pt100, Cu10, Ni100 and Ni120 and resistor) inputa;8 differential input channels for thermocouple/mV.
b:Channel 8 can be designated as the CJ-channel (4-wire Pt100 RTD)
c:Variety of thermocouples with the following characteristics: B, C, E, J, K, N, R, S and T for AI835A also D, L and U
d:15 Bit resolution (A/D)
e:Inputs are monitored for wire-break open-circuit

Specifications


Type
Analog Input
Signal specification
-30..75 mV linear; TC types B, C, D, E, J, K, L, N, R, S, T and U
Article number
3BSE051306R1
Number of channels
8
Mechanics
S800
Rated insulation voltage
50 V
Dielectric test voltage
500 V a.c.
Power dissipation
1.6 W
Current consumption +5 V Modulebus
70 mA
Current consumption +24 V Modulebus
50 mA
Use with MTU
TU810V1, TU812V1, TU814V1, TU818,TU830V1, TU833
Model Number AI835A


S800 I/O Module
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers over industry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors.
