Description

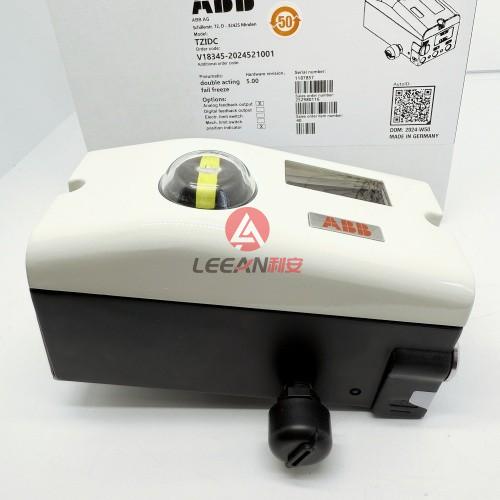

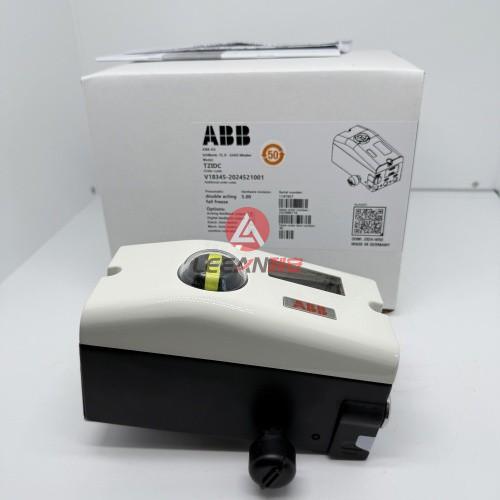

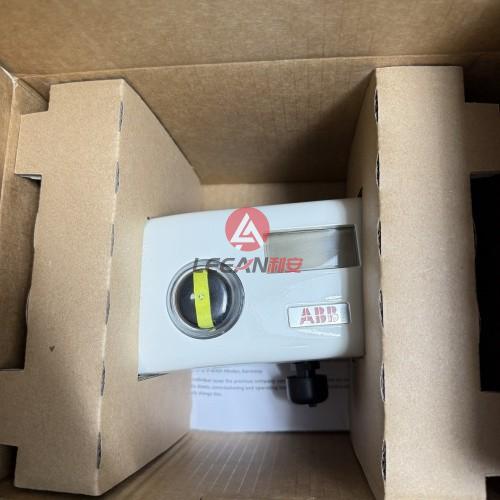

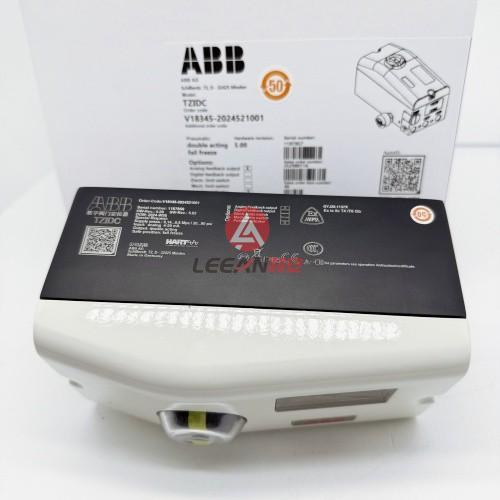

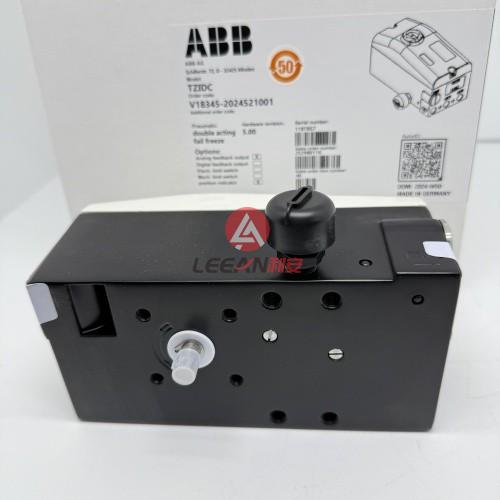

ABB Electro-Pneumatic Positioner TZIDC V18345-2024521001 Smart Digital Valve Positioner New
Short Description
TZIDC is an electronically configurable positioner with communi cation capabilities, mounting to pneumatic linear or rotary actua tors. It features a small and compact design, a modular con struction, and an excellent costperformance ratio. Fully automatic determination of the control parameters and adapta tion to the final control element yield considerable time savings and an optimal control behavior.
Long Description
V18345 - TZIDC Electro-Pneumatic Positioner, intelligent, configurable, with indicato and operator panel Case made of aluminum, varnished, with mechanical position indicator, r mounting to linear actuators acc. DIN / IEC 534 / NAMUR or to rotary ctuators acc. VDI / VDE 3845 Input 4 ... 20 mA, two-wire, with connector plug for LKS adapter and F module for HART communication, FM / CSA, Double acting, fail freeze, ble: Thread 1/2-14 NPT, air pipe: Thread 1/4-18 NPT, Plug-in module fo analog position feedback, signal range 4 ... 20 mA, two-wire, Without tional Mechanical Kit for Digital Position Feedback, Standard Design ( rnish / Coding)
Specifications
| Brand | ABB AG |
| Type | Digital Positioner |
| Model |
V18345-2024521001 |
| Special Request: |

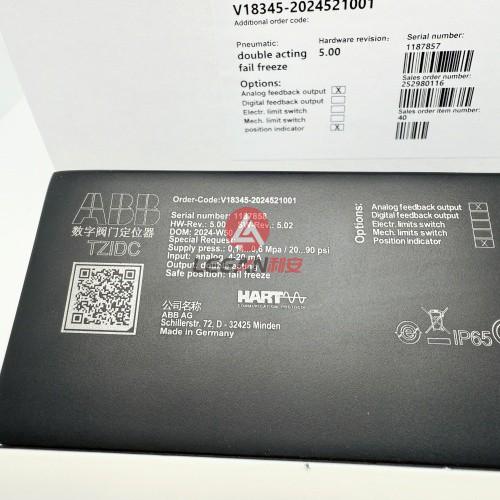

Supply Press:0.14-0.6Mpa/20-90psi Input:analog 4-20mA Output: double acting Safe position:fail freeze |
| Options: |
Analog feedback output Digital feedback output Electr.limits switch Mech.limits switch Position indicator |
| Net Weight | 3KG |
| Warranty | One Year |
| Country of Origin | Germany |
| Similiar Positioner |
V18345-1010521001 V18345-2010460001 V18345-2010160001 V18345-2020161001 V18345-2020151101 V18345-2020420001 V18345-202046000C
V18345-1010551001
V18345-1010521001V18345-1010221001 V18345-1010121001 V18345-2010421001 V18345-2010451001 V18345-1020261001 V18345-1020421001 V18345-1010521001 V18345-1010121001 V18345-1010221001 V18345-1010551001 V18345-1010421001 V18345-1020121001 V18345-1010261001 V18345-1020521001 V18345-1020421001 V18345-1020551001 V18345-1010121001 V18345-102742000H V18345-1010551001 V18345-1017521001 V18345-1027521001 V18345-1017221001 V18345-1017121001 V18345-1017421001 V18345-1027221001 V18348-10111300110 V18348-10111310110 V18348-10113300110 V18348-10113330110 V18348-10111200110 V18348-11011210110 V18348-10114300110 V18345-1102565442 |
