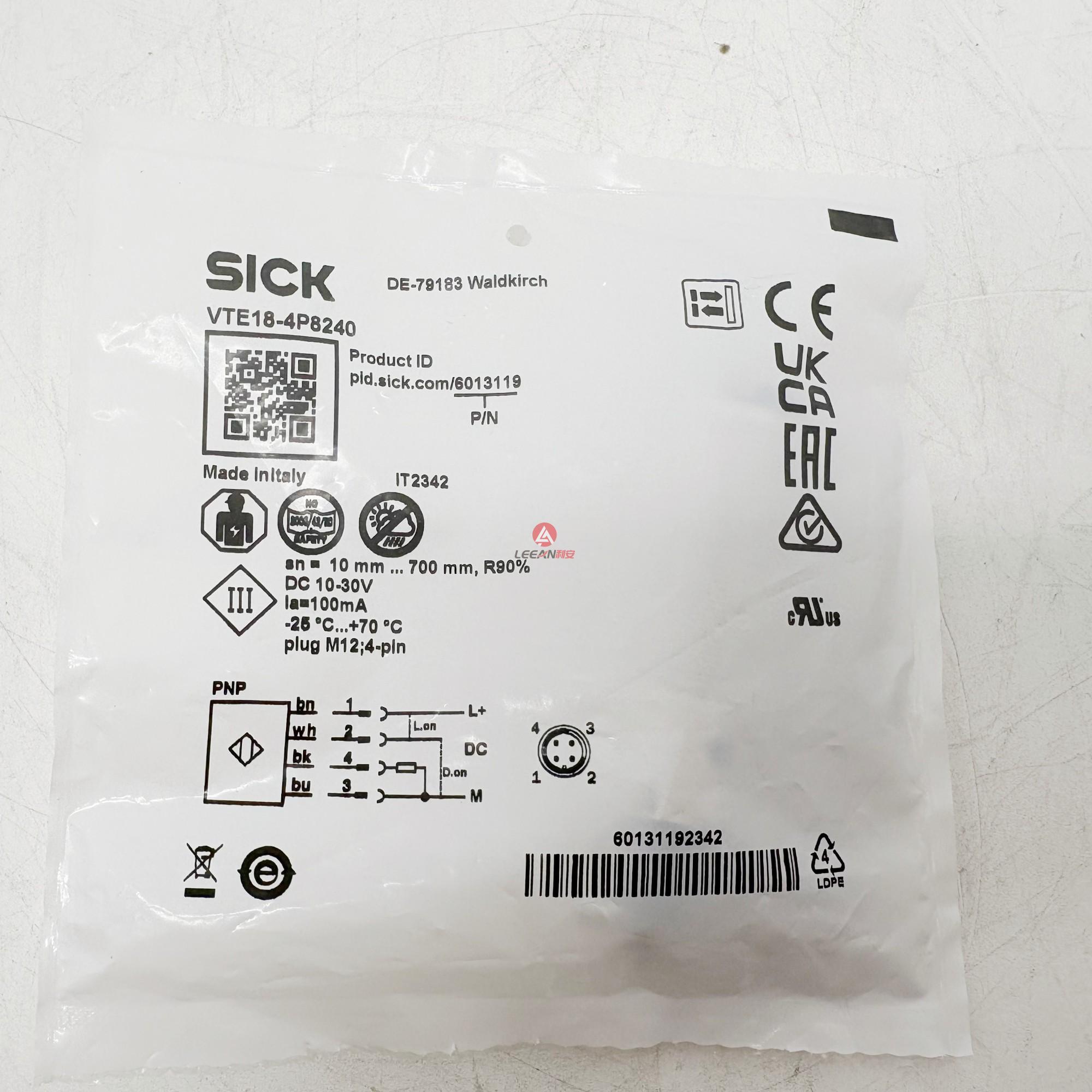

SICK V18 Series Cylindrical Photoeletric Sensors VTE18-4P8240 Photoelectric Proximity Sensor 800mm PNP 6013119 New
Overview
SICK At A GlAnCe
SICK is one of the leading manufacturers of intelligent sensors and sensor solutions for industrial applications. A unique range of products and services creates the perfect basis for controlling processes securely and efficiently, protecting individuals from accidents and preventing damage to the environment.
We have extensive experience in a wide range of industries and understand their processes and requirements. With intelligent sensors, we can deliver exactly what our customers need. In application centers in Europe, Asia and North America, system solutions are tested and optimized in accordance with customer specifications. All this makes us a reliable supplier and development partner.
Comprehensive services complete our offering: SICK lifetime Services provide support throughout the machine life cycle and ensure safety and productivity.
For us, that is “Sensor Intelligence.
Description
Brand :
SICK
Model :
VTE18-4P8240
Order No.
6013119
Product type :
Photoelectric Proximity Sensor
Specifications:
Functional principle:Photoelectric proximity sensor
Functional principle detail:Energetic
Dimensions (W x H x D):18 mm x 18 mm x 78 mm
Housing design (light emission):Cylindrical
Housing length:78 mm
Thread diameter (housing):M18 x 1
Optical axis:Axial
Sensing range max.:10 mm ... 800 mm 1)
Sensing range:10 mm ... 700 mm
Focus:Approx. 2.8°
Type of light:Infrared light
Light source:LED
Light spot size (distance):Ø 40 mm (800 mm)
Angle of dispersion:Approx. 2.8°
Adjustment:Potentiometer, 270° (Sensing range)
Shipping weight:
0.5 Kg
Condition:
New Original
Similar Sensors:
VTE18-4P4240
VTE18-2N4242
VTE18-4N1212
VTE18-4N1818
VTE18-4N4212
VTE18-4N2212
VTE18-4N2612
VTE18-3P8212
VTE18-4P4212
VTE18-4N4240
VTE18-4N4712
VTE18-4N8212
VTE18-2P4240
VTE18-4P1212
VTE18-4P2212
VTE180-2P42447
VTE18-4P2240
VTE18-4P2940
VTE18-4P4740
VTE18-4P4940
VTE18-4P8112
VTE18-4P8212
VTE18-4P8240
VTE18-3F4212
VTE18-3F4740
VTE18-3F8212
VTF18-4N1212
VTE18-4N4712
VTF18-3P5140
VTF18-3E5640
VL18-4N2240V
VTE18-4N8240V
VL18-4P3140V
VL180-2N41136
VL180-2P41131
VT180-N112
VT12T-2P132
IM12-02BPS-ZW1
IM12-04BNS-ZW1
IM12-04NNS-ZW1
IM12-04NPS-ZW1
IM18-05BNS-ZW1
IM18-05BPS-ZW1
IM18-08NPS-ZW1
IM18-08NNS-ZW1
IM18-08BNS-ZW1
IM18-08BPS-ZW1
IM18-12BPS-ZW1
IM18-12NPS-ZW1
IM12-04NPO-ZW1
IM12-02BPO-ZW1
IM12-04NNS-ZCK
IM12-04NPS-ZCK
IM18-08NPS-ZCK
IM12-04NNP-ZC1
IM12-04NPP-ZC1
IM12-08NPS-ZC1
IM12-08NPS-ZCK
IM12-08NPS-ZW1
IM12-08NPO-ZC1
IM12-10NPS-VC1
IM12-10NPS-NC1
IM12-10NPS-ZC1
IM12-10NPS-ZW1
IME18-08NNSZW2S
IME18-08NPSZW2S
IME12-08NNSZW2S
IME12-08NPSZW2S
IME18-12NNSZW2S
IME18-12NPSZW2S
IME12-04NNSZW2S
IME12-04NPSZW2S
IME18-08BNSZW2S
IME18-08BPSZW2S
IME12-04BNSZW2S
IME12-04BPSZW2S
IME08-04NNSZW2S
IME08-04NPSZW2S
IME12-04BPSZC0S
IME18-08BPSZC0S
IME18-05BPSZC0S
IME12-02BPSZC0S 1040732
IME12-04BNSZC0S 1040772
IME12-04BNSZW2K 1040773
IME12-04BNSZW2S 1040774
IME12-04BPSZC0S 1040764
IME12-04NNSZW2S 1040757
IME12-04NPSZW2S 1040750
IME12-08NNSZC0S 1040788
IME12-08NNSZW2S 1040790
IME12-08NPSZC0S 1040780
YF2A14-020VB3XLEAX 2096234
IME12-04BPOZC0S 1040768
WL100-N1432
WL100-N1439
WL100-N4430
WL100-P4439
WL100-2P1429
WL100-2P1439
WL100-2P3429
WL100-2P3439
WL100-2P4429
WL100-2P4439
WL100-2N1429
WL100-2N1439
WL100-2N3429
WL100-2N3439
WL100-2N4429
WL100-2N4439
WL100-2N1432S06
WL100-2P1332S08
WL100-2P4400S38
WL100-2P1332S17
WL100-2P1332S07
WL100-2P1409S34
WL100-2P4430S23
WL100-2P1439S22
WL100-2P1432S12
WL100-2P4239S09
WL100-2P4330S14
WL100-2P1409S31
WL100L-F1131 6030708
WT100-N1412
WL100-2N1439
WT100-2P1439
WL100-N1432
WT100-N1432
WT100-P1432
WL100-P1432
WL100L-F2231
WL100L-E1311
WS/WE100-N1432
WS/WE100-P1432
WT100-2N1419
WL100-2N1429
WL100-2P1439
WL100-P1332S07
WS100-2N1439
WE100-2N1439
WL100-N1429
WL100-P1232
WL8G-N1131
WL100-N1432
WL100-P1432
WL8G-P2131
WL8G-P2231
WL8-P2231
WL100-2P1332S08
WL100-2P3439
WL100-2P1439
WL100-2P4429
WL100-2N1429
WL100-2P1429
WL100-N1432
WL100-P4430
WT100-P4430
WTB8L-P2111
IQ10-03BPSKT1
WT100-2P3419
WL100-2N1439
WL100-P1432
WTB8L-P2131
WT100-2P3439
WT100-N1412
DT50-P1114 1047581
DS50-P1112 1047402
1065661 DT50-2B215252
DT50-P2228
DT50-P1113
DT50-P1123
DT-P1114
DT50-P2123
DT50-P2113
DT50-N1113
DT50-N1123
DT50-N2113
DT50-N2123
DT50-N1114
DT50-P1124
DT50-N1124
DT50-2B215252
DT50-P2225
DT50-N2225
DT50-N2228
DS50-P1112
DS50-P1122
DT50-2B1555
DT35-B15251
DT35-B15551
DT50-P1113
DL35-B15552
DT50-P1113
DT50-P1114
DT50-2B215252
DT50-2B215552
DT50-N1114
DT35-B15251
KT3W-P1116
KT3W-N1116
KTM-WP11282P
KTM-MB8A191P
KTM-WN11172P
KTM-WN11171P
KTM-WP11172P
KTM-WN11182P
KTM-MB31191P
KTM-MB8A191P
KTM-MB31194P
KTM-WN11181P 1062200
KTM-WP11181P 1062199
KTM-MB31111P 1062202
KTM-WP11182P 1062150
KTM-MB31194P 1078048
KTM-WN11184 1077662
YF8U14-020VA3XLEAX
YF2A14-020VB3XLEAX
CSM-WN11122P
If you need other models,pls feel free to contact us.

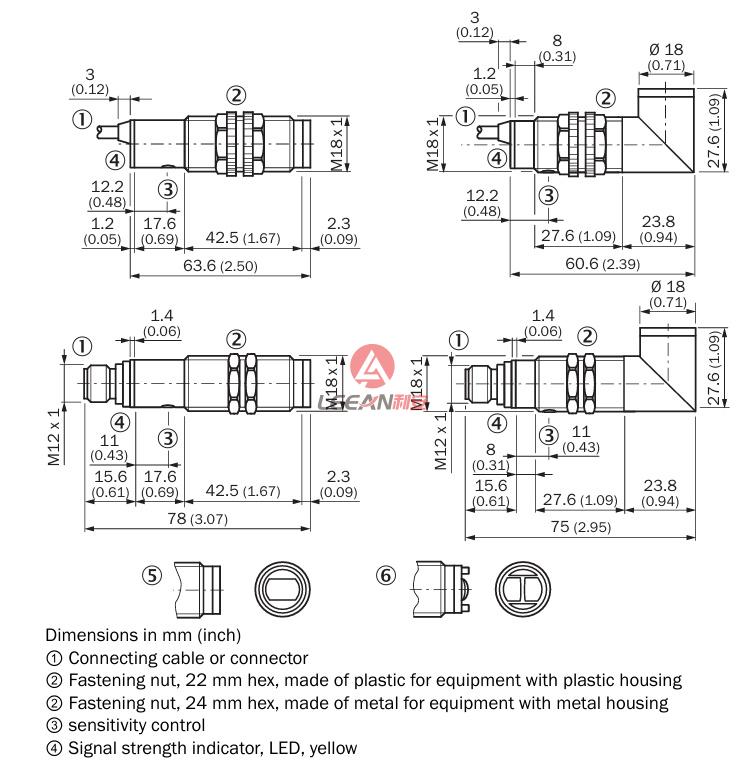

Dimension
