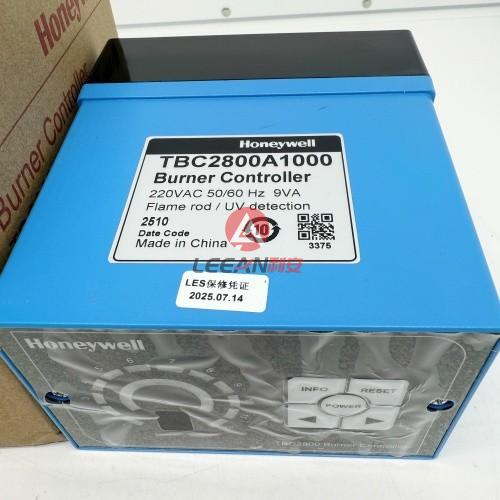

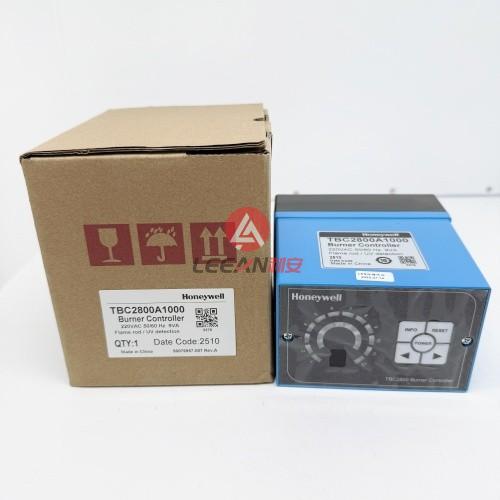

Honeywell Digital Burner Controller TBC2800A1000 Sequence Controllers 220VAC 50/60Hz 9VA New
Overview:
TBC2800 series is the high-performance burner controller which is designed for commercial and industrial application and suitable for gas firing.
TBC2800 series can be used for pulse firing and modulating firing mode.
TBC2800 series applies to multiple burners application, such as steel, machinery manufacturing, non-ferrous metals, glass, ceramic, petro chemical and other industries.
Features:
• Compatible to UV, Double rod (separated flame rod and igni-tion rod) and 1 rod (integrated flame rod and ignition rod) flame detection which can be set manually.
• Integrate 6 kinds of timing choices which can be set manually according to the application requirements.
• 24 hours continuous operation (except UV application)
• Life-cycle ≥ 250K times (Note 1)
• IP54 protection field or cabinet installation
• Multifunctional LED lights and buttons indicate the Flame strength, fault & operation sequence and parameters.
• Remote or on-site reset.
• Adjustable flame on-off threshold.
• Comply with EN29
Product Details:
Mains input:220/230VAC –15/+10% 50 60Hz
Manufacturer :
Honeywell
Product No. :
TBC2800A1000
Product type :
Honeywell Digital Burner Controller
Specifications:
Power consumption: 9 VA
Cable length of flame rod: 75m(max)
Cable length of UV: 75m (max)
Flame threshold setting: 1~10µA
Cover material: PC/ABS
Protection class: IP54
Ambient temperature: -20 +60
Ambient humidity: 95%, non condensing
Lifecycle:250,000 cycles comply with EN298
Drive gas valve 1A(max) power factor: 1
Drive ignition transformer 2A(max): PF 0.2
Maximum output for terminal: 2A 242Vac
Mass (weight):
2kg
Condition
New
Country of Origin
China
PLC Controllers
TBC2800A1000
TBC1800A1001
TBC1800A1011
TBC2800A2000
TBC1800A1021
DBC2000E1000
TBC2800A2000
TBC1800A1011
DBC2000E2019
DBC2000G1019
DBC2000E1018
DBC2000E1019
DBC2000E1034
FSC1600A10
FC1000A1001
RA890G1245
RA890F1304
RA890G1260
RA890F1270
RA890G1229
A4021A1002
RA890G1278X2
RA890F1288
EC7890B1028
M6284F1013-S
RM7800L1012
RM7898A1000
R7849A1023
RA890F1270
RA890G1278*2
RA890F1304
RA890G1245
RA890G1229
RA890G1260
RA890F1288
RA890F1296*2
TBADK1000
RA890F1700
RA890G1336
Q7055C1017
Q7055C1009
Q7055A1007 BNA-1C
Q7055A1015 BNA-2CS
51202329-102
51202329-202
51202329-212
51202329-112
If you need other models, pls feel free to contact us.
Warranty
One Year

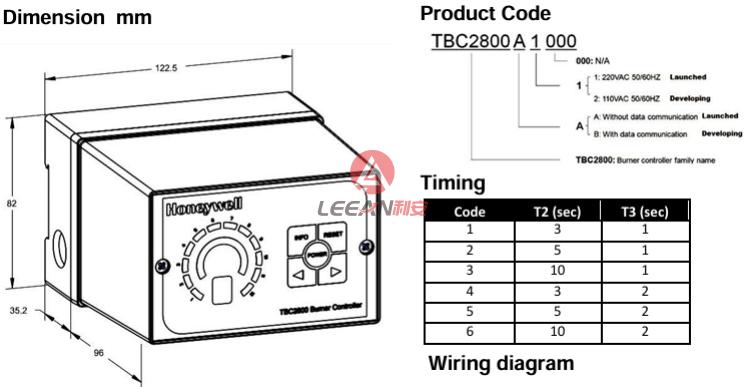

Dimensions
