ABB Processor Unit PM856AK01 System 800xA Hardware Selector 3BSE066490R1 CPU Board New
  1. ABB Processor Unit PM856AK01 System 800xA Hardware Selector 3BSE066490R1 CPU Board New
  2. ABB Processor Unit PM856AK01 System 800xA Hardware Selector 3BSE066490R1 CPU Board New
  3. ABB Processor Unit PM856AK01 System 800xA Hardware Selector 3BSE066490R1 CPU Board New

ABB Processor Unit PM856AK01 System 800xA Hardware Selector 3BSE066490R1 CPU Board New

ABB Processor Unit  , ABB CPU Board  , ABB System 800xA Hardware Selector
Send Inquiry Live chat

Description

ABB Processor Unit PM856AK01 System 800xA Hardware Selector 3BSE066490R1 CPU Board New


Description


AC 800M is a family of rail-mounted modules, consisting of CPUs, communication modules, power supply modules and various accessories. There are several CPU modules to choose from, ranging from medium processor power and low cost to high processor power and support for full redundancy.

The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM856A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool.

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.


Features and benefits


Reliability and simple fault diagnosis procedures

Modularity, allowing for step-by-step expansion
IP20 Class protection without the requirement for enclosures
The controller can be configured with 800xA control builder
The controller has full EMC certification
Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)

Specifications

Brand ABB
Type
Processor Unit
Model PM856AK01
Article number
3BSE066490R1

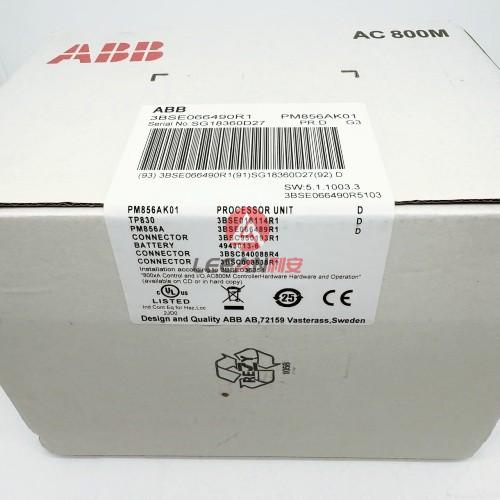

Consist of

TP830 (3BSE018114R1)

PM856A (3BSE066489R1)

CONNECTOR (3BSC950193R1)

BATTERY (4943013-6)

CONNECTOR (3BSC840088R4)

CONNECTOR (3BSC008538R1)

Condition New Original
Weight 3KG
Similar Modules CI853K01 CI854K01 CI873K01 CI873AK01 CI854BK01
CI858K01 CI867K01 CI868K01 CI854AK01 CI867Ak01
CI871K01 PM851AK01 PM856AK01 PM864AK01
PM866AK01 PM865K01 PM865K02 PM861AK01
PM802F PM803F AI830 AI835 DO801 PM632 AI810
AO810V2 DI810 DO810 FI830F FI820F TU847 TU818
TU810V1 TU831V1 TU830V1 TB820V2 AI801 AO801
SA811F EI813F FI820F SD832 SD833 SS822 CI840A
CI830 CI845 CI801 CI810B AI880A DI880 DO880
DO820 AI835 AI830A DI524 DI561 DI562 DI571
DI821 DI801 DI572 DX561 DO571 PM554-RP

AI561 AO561 CM574 DI561 SB822 TB807

If you need other modules, pls feel free to contact us.

I/O Modules AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820 and DP840
Other Terminal Blocks
TU810V1, TU812V1, TU814V1, TU830V1, TU833


S800 I/O Module
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers over industry-standard fieldbus technology and therefore can be used with a wide range of process controllers from ABB and other vendors.
Model
Mechanics
Type
AI801
S800L
Analog Input
AI810
S800 Analog Input
AI815
S800
Analog Input
AI820
S800
Analog Input
AI825
S800
Analog Input
AI830A
S800
Analog Input
AI835A
S800
Analog Input
AI843
S800
Analog Input
AI845
S800
Analog Input
AI880A
S800
Analog Input
AI890
S800
Analog Input
AI893
S800
Analog Input
AI895
S800
Analog Input
AO801
S800L
Analog Input
AO810V2
S800
Analog Output
AO815
S800
Analog Output
AO820
S800
Analog Output
AO845A
S800
Analog Output
AO890
S800
Analog Output
AO895
S800
Analog Output




Our advantage products:

AB:  Input / Output Module / Touch Screen
ABB:  Inverter/ I/O Module
GE: IC200/ 693 / 694 etc. series
SIEMENS: 6ES7 / 6EP / 6AV / 6SE etc.
EBMPAPST / Zhiel Abegg :  Centrifugal Cooling fan (Use for ABB/SIEMENS inverters)
Mitsubishi / FANUC / Yaskawa / Panasonic / Oriental Motor: Servo Motor & Servo Drive

Honeywell:Detector/Sensor/Transmitter
