Description

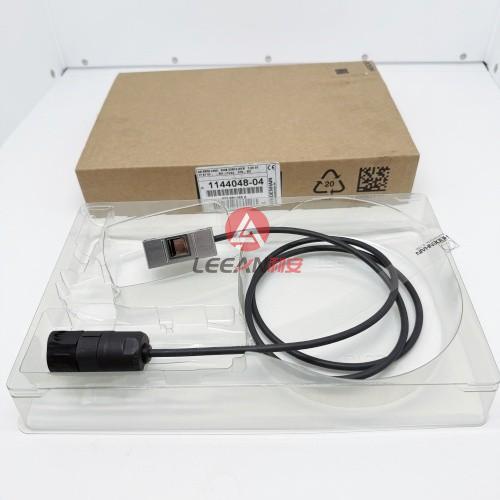

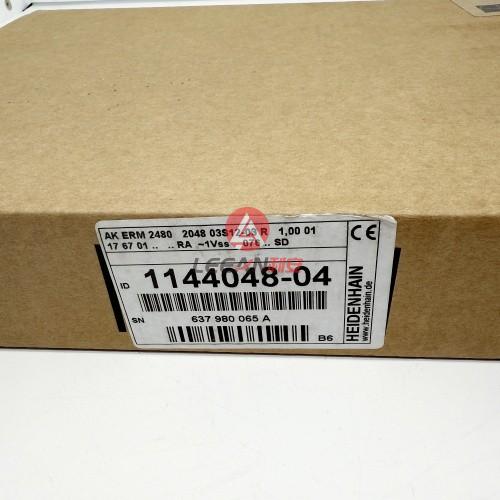

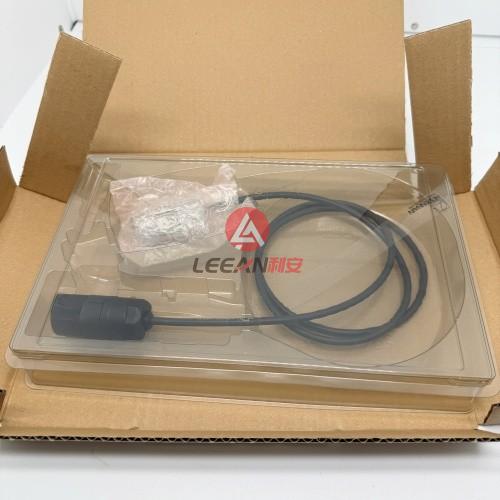

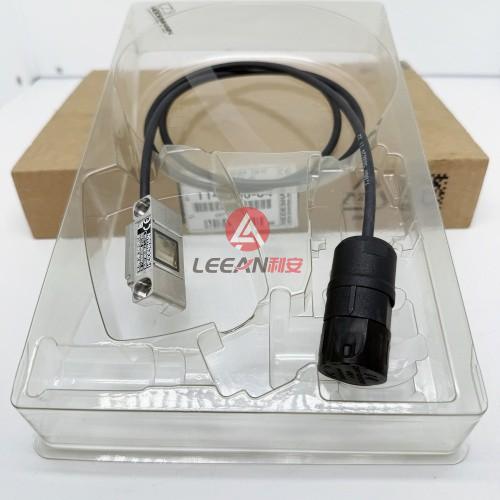

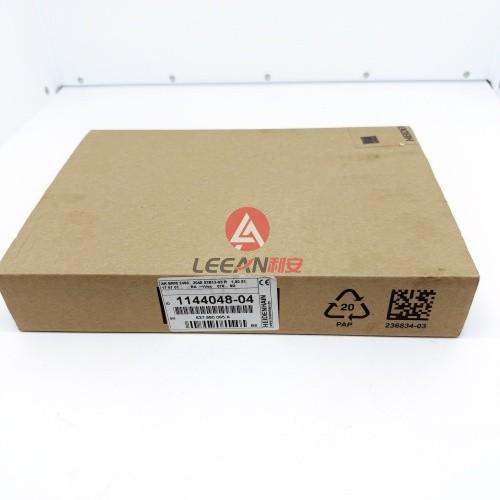

Heidenhain 1144048-04 Incremental Angle Encoder AK ERM 2480 2048 03S12-03 Scanning Head New
Overview
Compact and versatile
The ERM 2000 series angle encoders feature various drum sizes and geometries. Large inside diameters of up to 512 mm facilitate cable routing through the encoder. Their compact design permits installation in tight spaces.
High permissible shaft speeds
The modular bearingless design of these encoders permits high shaft speeds in continuous operation and reversing duty, even when installed with mechanical fault exclusion. These high shaft speeds do not increase the acoustic operating noise of the encoder.
Sturdy and tolerant to contamination
The MAGNODUR measuring standard is particularly tolerant to contamination. The resulting consistent signal quality makes these encoders suitable for harsh shopfloor conditions.
The extremely accurate ERM 2203
Even with their high permissible shaft speeds, the ERM 2203 angle encoders feature high accuracy and robust scanning.
Feature
ERM 2000 series
Incremental angle encoders with magnetic scanning
Easy mounting with only little adjustment work
Continuous operation at high shaft speeds
Rugged and tolerant to contamination
Graduation accuracy: ±2.5” to ±72”
Signal periods: 1024 to 7200
Diameters: 64 mm to 452 mm
Interfaces: 1 VPP, TTL, EnDat 2.2
Details
Brand:
Heidenhain
Model
AK ERM 2480 2048 03S12-03
ID
1144048-04
Specifications

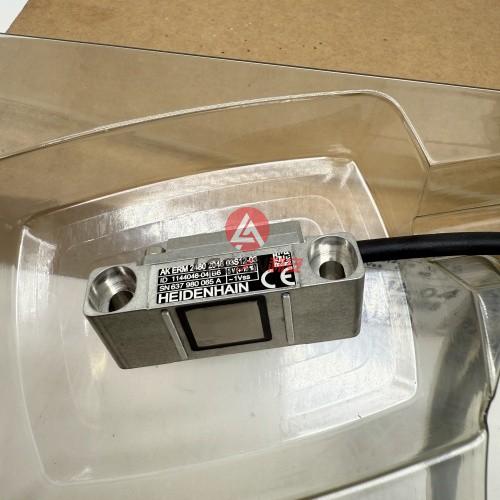

AK ERM 2480
Scanning head for incremental angle encoder with
magnetoresistive scanning
Line count:2048
Grating period:395.0 µm
Drum outside diameter:257.50 mm
Output signal:~1Vpp
Cutoff frequency (-3 dB):300.00 kHz
Reference mark:analog
Power supply:5 V (+-10 %)
Protection rating:IP67 (EN60529)
Operating temperature: -10/+100 °C
Electrical connection: Coupling M23, male, 12-pin
Pin configuration:D294999
Connecting direction: Cable outlet tangential (right)
Cable length:1.00 m
Cable type: PUR Ø 4.5 mm
Country of Origin
Germany
Weight
0.5KG
Similar Models
1144028-01
AK ERM 2280 4096 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
257.5 mm
1144028-02
AK ERM 2280 1800 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
113.16 mm
1144028-03
AK ERM 2280 2800 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
176.03 mm
1144028-05
AK ERM 2280 5200 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
326.9 mm
1144028-06
AK ERM 2280 1200 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
75.44 mm
1144028-07
AK ERM 2280 1200 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
75.44 mm
1144028-08
AK ERM 2280 2048 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
128.75 mm
1144028-09
AK ERM 2280 2048 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
128.75 mm
1144028-10
AK ERM 2280 4096 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
257.5 mm
1144028-11
AK ERM 2280 1024 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
64.37 mm
1144028-14
AK ERM 2280 2400 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
150.88 mm
1144028-15
AK ERM 2280 2400 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
150.88 mm
1144028-19
AK ERM 2280 1440 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
90.53 mm
1144028-21
AK ERM 2280 1800 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
113.16 mm
1144028-26
AK ERM 2280 1440 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
90.53 mm
1144028-27
AK ERM 2280 2800 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
176.03 mm
1144028-28
AK ERM 2280 7200 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
452.64 mm
1144028-29
AK ERM 2280 1800 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
113.16 mm
1144028-31
AK ERM 2280 5200 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
326.9 mm
1144028-32
AK ERM 2280 7200 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
452.64 mm
1144028-33
AK ERM 2280 1024 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
64.37 mm
1144041-01
AK ERM 2410 600 C 1SS08-C4 1.00 01 17 67 01 .. EnDat22 90 24 37 16384 6 SD
75.44 mm
1144041-02
AK ERM 2410 900 C 1SS08-C4 1.00 01 17 67 01 .. EnDat22 90 24 37 16384 6 SD
113.16 mm
1144041-03
AK ERM 2410 1024 C 1SS08-C4 1.00 01 17 67 01 .. EnDat22 90 24 37 16384 6 SD
128.75 mm
1144041-04
AK ERM 2410 1200 C 1SS08-C4 1.00 01 17 67 01 .. EnDat22 90 25 37 16384 6 SD
150.88 mm
1144041-05
AK ERM 2410 1400 C 1SS08-C4 1.00 01 17 67 01 .. EnDat22 90 25 37 16384 6 SD
176.03 mm
1144041-06
AK ERM 2410 2048 C 1SS08-C4 1.00 01 17 67 01 .. EnDat22 90 25 37 16384 6 SD
257.5 mm
1144041-07
AK ERM 2410 2600 C 1SS08-C4 1.00 01 17 67 01 .. EnDat22 90 26 37 16384 6 SD
326.9 mm
1144041-08
AK ERM 2410 3600 C 1SS08-C4 1.00 01 17 67 01 .. EnDat22 90 26 37 16384 6 SD
452.64 mm
1144041-09
AK ERM 2410 512 C 1SS08-C4 1.00 01 17 67 01 .. EnDat22 90 23 37 16384 6 SD
64.37 mm
1144042-01
AK ERM 2420 900 01 -03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
113.16 mm
1144042-02
AK ERM 2420 1024 01 -03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
128.75 mm
1144042-03
AK ERM 2420 1400 01 -03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
176.03 mm
1144042-04
AK ERM 2420 2048 01 -03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
257.5 mm
1144042-05
AK ERM 2420 512 01 -03 R 1.00 01 17 67 01 .. MT RV TTLx2 07 6 .. SD
TTLx2 Square-wave signals, TTL levels with 2-fold interpolation
64.37 mm
1144042-06
AK ERM 2420 1200 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
150.88 mm
1144042-07
AK ERM 2420 600 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
75.44 mm
1144042-08
AK ERM 2420 2048 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
257.5 mm
1144042-09
AK ERM 2420 1024 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
128.75 mm
1144042-10
AK ERM 2420 1024 03S12-03 R 1.00 01 17 67 01 .. MT RV TTLx2 07 6 .. SD
TTLx2 Square-wave signals, TTL levels with 2-fold interpolation
128.75 mm
1144042-11
AK ERM 2420 600 01 -03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
75.44 mm
1144042-12
AK ERM 2420 512 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 3 .. SD
TTL Square-wave signals, TTL levels
64.37 mm
1144042-13
AK ERM 2420 1400 03S12-03 R 1.00 01 17 67 01 .. MT RV TTLx2 07 6 .. SD
TTLx2 Square-wave signals, TTL levels with 2-fold interpolation
176.03 mm
1144042-15
AK ERM 2420 1200 01 -03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
150.88 mm
1144042-16
AK ERM 2420 2600 01 -03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
326.9 mm
1144042-18
AK ERM 2420 900 01 -03 R 1.00 01 17 67 01 .. MT RV TTLx2 07 6 .. SD
TTLx2 Square-wave signals, TTL levels with 2-fold interpolation
113.16 mm
1144042-19
AK ERM 2420 900 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
113.16 mm
1144042-20
AK ERM 2420 3600 01 -03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
452.64 mm
1144042-22
AK ERM 2420 2600 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
326.9 mm
1144042-24
AK ERM 2420 512 01 -03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
64.37 mm
1144042-25
AK ERM 2420 400 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
50.29 mm
1144042-26
AK ERM 2420 1200 03S12-03 R 1.00 01 17 67 01 .. MT RV TTLx2 07 6 .. SD
TTLx2 Square-wave signals, TTL levels with 2-fold interpolation
150.88 mm
1144042-27
AK ERM 2420 3850 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
484.07 mm
1144042-55
AK ERM 2420 1400 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
176.03 mm
1144048-02
AK ERM 2480 1024 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
128.75 mm
1144048-03
AK ERM 2480 1200 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
150.88 mm
1144048-04
AK ERM 2480 2048 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
257.5 mm
1144048-05
AK ERM 2480 1024 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
128.75 mm
1144048-06
AK ERM 2480 1400 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
176.03 mm
1144048-07
AK ERM 2480 2048 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
1144048-0R
AK ERM 2480 1024 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
128.75 mm
1144048-11
AK ERM 2480 1200 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
150.88 mm
1144048-13
AK ERM 2480 900 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
113.16 mm
1144048-14
AK ERM 2480 600 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
75.44 mm
1144048-16
AK ERM 2480 900 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
113.16 mm
1144048-19
AK ERM 2480 400 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
50.29 mm
1144048-1K
AK ERM 2480 1696 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
213.24 mm
1144048-28
AK ERM 2480 3850 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
484.07 mm
1144048-29
AK ERM 2480 2600 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
326.9 mm
1144048-2E
AK ERM 2480 360 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
45.26 mm
1144048-2F
AK ERM 2480 600 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
75.44 mm
1144048-30
AK ERM 2480 2600 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
326.9 mm
1144048-32
AK ERM 2480 4800 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
603.52 mm
1144048-34
AK ERM 2480 3600 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
452.64 mm
1144048-41
AK ERM 2480 512 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
64.37 mm
1144048-42
AK ERM 2480 600 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
75.44 mm
1144048-50
AK ERM 2480 720 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
90.53 mm
1144048-51
AK ERM 2480 720 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
90.53 mm
1144048-52
AK ERM 2480 600 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
75.44 mm
1144048-54
AK ERM 2480 1400 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
176.03 mm
1144048-59
AK ERM 2480 512 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
64.37 mm
1144048-60
AK ERM 2480 600 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
75.44 mm
1144048-61
AK ERM 2480 1400 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
176.03 mm
1144048-64
AK ERM 2480 512 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
64.37 mm
1144048-68
AK ERM 2480 3850 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
484.07 mm
1144048-88
AK ERM 2480 3600 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
452.64 mm
1144048-91
AK ERM 2480 512 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
64.37 mm
1144058-01
AK ERM 2283 1200 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
75.44 mm
1144058-02
AK ERM 2283 1440 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
90.53 mm
1144058-03
AK ERM 2283 5200 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
326.9 mm
1144058-04
AK ERM 2283 4096 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
257.5 mm
1144058-05
AK ERM 2283 3392 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
213.24 mm
1144058-06
AK ERM 2283 2800 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
176.03 mm
1144058-07
AK ERM 2283 2400 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
150.88 mm
1144058-08
AK ERM 2283 2048 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
128.75 mm
1144058-09
AK ERM 2283 1800 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
113.16 mm
1144058-10
AK ERM 2283 1024 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
64.37 mm
1144098-01
AK ERM 2980 256 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
77.41 mm
1144098-02
AK ERM 2980 256 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
77.41 mm
1144098-03
AK ERM 2980 400 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
120.96 mm
1144098-04
AK ERM 2980 192 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
58.06 mm
1144098-06
AK ERM 2980 256 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
77.41 mm
1144098-08
AK ERM 2980 300 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
90.72 mm
1144098-10
AK ERM 2980 192 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
58.06 mm
1144098-25
AK ERM 2980 192 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
58.06 mm
1144098-30
AK ERM 2980 300 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
90.72 mm
1144098-31
AK ERM 2980 400 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
120.96 mm
1144098-32
AK ERM 2980 180 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
54.43 mm
1144042-28
AK ERM 2420 400 03S12-03 R 1.00 01 17 67 01 .. MT RV TTLx2 07 6 .. SD
TTLx2 Square-wave signals, TTL levels with 2-fold interpolation
50.29 mm
1144048-2H
AK ERM 2480 1200 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
150.88 mm
1144058-11
AK ERM 2283 2400 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
150.88 mm
1144048-81
AK ERM 2480 1200 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
150.88 mm
1144028-37
AK ERM 2280 2048 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
128.75 mm
1144028-12
AK ERM 2280 3392 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
213.24 mm
1144048-0S
AK ERM 2480 1024 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
128.75 mm
1144048-1R
AK ERM 2480 512 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
64.37 mm
1144048-25
AK ERM 2480 900 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
113.16 mm
1144042-29
AK ERM 2420 600 03S12-03 R 1.00 01 17 67 01 .. MT RV TTLx2 07 6 .. SD
TTLx2 Square-wave signals, TTL levels with 2-fold interpolation
75.44 mm
1144058-12
AK ERM 2283 4096 1SS12-YR R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
257.5 mm
1144028-04
AK ERM 2280 1024 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
64.37 mm
1144048-1J
AK ERM 2480 1696 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
213.24 mm
1144042-30
AK ERM 2420 720 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
90.53 mm
1144042-31
AK ERM 2420 720 03S12-03 R 1.00 01 17 67 01 .. MT RV TTLx2 07 6 .. SD
TTLx2 Square-wave signals, TTL levels with 2-fold interpolation
90.53 mm
1144028-16
AK ERM 2280 1440 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
90.53 mm
1144098-33
AK ERM 2980 192 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
58.06 mm
1144042-32
AK ERM 2420 3600 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
452.64 mm
1144048-36
AK ERM 2480 2048 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
257.5 mm
1144042-17
AK ERM 2420 360 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
45.26 mm
1144048-37
AK ERM 2480 4800 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
603.52 mm
1144042-33
AK ERM 2420 512 03S12-03 R 1.00 01 17 67 01 .. MT RV TTL 07 6 .. SD
TTL Square-wave signals, TTL levels
64.37 mm
1144028-13
AK ERM 2280 1440 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 7 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
90.53 mm
1144048-27
AK ERM 2480 360 01 -03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 6 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
45.26 mm
1144048-1C
AK ERM 2480 360 03S12-03 R 1.00 01 17 67 01 .. .. RA ~1Vpp 07 3 .. SD
1Vpp sinusoidal voltage signals (1 Vpp)
45.26 mm
If you need other models, pls feel free to contact us.

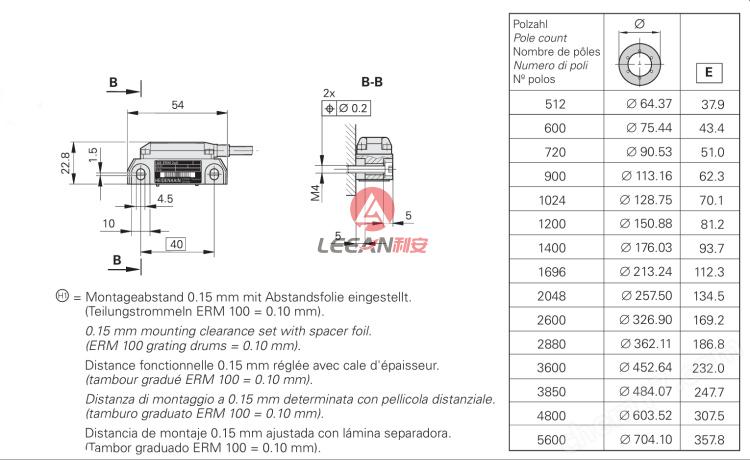

Drawing
Our advantage products:
AB: Input / Output Module / Touch Screen
ABB: Inverter/ I/O Module
GE: IC200/ 693 / 694 etc. series
SIEMENS: 6ES7 / 6EP / 6AV / 6SE etc.
EBMPAPST / Zhiel Abegg : Centrifugal Cooling fan (Use for ABB/SIEMENS inverters)
Mitsubishi / FANUC / Yaskawa / Panasonic / Oriental Motor: Servo Motor & Servo Drive
Honeywell:Sensor/Detector/Transimitter
Related Products
