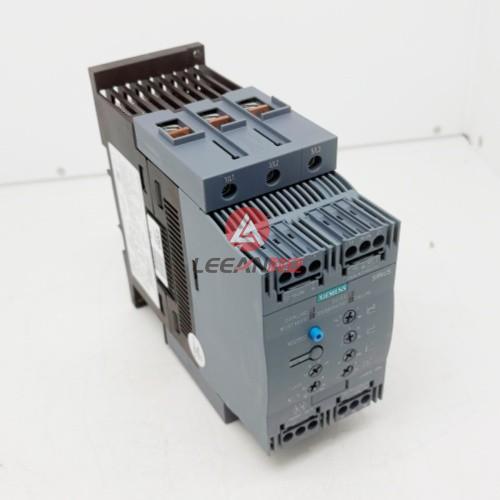

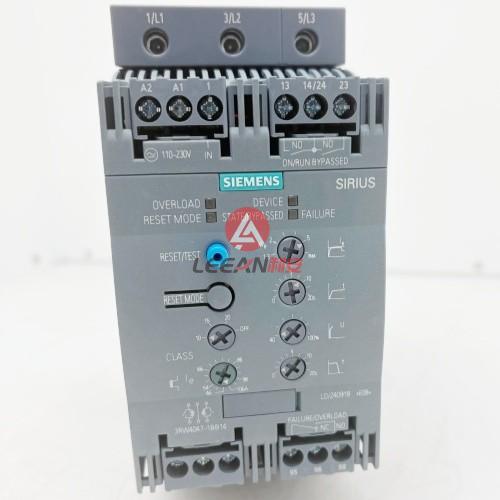

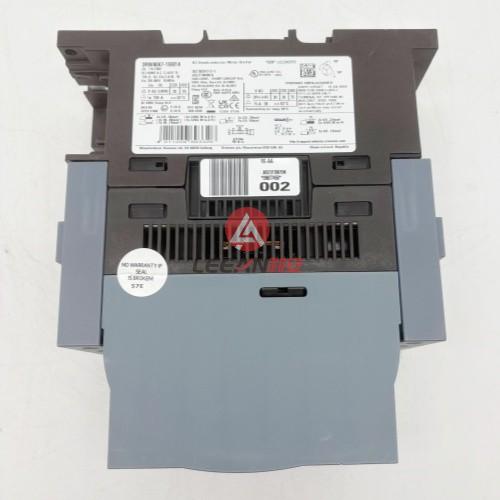

SIEMENS 55KW SIRIUS 3RW40 Soft Starter 3RW4047-1BB14 Circuit Breaker Softstarters 106A 55KW 400V New
Overview
The SIRIUS 3RW40 Basic Performance soft starters are suitable for soft starting and stopping of three-phase asynchronous motors. Thanks to 2-phase control, not only is the current kept at minimum values in all three phases throughout the entire ramp-up time, but interfering direct current components are also eliminated. This not only enables the 2-phase starting of motors up to 55 kW (at 400 V), but also avoids the current and torque peaks that occur, for example, with wye-delta starters
SIRIUS 3RW30/40 soft starters are the world's most compact two-phase controlled soft starters in the power range from 1.5 kW (at 400 V) to 250 kW (at 400 V) thanks to their innovative control principle. Their compact design helps you save space in the control panel configurations. SIRIUS 3RW30/40 soft starters are the ideal solution for simple applications of all kinds. The 3RW soft starters should always be designed on the basis of the required rated operational current of the motor. The motor ratings listed in the selection and ordering data are rough guide values and designed for basic starting conditions (CLASS 10).
The 3RW4047-1BB14 is a 480V-rated control module from Siemens, designed for use in pneumatic systems. It has a maximum operating temperature of 60°C and a minimum operating temperature of -25°C. The module is rated for 106A of current and has a control voltage of 230V. It is packaged in a 200-case type and measures 188mm in length and 170mm in overall depth. The module is rated for use in IP00 environments.
Features
4 Analog Outputs2-phase control for standard applications
Screw & Srping type terminals
Parameterization over rotary setting elements
Integrated motor overload protection and intrinsic device protection
Electrical robustness
For drives in performance classes from 1.5 to 250 kW
Functional principle of the SIRIUS 3RW30 and 3RW40 soft starters
The SIRIUS 3RW30 and 3RW40 soft starters have two antiparallel thyristors in two out of the three phases. One thyristor for the positive half-wave and one for the negative half-wave is provided in each phase (refer to Fig. "Phase angle control and schematic diagram of a two-phase controlled soft starter with integral bypass contacts"). The current in the third, uncontrolled phase is the sum of the currents in the controlled phases.
The rms value of the motor voltage is increased (from a settable starting voltage) to the rated motor voltage within a definable starting time by means of the phase angle control.
The motor current changes in proportion to the voltage applied to the motor. As a result, the starting current is reduced by the factor of this voltage.
There is a quadratic relationship between the torque and the voltage applied to the motor. As a result, the starting torque is reduced quadratically in relation to this voltage.

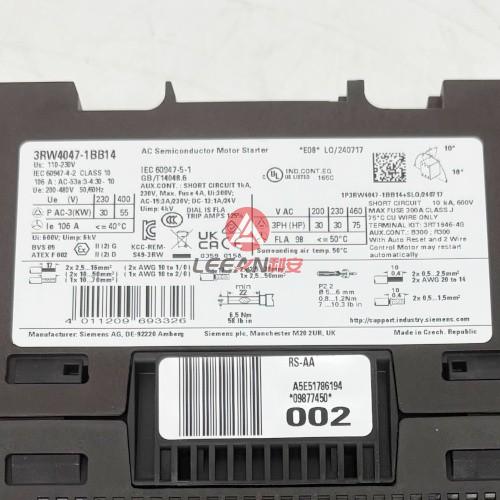

| Brand | SIEMENS |
| Type |
Soft Starter |
| Model |
3RW4047-1BB14 |
| Specifications |
Control Voltage:110 to 230 VAC Current Rating:106 A Family Name:3RW Family IP Rating:IP00 Maximum Operating Temperature:60 °C Minimum Operating Temperature:-25 °C Mounting Type:DIN Rail/Panel Mount Phase:2 Phase |
| Condition | New |
| Country of Origin |
Czech Rep. |
| Net Weight | 2KG |
| Warranty | One Year |
| Similar Soft Starters |
3RW3013-1BB04 1.5KW 24V 3RW3014-1BB04 3KW 24V 3RW3016-1BB04 4KW 24V 3RW3017-1BB04 5.5KW 24V 3RW3018-1BB04 7.5KW 24V 3RW3026-1BB04 11KW 24V 3RW3027-1BB04 15KW 24V 3RW3028-1BB04 18.5KW 24V 3RW3036-1BB04 22KW 24V 3RW3037-1BB04 30KW 24V 3RW3038-1BB04 37KW 24V 3RW3046-1BB04 45KW 24V 3RW3047-1BB04 55KW 24V 3RW3013-1BB14 1.5KW 220V 3RW3014-1BB14 3KW 220V 3RW3016-1BB14 4KW 220V 3RW3017-1BB14 5.5KW 220V 3RW3018-1BB14 7.5KW 220V 3RW3026-1BB14 11KW 220V 3RW3027-1BB14 15KW 220V 3RW3028-1BB14 18.5KW 220V 3RW3036-1BB14 22KW 220V 3RW3037-1BB14 30KW 220V 3RW3038-1BB14 37KW 220V 3RW3046-1BB14 45KW 220V 3RW3047-1BB14 55KW 220V 3RW4024-1BB14 5.5KW 220V 3RW4024-1BB04 5.5KW 24V 3RW4026-1BB14 11KW 220V 3RW4026-1BB04 11KW 24V 3RW4027-1BB14 15KW 220V 3RW4027-1BB04 15KW 24V 3RW4028-1BB14 18.5KW 220V 3RW4028-1BB04 18.5KW 24V 3RW4036-1BB14 22KW 220V 3RW4036-1BB04 22KW 24V 3RW4037-1BB14 30KW 220V 3RW4037-1BB04 30KW 24V 3RW4038-1BB14 37KW 220V 3RW4038-1BB04 37KW 24V 3RW4046-1BB14 45KW 220V 3RW4046-1BB04 45KW 24V 3RW4047-1BB14 55KW 220V 3RW4047-1BB04 55KW 24V 3RW3013-1BB04 3RW3013-1BB14 3RW3014-1BB04 3RW3014-1BB14 3RW3018-1BB04 3RW3018-1BB14 3RW3026-1BB04 3RW3026-1BB14 3RW3027-1BB04 3RW3027-1BB14 3RW3028-1BB04 3RW3028-1BB14 3RW3036-1BB04 3RW3036-1BB14 3RW3037-1BB14 3RW3037-1BB04 3RW3038-1BB14 3RW3038-1BB04 3RW3046-1BB14 3RW3046-1BB04 3RW3047-1BB14 3RW3047-1BB04 3RW3012-1BB04
If you need other models,pls feel free to contact us. |

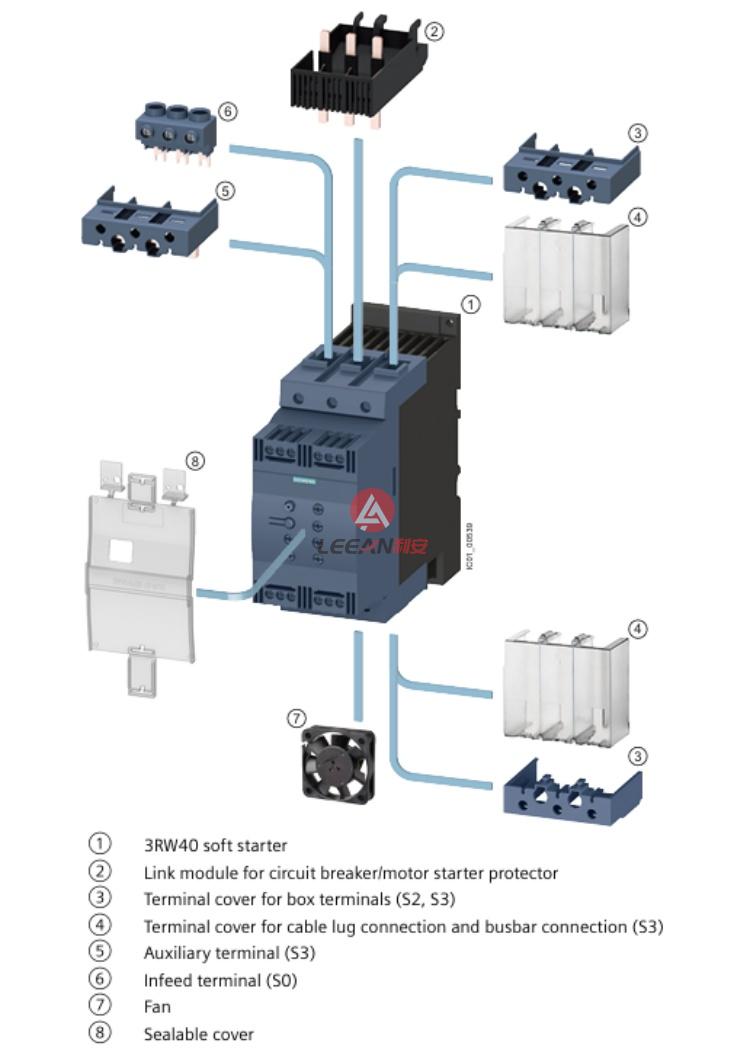

Accessories for 3RW40 Soft Starter

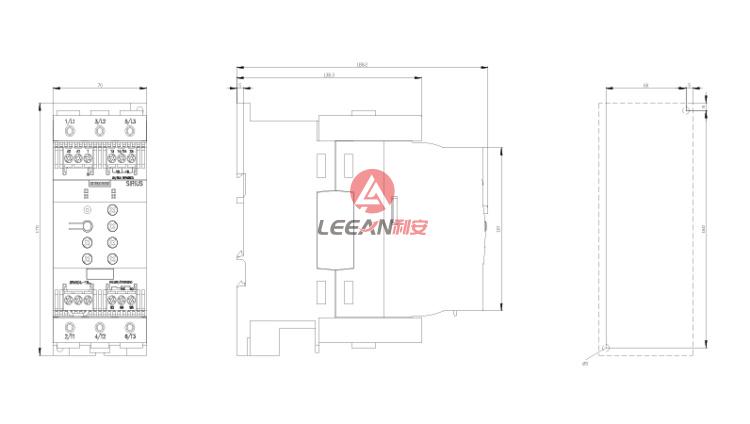

Dimensions
