Description

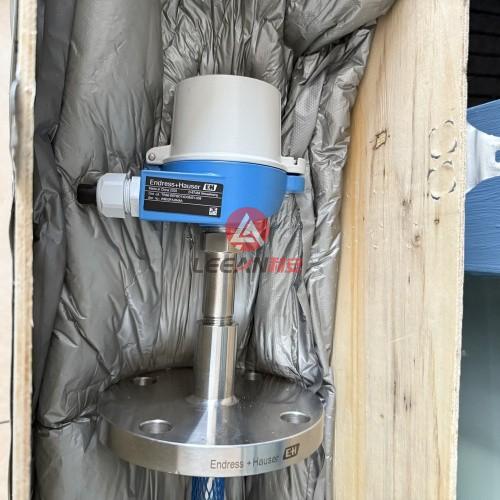

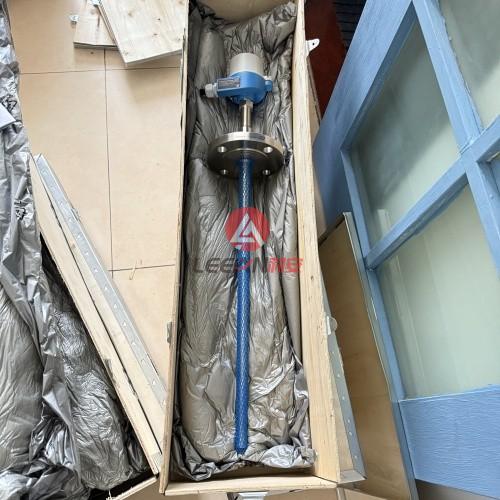

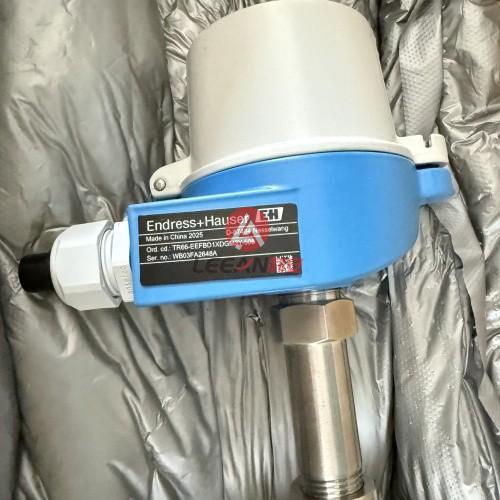

E+H Endress Hauser Micropilot Temperature Transmitter TR66-EEFBD1XDGM3Y-508 PT100 Thermometer New
Overview
TR66
Explosion-proof Pt100 Thermometer
Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry
Applications
• Heavy duty applications
• Oil & Gas processing industry
• Measuring range:
• Resistance insert (RTD):–200 to 600 °C (–328 to 1 112 °F)
• Thermocouple (TC):–40 to 1 100 °C (–40 to 2 012 °F)
• Static pressure range up to100 bar (1 450 psi)
• Degree of protection up to IP68
Head transmitter
All Endress+Hauser transmitters are available with enhanced accuracy and reliability compared to directly wired sensors. Easy customizing by choosing one of the following outputs and communication protocols:
• Analog output 4 to 20 mA
• HART®
• PROFIBUS® PA
• FOUNDATION Fieldbus
Your benefits

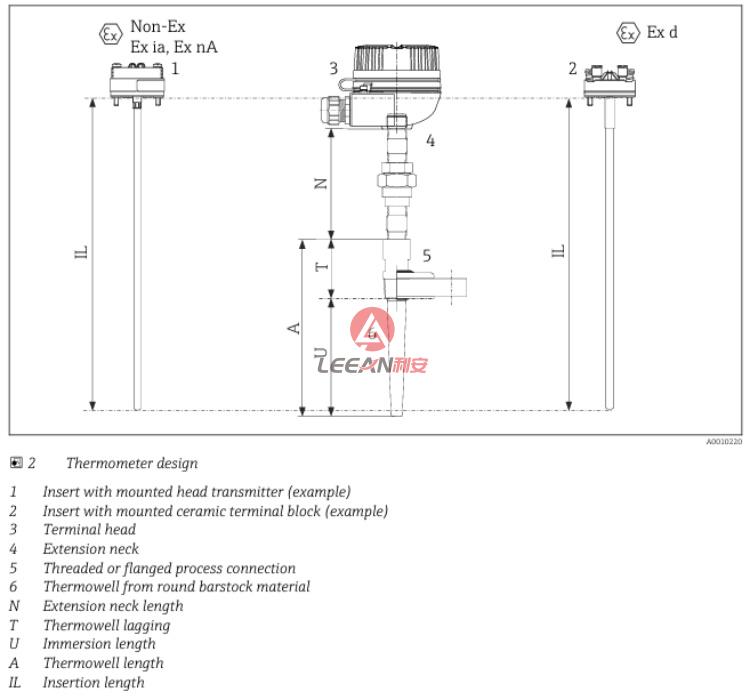

• High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
• High degree of insert compatibility and design as per DIN 43772
• Extension neck, nipple union version, to protect the head transmitter from overheating
• Types of protection for use in hazardous locations:
• Intrinsic Safety (Ex ia)
• Flameproof (Ex d)
• Non-sparking (Ex nA)
• Dust ignition proof (protection by enclosure)
Details
Brand :
E+H
Model :
TR66-EEFBD1XDGM3Y-508
Product type :
Temperature Transmitter
Output:
4-20MA HART
Voltage:
10.5-35 VDC
S - Enclosure Material :
Stainless Steel
Shipping weight :
15 Kg
Modular design
