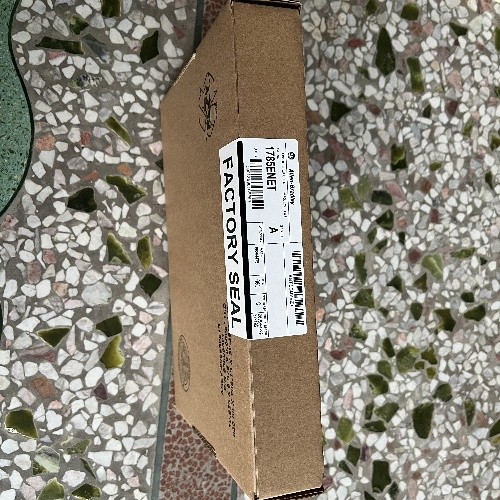

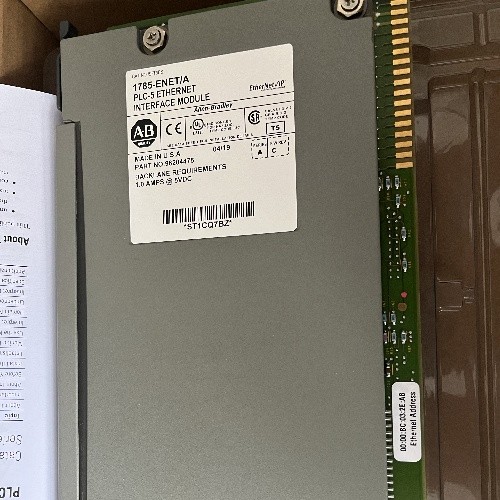

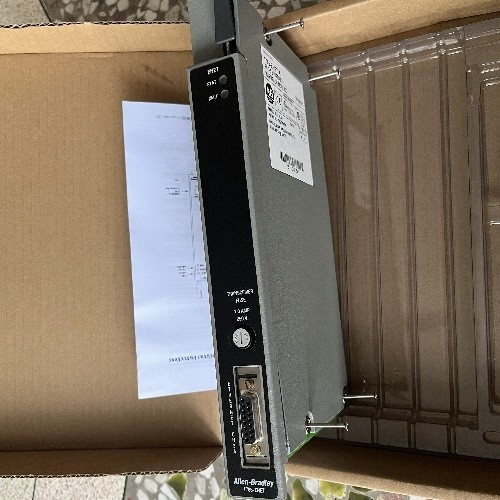

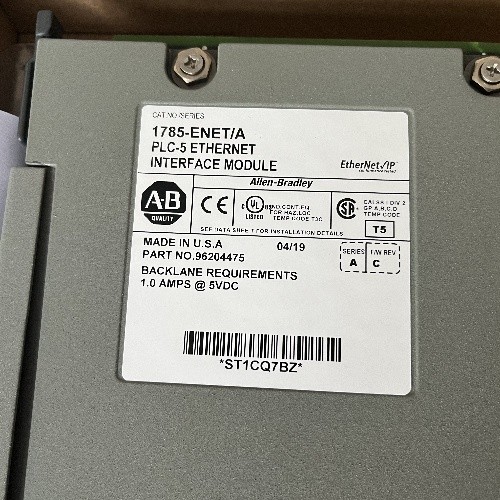

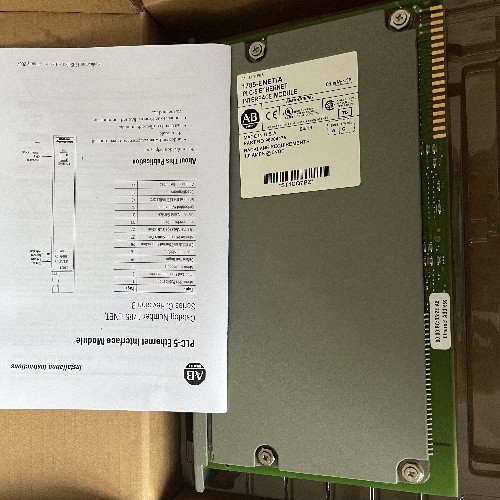

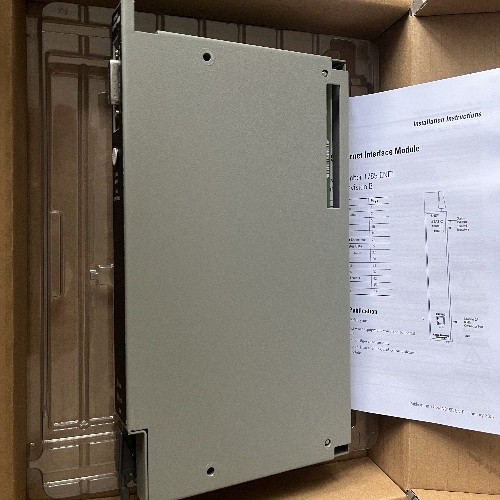

AB Allen Bradley PLC-5 Ethernet Interface Module 1785-ENET New Factory Sealed
Description of Ethernet Interface Module 1785-ENET
Type:Module, Interface,
PLC-5,
Model : 1785-ENET,
TCP/IP=64, 10/100Mbps, 2.2A
Brand:Allen-Bradley
About the Module
The PLC-5 Ethernet interface module is an EtherNet/IP-compliant, single-slot module that attaches to the side of any PLC-5 controller, series B or later, to provide Ethernet connectivity to the controller.
Use ControlLogix Devices for Communication
The Ethernet interface module, series A, revision E or later, with a PLC-5 controller can communicate over the Ethernet network with ControlLogix devices or through a ControlLogix Ethernet (1756-ENET) module to other PLC-5 controllers.
To communicate through a 1756-ENET module, you configure the multihop feature of a MSG instruction from the Ethernet PLC-5 controller (or controller with 1785-ENET module) to the target device. To do this, you need RSLogix 5 programing software.
Similiar Modules
1785-L80B,1785-L80C15,1785-L60B,1785-L40E,1785-L40B,1785-L40C15,1785-L40L,1785-LT4, 1785-LT3, 1785-LT,1785-LT2
1785-ACC5LB,1785-LTR2,1785-LTR,1785-L11B,1785-L40C,1785-KAS,1785-KA5,1785-KE,1785-L11B,1785-LTB,1785-L40C15,1785-L20C15,1785-L80C15,1785-L20E,1785-L30B,1785-L80B,1785-L20B,1785-L20E,1785-L30E,1785-L80E,1785-L80C15,1785-L80E,1785-ME16,1786-BNC,1786-BNCJ
ControlLogix Digital I/O Modules
Catalog Numbers 1756-IA8D, 1756-IA16, 1756-IA16I, 1756-IA32, 1756-IB16, 1756-IB16D, 1756-IB16I, 1756-IB16IF,
1756-IB32, 1756-IC16, 1756-IG16, 1756-IH16I, 1756-IM16I, 1756-IN16, 1756-IV16, 1756-IV32, 1756-OA8, 1756-OA8D,
1756-OA8E, 1756-OA16, 1756-OA16I, 1756-OB8, 1756-OB8EI, 1756-OB8I, 1756-OB16D, 1756-OB16E, 1756-OB16I,
1756-OB16IEF, 1756-OB16IEFS, 1756-OB16IS, 1756-OB32, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-ON8, 1756-OV16E,
1756-OV32E, 1756-OW16I, 1756-OX8I
Power Supply Module 1771-P3 1771-P4 1771-P5 1771-P5E Input Voltage Requirements
Power Supply Module
Input Voltage
Requirements Output Current
1771-P3
120V ac (97-132V ac)
3A @ 5V
1771-P4
120V ac (97-132V ac)
up to 8A @ 5V
1771-P5
24V dc (20.5-30V dc)
up to 8A @ 5V
1771-P5E
24V dc (20.5-30V dc)
up to 8A @ 5V
1756 ControlLogix I/O Specifications
|
AC Digital Catalog Numbers |
1756-IA8D, 1756-IA16, 1756-IA16K, 1756-IA16I, 1756-IA16IK, 1756-IA32, 1756-IA32K, 1756-IM16I, 1756-IM16IK, 1756-IN16, 1756-OA8, 1756-OA8D, 1756-OA8E, 1756-OA16, 1756-OA16K, 1756-OA16I, 1756-OA16IK, 1756-ON8 |
|
DC Digital Catalog Numbers |
1756-IB16, 1756-IB16K, 1756-IB16D, 1756-IB16DK, 1756-IB16I, 1756-IB16IK, 1756-IB16IF, 1756-IB16IFK, 1756-IB16ISOE, 1756-IB16ISOEK, 1756-IB32, 1756-IB32K, 1756-IC16, 1756-IG16, 1756-IH16I, 1756-IH16ISOE, 1756-IV16, 1756-IV16K, 1756-IV32, 1756-IV32K, 1756-OB8, 1756-OB8EI, 1756-OB8I, 1756-OB16D, 1756-OB16DK, 1756-OB16E, 1756-OB16EK, 1756-OB16I, 1756-OB16IEF, 1756-OB16IEFK, 1756-OB16IEFS, 1756-OB16IS, 1756-OB32, 1756-OB32K, 1756-OC8, 1756-OG16, 1756-OH8I, 1756-OV16E, 1756-OV32E |
|
Safety Catalog Numbers |
1756-IB16S, 1756-OBV8S |
|
Contact Catalog Numbers |
1756-OW16I, 1756-OX8I |
|
Analog Catalog Numbers |
1756-IF6CIS, 1756-IF6I, 1756-IF8, 1756-IF8K, 1756-IF8I, 1756-IF8IK, 1756-IF16, 1756-IF16K, 1756-IF4FXOF2F, 1756-IF4FXOF2FK, 1756-IR6I, 1756-IRT8I, 1756-IRT8IK, 1756-IR12, 1756-IR12K, 1756-IT6I, 1756-IT6I2, 1756-IT16, 1756-IT16K, 1756-OF4, 1756-OF4K, 1756-OF6CI, 1756-OF6VI, 1756-OF8, 1756-OF8K, 1756-OF8I, 1756-OF8IK |
|
HART Interface Catalog Numbers |
1756-IF8H, 1756-IF8HK, 1756-IF8IH, 1756-IF8IHK, 1756-IF16H, 1756-IF16HK, 1756-IF16IH, 1756-IF16IHK, 1756-OF8H, 1756-OF8HK, 1756-OF8IH, 1756-OF8IHK |
|
Specialty Catalog Numbers |
1756-CFM, 1756-CMS1B1, 1756-CMS1C1, 1756-HSC, 1756-LSC8XIB8I, 1756-LSC8XIB8IK, 1756-PLS |

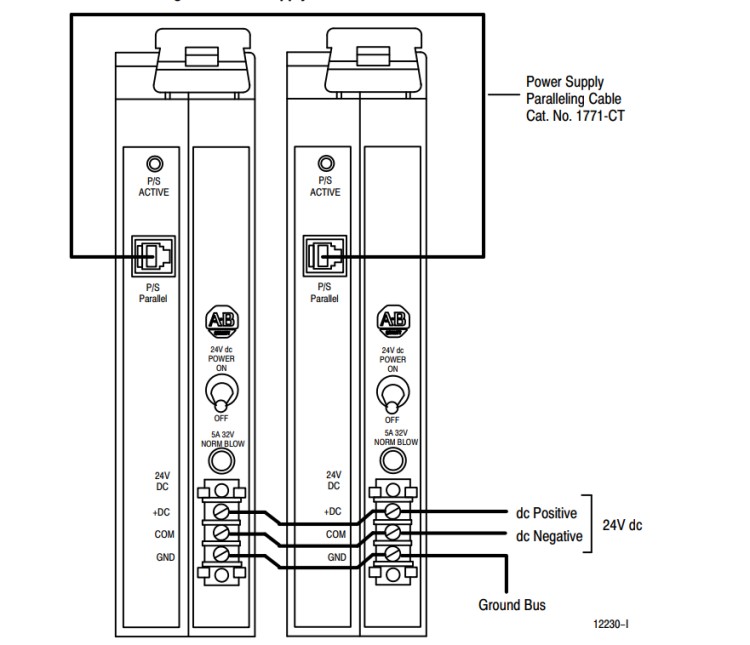

Drawing of Power Supply Modules
