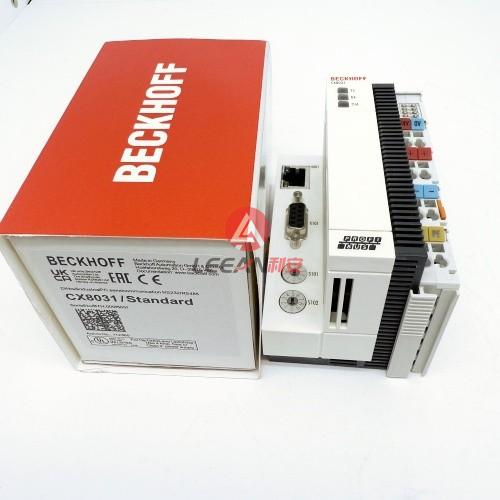

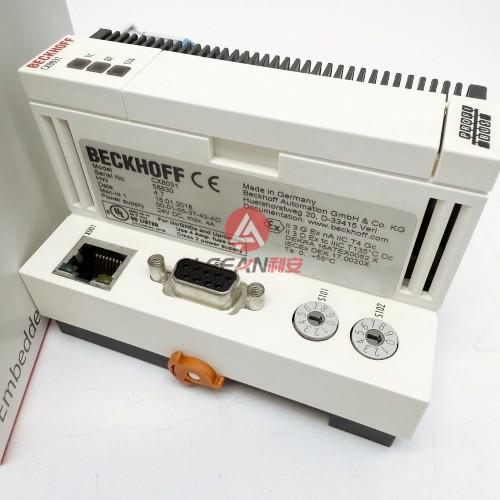

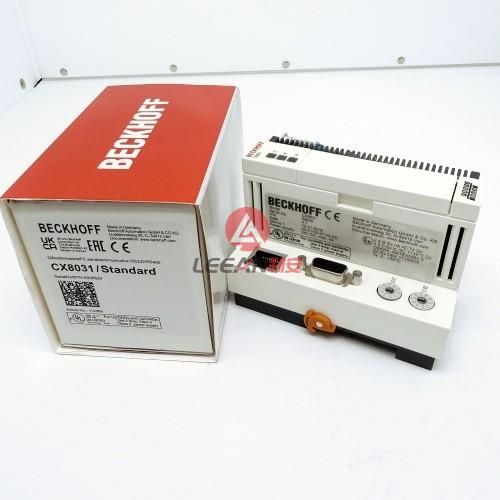

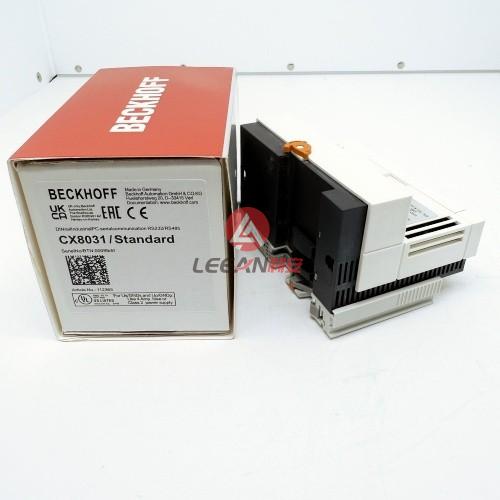

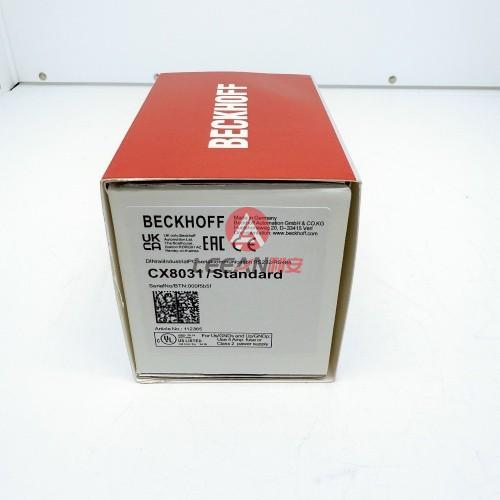

Beckhoff Profibus Slave Interface Module CX8031 Controller Power Supply 24VDC 4A New

Description

Beckhoff Profibus Slave Interface Module CX8031 Controller Power Supply 24VDC 4A New
Overview:

CX80xx is a device family of programmable controllers with 32-bit ARM-based CPU, which can be used for processing of PLC programs or as slave devices for higher-level fieldbus systems. Unlike with the non programmable EtherCAT couplers of the EK series, which only act as gateway between the associated fieldbus system and the connected EtherCAT terminals, the CX80xx is programmable and able to run its own control program.

The devices from the CX80xx series represent a further development of the well-known and proven 16-bit microcontroller-based Bus Terminal Controllers from the BC and BX series including more efficient 32-bit processors. As with the BC/BX, it is also ensured in the case of the CX80xx that the control and the local program continue to be executed in the case of interruption of the higher-level fieldbus system. The CX80xx devices can therefore be used as local controllers. Alternatively, Bus Terminals (K-bus) or EtherCAT Terminals (E-bus) can be connected; the CX80xx automatically recognizes which terminal system is connected during the start-up phase. The use of EtherCAT gives rise to further options, such as the realization of different topologies, the integration of further bus systems such as CANopen, PROFIBUS and PROFINET and – with the EtherCAT Box Modules – connection to the IP67 world.

CX8031 | Embedded PC with Arm9 and PROFIBUS slave

The CX8031 is a control system with PROFIBUS slave interface. The PROFIBUS address is set via two rotary selection switches. The CX8031 offers automatic baud rate detection. K-bus or E-bus terminals can be attached as required; the CX8031 automatically recognizes the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT via the additional Ethernet interface.

Specification

Brand:	BECKHOFF
Product Name:	PROFIBUS slave Interface Module
Model:	CX8031
Condition:	New
Weight (kg):	0.5 Kg
Package:	Original box.
Country of Origin:	Germany
Warranty	One Year
Similar items	CX1100-0930 CX1100-0920 CX1100-091 CX1500-M310 CX1100-0004 CX1100-002 CX9020-0111 CX9020-0112 CX9020-0115 CX5020-0111 CX5020-0110 CX5020-0112 CX5020-0121 CX5010-0111 CX2100-0004 CX2100-0904 CX2900-0035 KL9010 EL2008 EL5101 EL5001 EK1101 EK1110 EK1100 EL1819 EL9100 EL1008 EL1809 EL2809 EL9410 EK1122 EK1100 KL1408 KL2408 EL9011 EL1889 EL2889 EL1088 EL2088 EL6751 EL6731 EL3064 EL4004 EL3154 EL3024 EL3058 EL2624 EL1004 EL1008 EL1088 EL1014 EL1018 If you need other items, pls feel free to contact us.

Fieldbus interface

The variants from the CX80xx series differ by their fieldbus interfaces. Various versions cover the most important fieldbus systems:
CX8010:EtherCATSlave
CX8030:PROFIBUS DP Master
CX8031:PROFIBUS DP Slave
CX8050:CAN Master
CX8051:CANopen Slave
CX8080:RS232/485
CX8090:Ethernet (RT-Ethernet, EAP, ModbusTCP, TCP/IP, UDP/IP, Web Services)
CX8091:BACnet IP/OPC UA
CX8093:PROFINET RT Device (Slave)
CX8095:Ethernet/IP Slave
CX8097:Sercos III Slave
