Description

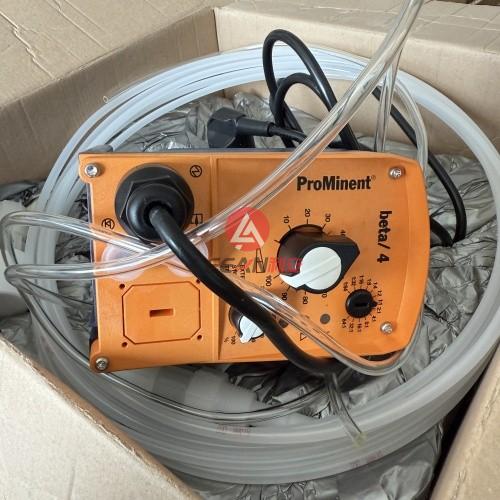

ProMinent Fluid Control Beta B Solenoid Diaphragm Metering Pump BT4B1602PVT2000UA050000 New
Overview:

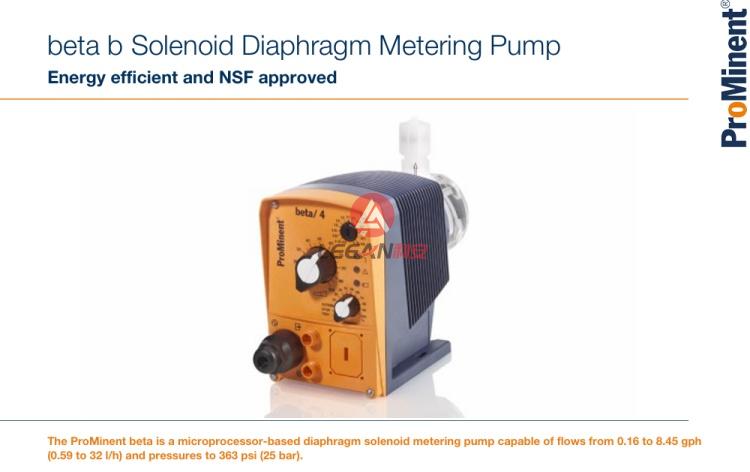

The ProMinent beta b is a microprocessor-based diaphragm solenoid metering pump capable of flows from 0.16 to 8.45 gph (0.59 to 32 l/h) and pressures to 363 psi (25 bar).
Feed rate is determined by stroke length and stroke frequency. Stroke length is adjusted from 0% to 100% with a 10:1 turndown. Stroke frequency is adjusted in 10% increments from 10-100. (Optional) External control via a standard 4-20 mA or pulse contact signal.
Features and Benefits
Certified to NSF/ANSI 61 (acrylic or PVDF liquid ends)
50% less power consumption
Auto-degassing liquid ends ideal for off-gassing chemicals such as bleach
Capable of handling up to 3000 cps of viscous media such as polymers
Integral bleed valve eliminates priming issues
Continuous monitoring of chemical supply with optional dual stage level switch
Adjustable stroke length and stroke frequency
Fault and pacing relays optional
Standard external control via potential-free contacts with pulse step-up and step-down to adapt to existing signal transducers of 64:1 to 1:64
(Optional) External control via standard 4-20 mA and potential-free contacts with pulse step-up and step-down of 32:1 to 1:32
Technical Details
Continuous stroke length adjustment from 0-100% (recommended 30-100%)
Supplied in PP, Acrylic, PVDF, PTFE, stainless steel
Patented deaeration for PP, Acrylic and PVDF
Self-degassing dosing head type in PP and Acrylic
HV liquid end for highly viscous media
Power supply 100 - 230 V as standard
10-setting stroke frequency adjustment from 10-100 %
External control via voltage-free contacts
Connector for 2-stage level switch
3 LED display for operation, warning, and fault indication
Specification:
100-230V 50/60HZ
12.2W 0.35-0.2A
2.2L/H 16bar
0.58gph 232psi
IP66/NE
Brand
ProMinent
Type
Solenoid Diaphragm Metering Pump
Model
BT4B1602PVT2000UA050000
Warranty
One year
Power Supply
Dosing Rate
