New Allen-Bradley 24Vdc Source Compact Digital DC Output Module 1769-IQ32
  1. New Allen-Bradley 24Vdc Source Compact Digital DC Output Module 1769-IQ32
  2. New Allen-Bradley 24Vdc Source Compact Digital DC Output Module 1769-IQ32
  3. New Allen-Bradley 24Vdc Source Compact Digital DC Output Module 1769-IQ32

New Allen-Bradley 24Vdc Source Compact Digital DC Output Module 1769-IQ32

Compact output Module  , 1769 Input Output modules  , Digital Output Module
Send Inquiry Live chat

Description

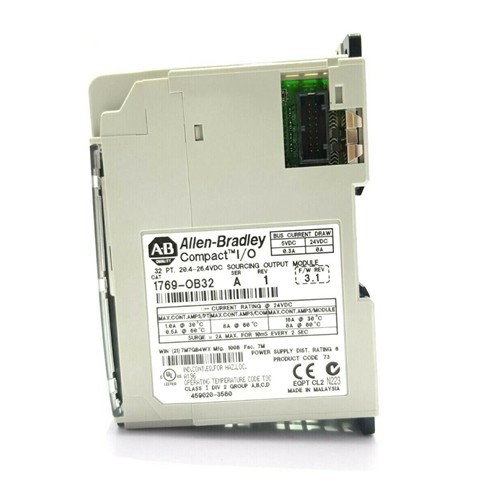

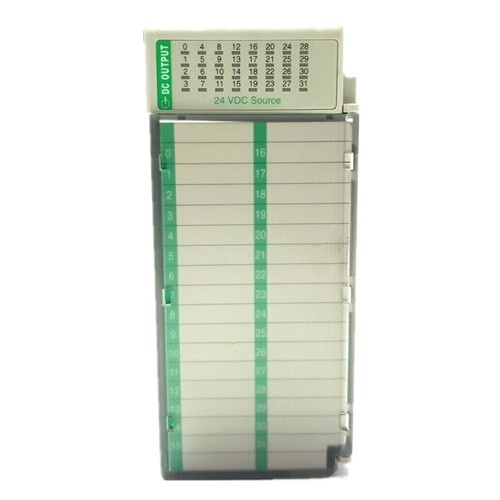

New Allen-Bradley 24Vdc Source Compact Digital DC Output Module 1769-IQ32



Description of Output Module 1769-OB32

The 1769-OB32 module is a compact solid-state output module that has been included in the 1769 Bulletin by Allen-Bradley. This module has been designed to operate in several applications while occupying less space than regular modules of the same type. This module comes with different options and parts that perform different functions.

Allen-Bradley 1769-OB32 CompactLogix 32-Point 24V DC Solid-state Source Output Module, Number of Outputs: 32; Voltage Category/Type, Output: 24V DC, sourcing; Voltage Range: 20.4-26.4V DC; Signal Delay (max.) – resistive load: turn-on = 0.1 ms, turn-off = 1.0 ms; Leakage Current, Off-State Output, Max.: 1.0 mA @ 26.4V AC; Current per Output, Max.: 0.5 A @ 60 °C (140 °F), 1.0 A @ 30 °C (86 °F); Current per Module, Max.: 8.0 A @ 60 °C (140 °F), 16.0 A @ 30 °C (86 °F); Backplane Current @ 5.1V: 300 mA.


Compact output module can be used as local and distributed output for a CompactLogix or MicroLogix 1500 controller. Each 1769-OB32 module includes a built-in removable terminal block with finger-safe cover for connections to I/O sensors and actuators. The 1769-OB32 module is a 1.5-slot wide module. The 1769OB32 module may not be more than 8 modules away from the power supply or controller.


Technical Datasheet of Input Module 1769-OB32

Attribute
1769-OB32
Inputs
32 (8 points/group)
Voltage category
24V DC source
Storage Temperature
-40°C to +85°C (-40°F to +185°F)
Operating Temperature
0°C to +60°C (32°F to +140°F)
Operating Humidity
5% to 95% non-condensing
Operating Altitude
2000 meters (6561 feet)
Vibration
Operating: 10 to 500 Hz, 5G, 0.030 inches maximum peak-to-peak
Relay Operation: 2G
Shock
Operating: 30G panel mounted (20G DIN rail mounted)
Relay Operation: 7.5G panel mounted (5G DIN rail mounted)
Non-Operating: 40G panel mounted (30G DIN rail mounted)

Off-state current, max 1)C-UL certified (under CSA C22.2 No. 142)
2)UL 508 listed
3)CE and C-Tick compliant for all applicable directives

Hazardous Environment Class
Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL
1604, C-UL under CSA C22.2 No. 213)

Approximate Shipping Weight
(with carton)
450g (0.992 lbs.)

The 1769 Compact I/O modules can be used in these applications:

1) With a 1769 CompactLogix controller
2) For expansion I/O in a MicroLogix 1500 controller assembly
3) In an assembly with a 1769-ADN DeviceNet adapter
4) In an assembly with a 1769-AENTR Ethernet adapter

Controller:

1769-L24ER-QB1B,1769-L24ER-QBFC1B,1769-L27ERM-QBFC1B,1769-L30ER,1769-L30ERM,1769-L30ER-NSE,1769-L33ER ,1769-L33ERM,1769-L36ERM ,

1769-L23E-QB1B,1769-L23E-QBFC1B,1769-L23-QBFC1B,1769-L23E-QB1B ,1769-L35CR,1769-L35E ,1769-L32C ,1769-L32E,1769-L31,1768-L43 ,1768-L45


Each 1769 Compact I/O module has a distance rating. In 1769 systems, the distance rating is the number of modules between the specific module and the 1769 power supply. In a 1768 system, the distance rating is the number of modules between the specific I/O module and the 1768 controller.




Available 1769 Compact I/O Modules

I/O Type
Models of Modules
AC digital
1769-IA8I
1769-IA16
1769-IM12
1769-OA8
1769-OA16
DC digital
1769-IG16
1769-IQ16
1769-IQ16F
1769-IQ32
1769-IQ32T
1769-IQ6XOW4
1769-OB8
1769-OB16
1769-OB16P
1769-OB32
1769-OB32T
1769-OG16
1769-OV16
1769-OV32T
Contact
1769-OW8
1769-OW8I
1769-OW16
Analog
1769-IF4
1769-IF4I
1769-IF4XOF2
1769-IF4FXOF2F
1769-IF8
1769-IF16C
1769-IF16V
1769-IR6
1769-IT6
1769-OF2
1769-OF4
1769-OF4CI
1769-OF4VI
1769-OF8C
1769-OF8V
Specialty
1769-ARM
1769-ASCII
1769-BOOLEAN
1769-HSC

1769-IA8I, 1769-IA16, 1769-IM12, 1769-OA8,1769-OA16, 1769-IQ16, 1769-IQ16F, 1769-IQ32,1769-IQ6XOW4, 1769-OB8, 1769-OB16, 1769-OB16P, 1769-OB32, 1769-OV16, 1769-OW8, 1769-OW8I, 1769-OW16,1769-IF4, 1769-IF4XOF2, 1769-IR6, 1769-IT6,1769-ARM, 1756-HSC,1769-IG16, 1769-IQ32T, 1769-OB32T,

1769-OG16, 1769-OV32T,1769-IF4I, 1769-IF8, 1769-IF16C, 1769-IF16V, 1769-OF2, 1769-OF4CI, 1769-OF4VI, 1769-OF8C, 1769-OF8V, 1769-IF4FXOF2F
1769-ASCII, 1769-BOOLEAN


I/O Module Overview
Each I/O module includes a built-in removable terminal block with finger-safe cover for connections to I/O sensors and actuators. The terminal block is behind a door at the front of the module. I/O wiring can be routed from beneath the module to the I/O terminals.


Our advantage products:


AB:  Input / Output Module / Touch Screen
ABB:  Inverter/ I/O Module
GE: IC200/ 693 / 694 etc. series
SIEMENS: 6ES7 / 6EP / 6AV / 6SE etc.
EBMPAPST / Zhiel Abegg :  Centrifugal Cooling fan (Use for ABB/SIEMENS inverters)
Mitsubishi / FANUC / Yaskawa / Panasonic / Oriental Motor: Servo Motor & Servo Drive
