NEW 200W Omron AC Driver R88D-1SN02H-ECT Sysmac general purpose servo drive

Description

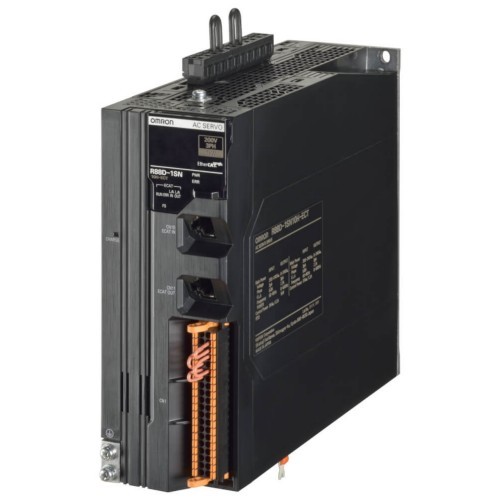

NEW 200W Omron AC Driver R88D-1SN02H-ECT Sysmac general purpose servo drive

---

Description of R88D-1SN08H-ECT

Brand	Omron
Servo Drive Model	R88D-1SN02H-ECT
Servo control method	EtherCAT
Drive supply voltage	230 V
Phase	Single phase
Rated output	0.2KW
Weight	2kg

---

Sysmac general purpose servo

• 23-bit resolution encoder
• Fast and secure screw-less push-in in all connectors
• Pluggable connectors for easy pre-wiring and system maintenance
• Direct wiring of I/O signals
• Embedded relay for direct motor brake control
• Improved loop control for overshoot and quick setting time
• Safety function built-in: Network Safe Torque Off: PLd (EN ISO 13849-1), SIL2 (IEC 61508) Hardwired Safe Torque Off: PLe (EN ISO 13849-1), SIL3 (IEC 61508)

Ratings

• 230 VAC single-phase: 100 W to 1.5 kW
• 400 VAC three-phase: 600 W to 15 kW

---

Fits to below servo motors

R88M-1AM75030T-BS2
1SA AC servo motor, 750 W, 230 VAC, 3000 rpm, 2.39 Nm, absolute encoder, with brake

R88M-1AM75030T-S2
1SA AC servo motor, 750 W, 230 VAC, 3000 rpm, 2.39 Nm, absolute encoder

R88M-1M75030H-BS2
1S AC servo motor, 750 W, 230 VAC, 3000 rpm, 2.39 Nm, incremental encoder, with brake

R88M-1M75030H-S2
1S AC servo motor, 750 W, 230 VAC, 3000 rpm, 2.39 Nm, incremental encoder

R88M-1M75030T-BS2
1S AC servo motor, 750 W, 230 VAC, 3000 rpm, 2.39 Nm, absolute encoder, with brake

R88M-1M75030T-S2
1S AC servo motor, 750 W, 230 VAC, 3000 rpm, 2.39 Nm, absolute encoder

---

Accessories

R88A-CN101A

1S motor connector (CNC) for 230 V, 0.1 to 1 kW

R88A-CN101B

1S Brake interlock connector (CN12)

R88A-FI1S108-SE

1S Servo RFI filter; 230 VAC single-phase, for 800 W drives

R88A-SC011S-E

1S series cable clamp A. Used in 230 V drives up to 750 W

R88A-FI1SA108-SE

1SA Servo RFI filter; 230 VAC single-phase, for 200 W to 800 W drives

R88A-RR30020

External regeneration resistor 60 W, 20 Ohm

---

Related Omron Servo Drive

R88D-1SN01H-ECT
R88D-1SN02H-ECT
R88D-1SN04H-ECT
R88D-1SN08H-ECT
R88D-1SN10H-ECT
R88D-1SN15H-ECT
R88D-1SN20H-ECT
R88D-1SN30H-ECT

R88D-1SN01L-ECT
R88D-1SN02L-ECT
R88D-1SN04L-ECT
R88D-1SNA5H-ECT

---

System Configuration

---
