Description

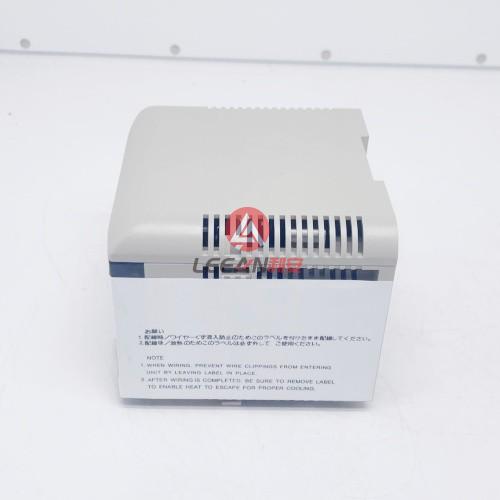

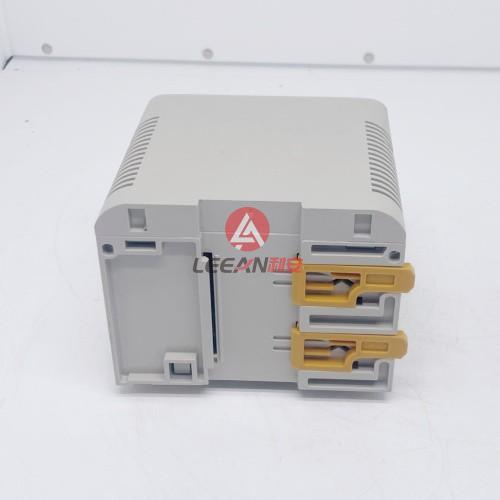

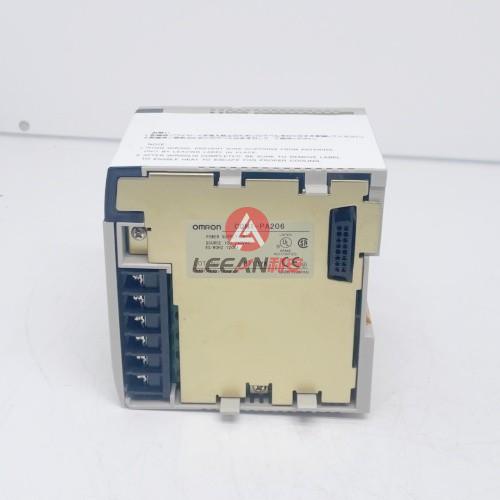

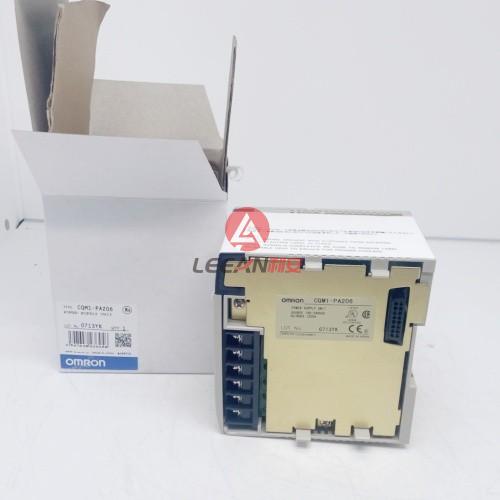

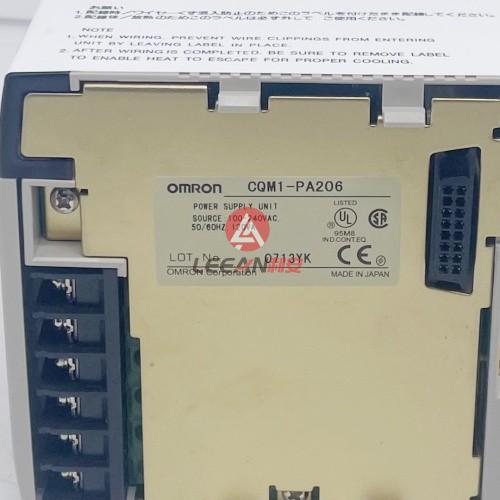

• OMRON Power Supply Unit CQM1-PA206 Programmable Controller Module 100-240VAC 120VA 50/60Hz New

  ---

• Overview
•
  The CQM1 is a compact, high-speed Programmable Controller (PC) designed for advanced control operations in systems requiring from 16 to 256 I/O points per PC.
  The CQM1 is a compact, high-speed PC composed of a Power Supply Unit, a CPU Unit, and I/O Units. All of these Units connect at the sides to form a single PC, which is normally mounted to a DIN track.
  All CQM1 CPU Units, except for the CQM1-CPU11-E, are equipped with an RS-232C port that can be connected directly to a host computer, another CQM1,or other serial device.


• ---

  Features
•

• The CQM1 provides many advanced features, including the following:
  • The CPU Unit provides 16 built-in input terminals.
  • I/O Units can be added to increase I/O capacity.
  • The CQM1 is much faster: about 20 times faster than P-type PCs.
  • High-speed timers and counters are built in.
  • Outputs are processed when instructions are executed (direct outputs).


  ---

  Interrupts

  The CQM1 supports three types of interrupts:
  • Input Interrupts
  Input interrupts are used to process input signals from an external device that are shorter than the program execution time. Input signals with a pulse width as short as 0.1 ms can be used.
  • Scheduled Interrupts
• Scheduled interrupts can be performed using a high-speed interval timer.
  • High-speed Counter Interrupts
  Single-phase pulses up to 5 kHz and two-phase pulses up to 2.5 kHz can be input. High-speed counter interrupts can be combined with pulse outputs for applications such as motor control. The CQM1 CPU43-EV1 and CQM1-CPU44-EV1 can accept single-phase pulses up to 50 kHz and two phase pulses up to 25 kHz. The high-speed counter (absolute encoder input for the CPU44-EV1) has two points added.


---

Details

Brand	OMRON
Product Name	Power Supply
Model	CQM1-PA206
Specifications	Voltage Supply:100 ~ 240VAC Mounting Type:DIN Rail Termination Style:Screw Terminal Features:Output Capacity (5VDC, 6A, 30W) Operating Temperature:0°C ~ 55°C
Condition	New
Weight	2 kg
Country of Origin	Japan

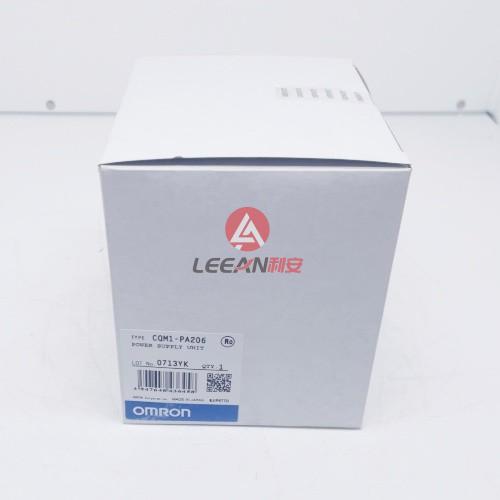

Package:	Original box.
Warranty	One Year
Power Supply	CQM1-PA203 CQM1-PA206 CQM1-PD026 CQM1-IPS01 CQM1-IPS02 CQM1-PA216 CQM1-OD212 CQM1-PA216 CQM1H-CPU11 CQM1H-CPU21 CQM1H-CPU51 CQM1H-CPU61 CQM1-CPU11-E CQM1-CPU41 CQM1-CPU41-V1 CQM1-CPU43-V1 CQM1-CPU45-EV1 CQM1-CPU45-V1 CQM1-CPU21-E CQM1-OC221 CQM1-OC222 CQM1-OD211 CQM1-OD212 CQM1-OD213 CQM1-OD214 CQM1-OC224 CQM1-DA021 CQM1-AD041 CQM1-TC101 CQM1-ME04K CQM1-ME04R CQM1-ME08R CQM1-B7A21 CQM1-B7A13 CQM1H-CLK21 CQM1H-CTB41 CQM1H-II101 CQM1H-MAB42 CQM1H-PLB21 CQM1H-SCB41 If you need other models, pls feel free to contact us.

---

System Configuration

The CQM1 is a compact, high-speed PC composed of a Power Supply Unit, a CPU Unit, and I/O Units. All of these Units connect at the sides to form a single PC, which is normally mounted to a DIN track.
All CQM1 CPU Units, except for the CQM1-CPU11-E, ar equipped with an RS-232C port that can be connected directly to a host computer, another CQM1,or other serial devices.
The following diagram shows the system configurations possible with the CQM1. Refer to Section 2 Hardware Considerations for more details on system components and specifications.

---
