Description

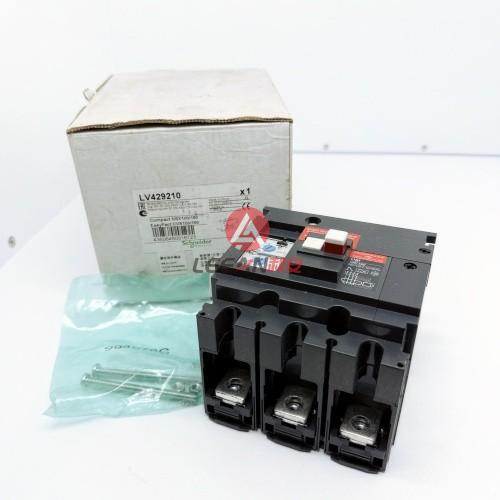

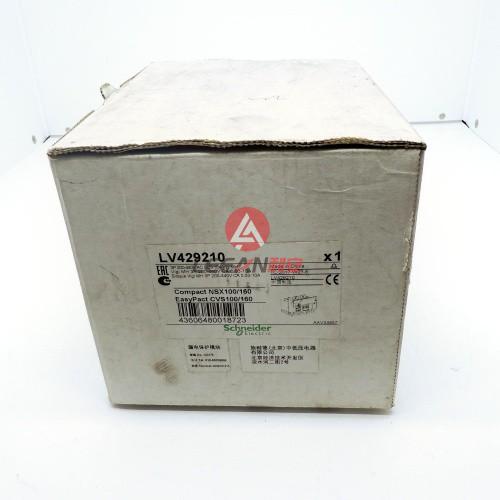

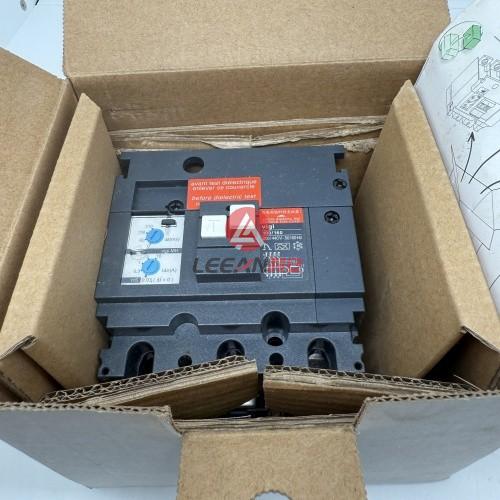

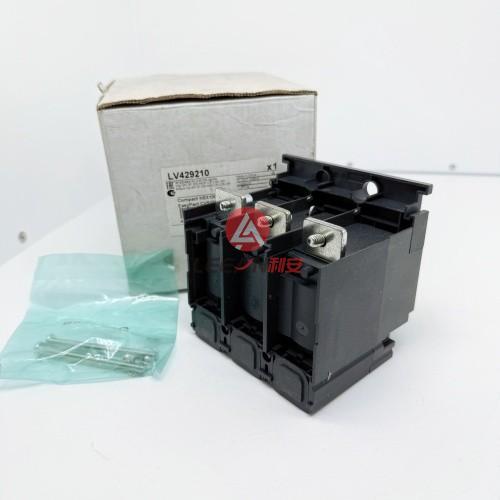

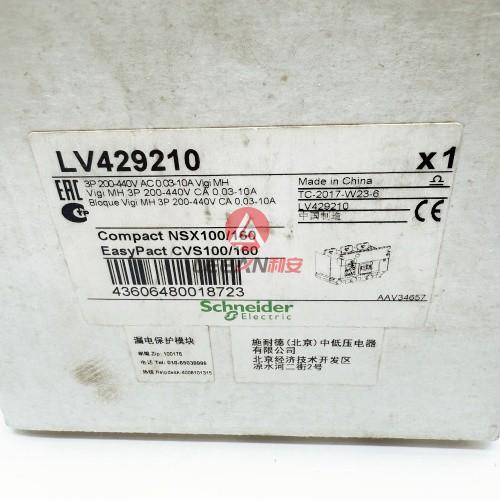

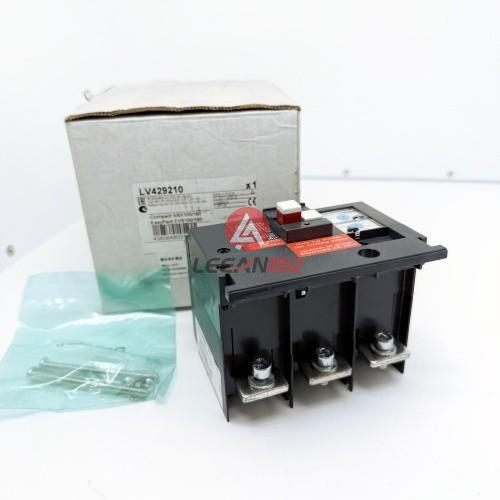

Schneider Electric 3 Poles Earth-leakage Add-on Protection Module LV429210 ComPact NSX 100/160 New
Overview
It is a MH Vigi add-on module for 3 poles Compact NSX 100/160 and EasyPact CVS 100/160. It provides an earth-leakage protection when installed directly on the device terminals. It directly actuates the trip unit in case of insulation fault. The addition of this Vigi add-on module does not modify Compact NSX 100/160 or EasyPact CVS 100/160 characteristics. It is a MH type module in 3 poles version, self-powered by the input voltage. The operational voltage for the Vigi add-on is from 200VAC to 440VAC 50/60Hz. The sensitivity is adjustable from 30mA to 10A, the time delay is also adjustable. The dimensions of the circuit breaker equipped with this module are 105mm x 236mm x 86mm.
Details
Brand:
Schneider Electric
Model
LV429210
Specifications
Earth-leakage add-on protection module, ComPact NSX 100/160, MH type, 200 VAC to 440 VAC, 30 mA to 10 A, 3P
Range compatibility
ComPact ComPact NSX100 circuit breaker
ComPact ComPact NSX160 circuit breaker
EasyPact EasyPact CVS100 circuit breaker
EasyPact EasyPact CVS160 circuit breaker
Country of Origin
China
Weight
1.5KG
Similar Models
LV429235 LV429236 LV429407 240
LV429408 265 LV429410 275
LV429630 NSX100F TM100D 3P 3D
LV429635 NSX100F TM32D 3P 3D
LV429639 NSX100NA 100A 4P
LV430833 NSX160N MA 100A 3P 3D
LV429842 NSX100N TM63D 3P 3D
LV510443 CVS100F MA25 3P 3D
LV429387 AC220-240V LV434002
LV429394 DC250V LV429390 DC24V
LV429388 380-415VAC LV432598T
LV429337T LV429338T LV429340T
LV432598T NSX400/630 478mm
LV429340T NSX100/160/250
LV429338T NSX100/160/250 478mm
LV429434-220-240VAC MT100/160
LV429435-380-415VAC MT100/160
LV429436-24-30VDC MT100/160
LV431541--220-240VAC MT250
LV431542--380-415VAC MT250
LV431543--24-30VAC MT250
3P（LV429517） 4P（LV429518）
LV431563 3P NSX100/160/250
LV431564 4P NSX100/160/250
LV432490 400/630A 52.5mm 3P
LV432533 400/630A
LV432492 400/630A 70mm 3P
LV429330 NSX100/160/250 3P
LA9G3611 LA9G3612 LA9G4611
LA9G4612 LA9G3613 LA9G4613
LA9G3801 LA9G4801
LV429235 NSX100/160/250
LV429236 LV42888 NSX100-630
LV432491 NSX400/630
CVS400F 3P3D TM400D LV540306
INS40-160A LV428941
LV429289 3P NSX100..250
LV432643 MT400/630 24VDC 24-30VCC
CVS250N TM200D 3P3D LV525452
LV432693 NSX400N Micrologic 2.3 400 A - 3P 3D
MT100-160A AC220-240V LV429434
MT100-160A AC380-415V LV429435
MT250 AC220-240V LV431541
MT250 AC380-415V LV431542
MT400-630A AC220-240V LV432641
MT400-630A AC380-415V LV432642
CVS160F TM160D 4P3D 160A LV516343
If you need other models, pls feel free to contact us.

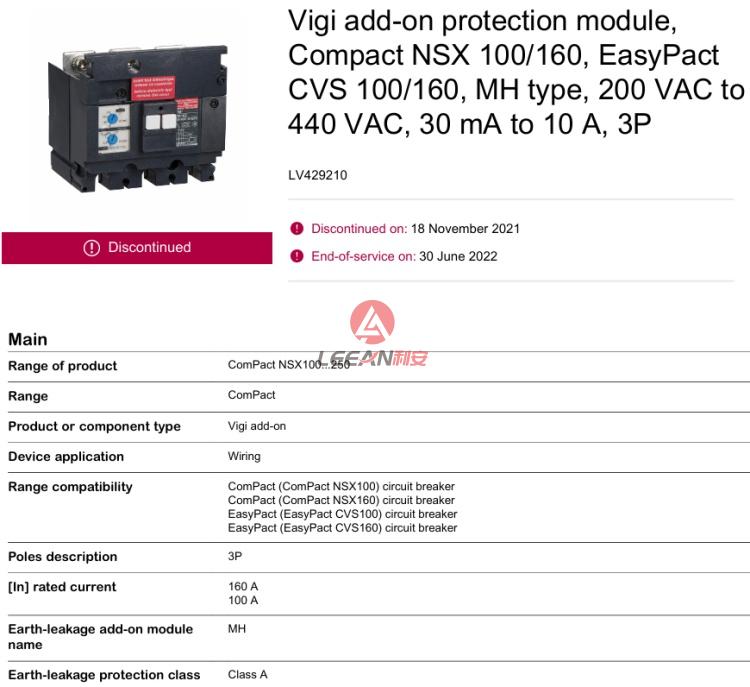

Datasheet
