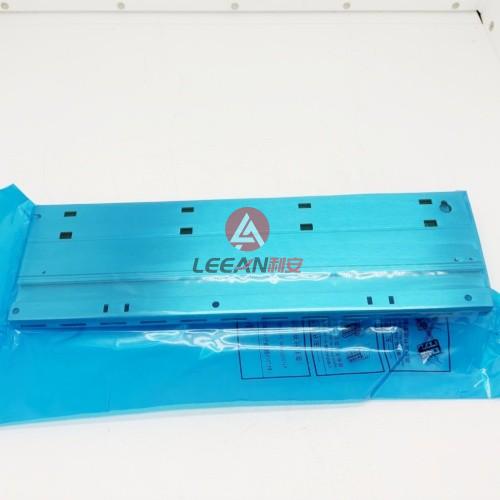

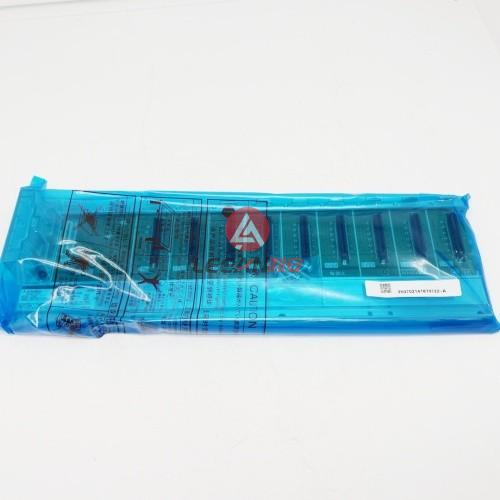

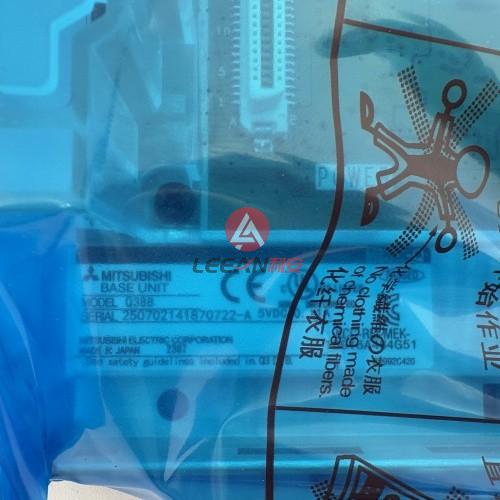

Mitsubishi Electric MELSEC-Q Series Base Rack Q38B Main CPU Module Base Unit 8 I/O slots New
Overview
The Q38B module is a basic I/O extension base module in Mitsubishi’s MELSEC-Q series, designed to add additional input/output or special function modules to the control system. It provides a flexible and scalable structure for expanding system capacity in industrial applications that require more I/O capabilities.
I/O Expansion Capability: The Q38B offers slots to install additional I/O modules, increasing the input/output capacity as required by the application.
Compatibility: Fully compatible with MELSEC-Q series modules, including a wide variety of I/O, communication, and special function modules, ensuring seamless integration with existing systems.
System Scalability: Ideal for systems that require modular growth, allowing users to expand their control system as needed.
Stable Module Mounting: Ensures secure and stable mounting of modules, providing reliable performance and communication within the control system.
Key Features
Number of Slots: 12 (1 for power supply, 1 for CPU, and 10 for I/O or special function modules)
Compatibility: Accommodates MELSEC-Q Series modules, including Q173/Q172 motion controllers
Mounting: Panel mount (DIN rail mounting requires optional adapter)
Construction: Durable design fit for industrial uses
Applications
Factory automation systems
Process control
Motion control applications
Complex I/O configurations
Modular PLC system expansions
Product Details
| Brand | Mitsubishi |
| Product type |
Main CPU Module Base Unit |
| Model |
Q38B |
| Specifications |
Number of input/output units equipped with(units):8 Usable Motion Controllers:Q173/Q172 Dimensions (W × H × D): Approximately 439 × 98 × 44.1 mm Weight: Approximately 0.45 kg Operating Temperature: 0°C to 55°C Storage Temperature: -25°C to 75°C Certifications: CE, UL, cUL, UKCA, EAC Environmental Compliance: RoHS compliant
|
| Country of Origin | Japan |
|
CPU Base |
Q35B,Q38B,Q312B |
|
Extension Base |
Q65B,Q68B,Q612B |
| Similar Modles |
Q61P-A1 Q61P-A2 Q61P Q62P Q63P Q173DPX Q35BL QX11L QY51PL Q38BL QX21L QG69L Q65BL QY11AL Q68BL QY13L Q55BL QY23L |
| Other Models |
Q series large type main base unit:Generic term for Q35BL and Q38BL MELSEC-Q series main base units Q series large type extension base unit:Generic term for Q65BL, Q68BL, and Q55BL MELSEC-Q series extension base units Q series large type I/O module: Generic term for QX11L, QX21L, QY11AL, QY13L, QY23L, and QY51PL MELSEC-Q series I/O modules Q series large type blank cover: Abbreviation for QG69L MELSEC-Q series blank cover Q series: Abbreviation for Mitsubishi MELSEC-Q series programmable controller A/QnA series: Abbreviation for Mitsubishi MELSEC-A/QnA series programmable controller High Performance model QCPU:Generic term for Q02CPU, Q02HCPU, Q06HCPU, Q12HCPU, and Q25HCPU Universal model QCPU:Generic term for Q00UCPU, Q01UCPU, Q02UCPU, Q03UDCPU, Q03UDVCPU, Q03UDECPU, Q04UDHCPU, Q04UDVCPU, Q04UDEHCPU, Q06UDHCPU, Q06UDVCPU, Q06UDEHCPU, Q10UDHCPU, Q10UDEHCPU, Q13UDHCPU, Q13UDVCPU, Q13UDEHCPU, Q20UDHCPU, Q20UDEHCPU, Q26UDHCPU, Q26UDVCPU, Q26UDEHCPU, Q50UDEHCPU, and Q100UDEHCPU MELSECNET/H remote I/O module:General term for QJ72LP25-25, QJ72LP25G, QJ72LP25GE, and QJ72BR15 Q3 B:Generic term for Q33B, Q35B, Q38B, and Q312B main base units on which CPU module (except Q00JCPU and Q00UJCPU), Q series power supply module, Q series I/O module, and intelligent function module can be mounted Q3 DB:Generic term for Q35DB, Q38DB, and Q312DB multiple CPU high speed main base units on which CPU module (except Q00JCPU and Q00UJCPU), Q series power supply module, Q series I/O module, and intelligent function module can be mounted Q5 B:Generic term for Q52B and Q55B extension base units on which Q series I/O module and intelligent function module can be mounted Q6 B:Generic term for Q63B, Q65B, Q68B, and Q612B extension base units on which Q series power supply module, Q series I/O module, and intelligent function module can be mounted QA1S5 B: Another term for QA1S51B extension base unit on which AnS series I/O module and special function module can be mounted QA1S6 B:Generic term for QA1S65B and QA1S68B extension base units on which AnS series power supply module, AnS series I/O module, and special function module can be mounted QA6 B:Generic term for QA65B and QA68B extension base units on which A series power supply module, A series I/O module, and special function module can be mounted A5 B:Generic term for A52B, A55B, and A58B extension base units on which A series I/O module and special function module can be mounted without power supply A6 B:Generic term for A62B, A65B, and A68B extension base units requiring power supply on which A series I/O module and special function module can be mounted QA6ADP: Abbreviation for QA6ADP QA conversion adapter module QA6ADP+A5 B/A6 B: Abbreviation for A large type extension base unit on which QA6ADP is mounted Power supply module: Generic term for Q61P-A1, Q61P-A2, Q61P, Q61P-D, Q62P, Q63P, Q64P, Q64PN power supply modules SRAM card: Generic term for the Q2MEM-1MBS, Q2MEM-2MBS, Q3MEM 4MBS, and Q3MEM-8MBS SRAM cards 38-point terminal block: Abbreviation for MELSEC-A series 38-point terminal block
|
