Description

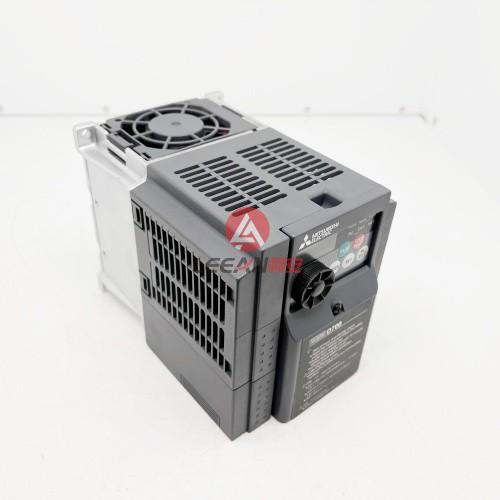

Mitsubishi Electric FR-D740 Series Frequency Inverter FR-D740-080SC-EC Inverters 3.7KW 3PH AC380-480V 50/60Hz New
Overview
The Mitsubishi FR-D740-080SC-EC from the FR-D700 series is a reliable compact inverter for 3-phase induction motors. With wide voltage support, advanced control features, and IP20 protection, it’s ideal for demanding automation tasks.
The Mitsubishi FR-D740-080SC-EC is a high-performance compact inverter from the FR-D700 series. Designed for 3-phase AC induction motors, it offers advanced control features, efficient energy management, and reliable protection for a wide range of industrial applications.
Inverter; Rated Power: 3,7kW; 3x380-480V; Rated Current: 8A@50°C; IP20
Product Details
FR-D740-012-EC
Brand
Mitsubishi Electric
Model
FR-D740-080SC-EC
Type
Frequency Inverter
Max Motor Power
3.7kW
Input voltage
AC380-480V
Input Frequency
50/60HZ
Input Current
13.9A
Output
8.0A 3PH AC380-480Vmax
0.2-400HZ
Technical Specifications
Series:FR-D700 SERIES
Type:FR-D700 COMPACT INVERTER
Minimum Rated Voltage (V):380
Min. Permissible Voltage (V):325
Maximum Rated Voltage (V):480
Max. Permissible Voltage (V):528
Current Type:AC
Phases:3
Rated Output Current ND (A):8
Rated Motor Capacity ND (kW):3,7
Control Method:V/F CONTROL
SOFT-PWM/HIGH FREQUENCY PWM
MAGNETIC FLUX VECTOR CONTROL
Motor Type:INDUCTION MOTOR
Brake Chopper ED (%):30
Integrated EMC Filter:NO
Safe Torque Off (STO):YES
Regenerative (4Q)：NO
Integrated DC Choke：NO

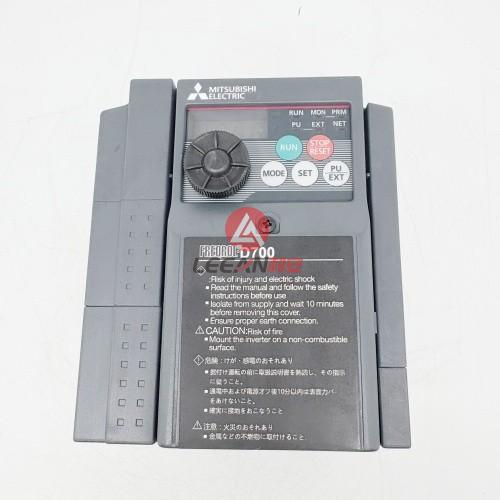

Display：BUILT-IN
Display Type:4 DIGITS LED
MASS
3KG
Country of Origin
Japan
More Inverters
FR-D740-022-EC
FR-D740-036-EC
FR-D740-050-EC
FR-D740-080-EC
FR-D740-120-EC
FR-D740-160-EC
FR-D740-012SC-EC
FR-D740-022SC-EC
FR-D740-036SC-EC
FR-D740-050SC-EC
FR-D740-080SC-EC
FR-D740-120SC-EC
FR-D740-160SC-EC
FR-D740S-012SC-EC
FR-D740S-022SC-EC
FR-D740S-036SC-EC
FR-D740S-050SC-EC
FR-D740S-080SC-EC
FR-D740S-120SC-EC
FR-D740S-160SC-EC
FR-E740-0.4K-CHT
FR-E740-75K-CHT
FR-E740-1.5K-CHT
FR-E740-2.2K-CHT
FR-E740-3.7K-CHT
FR-E740-5.5K-CHT
FR-E740-7.5K-CHT
FR-E740-11K-CHT
FR-E740-15K-CHT
FR-D740-0.4K-CHT
FR-D740-0.75K-CHT
FR-D740-1.5K-CHT
FR-D740-2.2K-CHT
FR-D740-3.7K-CHT
FR-D740-5.5K-CHT
FR-D740-7.5K-CHT
FR-D720S-0.4K-CHT
FR-D720S-0.75K-CHT
FR-D720S-1.5K-CHT
FR-D720S-2.2K-CHT
FR-D740-0.4K
FR-D740-0.75K
FR-D740-1.5K
FR-D740-2.2K
FR-D740-3.7K
FR-D740-5.5K
FR-D740-7.5K
FR-D740-012-NA
FR-D740-022-NA
FR-D740-036-NA
FR-D740-050-NA
FR-D740-080-NA
FR-D740-120-NA
FR-D740-160-NA
FR-D740-230-NA
FR-D720S-0.1K-CHT
FR-D720S-0.2K-CHT
FR-D720S-0.4K-CHT
FR-D720S-0.75K-CHT
FR-D720S-1.5K-CHT
FR-D720S-2.2K-CHT
FR-E740-0.4K-CHT
FR-E740-0.75K-CHT
FR-E740-1.5K-CHT
FR-E740-2.2K-CHT
FR-E740-3.7K-CHT
FR-E740-5.5K-CHT
FR-E740-7.5K-CHT
FR-E740-0.4K-CHT
FR-A840-0.4K-1
FR-A840-0.75K-1
FR-A840-1.5K-1
FR-A840-2.2K-1
FR-A840-3.7K-1
FR-A840-5.5K-1
FR-A840-7.5K-1
FR-F840-0.4K-1
FR-F840-0.75K-1
FR-F840-1.5K-1
FR-F840-2.2K-1
FR-F840-3.7K-1
FR-F840-5.5K-1
FR-F840-7.5K-1
FR-E840-0026-4-60(0.75KW)
FR-E840-0040-4-60(1.5KW)
FR-E840-0060-4-60(2.2KW)
FR-E840-0095-4-60(3.7KW)
FR-E840-0120-4-60(5.5KW)
FR-E840-0170-4-60(7.5KW)
FR-E840-0016-4-60(0.4KW)
FR-A840-00023-2-60 0.4KW
FR-A840-00038-2-60 0.75KW
FR-A840-00052-2-60 1.5KW
FR-A840-00083-2-60 2.2KW
FR-A840-00126-2-60 3.7KW
FR-A840-00170-2-60 5.5KW
FR-A840-00250-2-60 7.5KW
FR-A840-00310-2-60 11KW
FR-A840-00470-2-60 18.5KW
FR-A840-00620-2-60 22KW
FR-A840-00770-2-60 30KW
FR-A840-00930-2-60 37KW
FR-A840-01800-2-60 55KW
FR-F840-00023-2-60 0.75KW
FR-F840-00038-2-60 1.5KW
FR-F840-00052-2-60 2.2KW
FR-F840-00083-2-60 3.7KW
FR-F840-00126-2-60 5.5KW
FR-F840-00170-2-60 7.5KW
FR-F840-00250-2-60 11KW
FR-F840-00310-2-60 15KW
FR-F840-00380-2-60 18.5KW
FR-F840-00770-2-60 37KW
If you have any inquiries on Mitsubishi products, pls feel free to contact us.

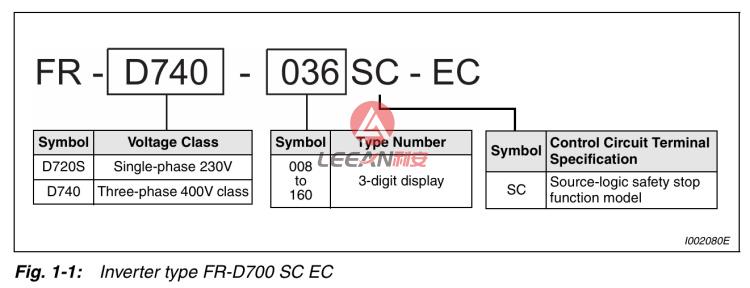

Inverter type
