Description

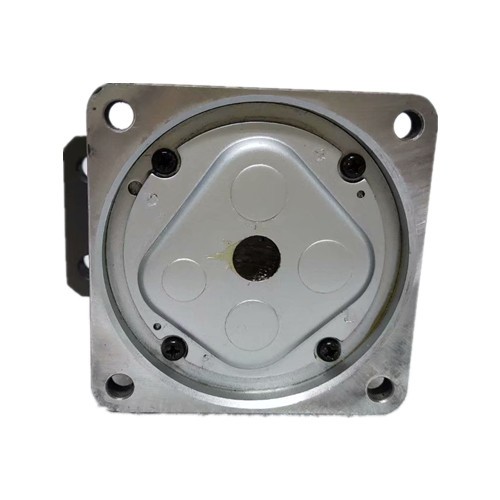

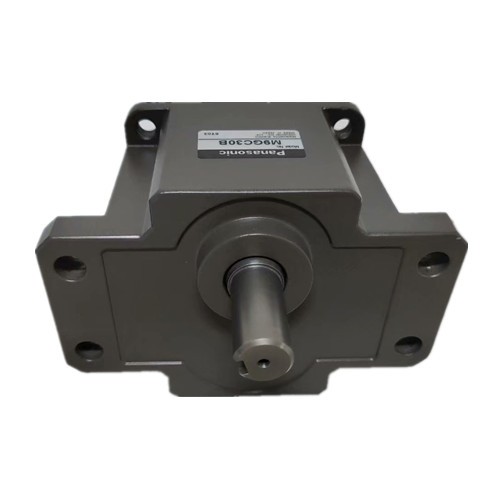

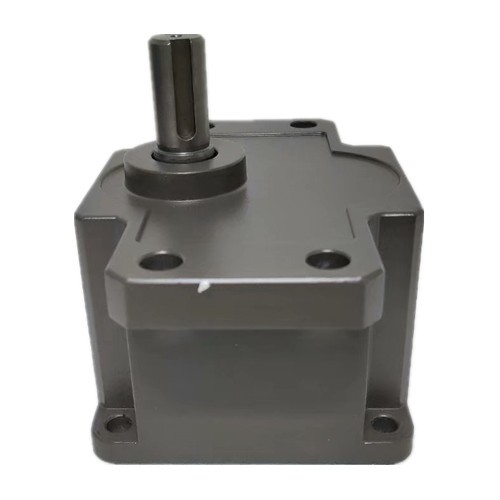

New Panasonic Servo Motor Reduction Gearbox Speed Reducer M9GC30B
Panasonic Gearbox Feature
1)Various types of gear heads are available.
2)The X type is available in a metal bearing model and or a ball bearing type.
3)The P type (90 mm sq. only) is high torque type: its maximum permissible shaft torque is 29.4 N·m (300 )
4)22 reduction ratios from 1/3 to 1/180 are available for the X type; 23 reduction ratios from 1/3 to 1/200 are available for the Y and Z types. When the decimal gear head (reduction ratio: 1/10) is used, a reduction ratio of up to 1/1800 (1/2000 for the Y and Z types) can be attained.
5)The X type and Z type of 90 mm sq. are available in right-angle type.
6)Gear heads dedicated to C&B motors are available. The gear heads will withstand 2 million start and stop cycles.
Panasonic Gearhead / Gearbox / Gear Head / Gear Box available
APPLICABLE TO 60 /90 W MOTOR
MY9G3B , MY9G3.6B , MY9G5B , MY9G6B , MY9G7.5B , MY9G9B , MY9G10B , MY9G12.5B ,MY9G15B , MY9G18B , MY9G20B , MY9G25B , MY9G30B , MY9G36B , MY9G50B , MY9G60B , MY9G75B , MY9G90B , MY9G100B , MY9G120B , MY9G150B , MY9G180B
APPLICABLE TO 60 /90 W MOTOR
MZ9G3B , MZ9G3.6B , MZ9G5B , MZ9G6B , MZ9G7.5B , MZ9G9B , MZ9G10B , MZ9G12.5B ,MZ9G15B , MZ9G18B , MZ9G20B , MZ9G25B , MZ9G30B , MZ9G36B , MZ9G50B , MZ9G60B , MZ9G75B , MZ9G90B , MZ9G100B , MZ9G120B , MZ9G150B , MZ9G180B
APPLICABLE TO 6 / 15 / 25 / 40 W MOTOR
MX6G3B , MX6G3.6B , MX6G5B , MX6G6B , MX6G7.5B , MX6G9B , MX6G10B , MX6G12.5B ,MX6G15B , MX6G18B , MX6G20B , MX6G25B , MX6G30B , MX6G36B , MX6G50B , MX6G60B , MX6G75B , MX6G90B , MX6G100B , MX6G120B , MX6G150B , MX6G180B
APPLICABLE TO 6 / 15 / 25 / 40 W MOTOR
MX7G3B , MX7G3.6B , MX7G5B , MX7G6B , MX7G7.5B , MX7G9B , MX7G10B , MX7G12.5B ,MX7G15B , MX7G18B , MX7G20B , MX7G25B , MX7G30B , MX7G36B , MX7G50B , MX7G60B , MX7G75B , MX7G90B , MX7G100B , MX7G120B , MX7G150B , MX7G180B
APPLICABLE TO 6 / 15 / 25 / 40 W MOTOR
MX8G3B , MX8G3.6B , MX8G5B , MX8G6B , MX8G7.5B , MX8G9B , MX86G10B , MX8G12.5B ,MX8G15B , MX8G18B , MX8G20B , MX8G25B , MX8G30B , MX8G36B , MX8G50B , MX8G60B , MX8G75B , MX8G90B , MX8G100B , MX8G120B , MX8G150B , MX8G180B
APPLICABLE TO 6 / 15 / 25 / 40 W MOTOR
MX9G3B , MX9G3.6B , MX9G5B , MX9G6B , MX9G7.5B , MX9G9B , MX9G10B , MX9G12.5B ,MX9G15B , MX9G18B , MX9G20B , MX9G25B , MX9G30B , MX9G36B , MX9G50B , MX9G60B , MX9G75B , MX9G90B , MX9G100B , MX9G120B , MX9G150B , MX9G180B
Others
M9GC3B/M9GC3.6B/M9GC10B/M9GC12.5B/M9GC30B/M9GC36B/M9GC50B/M9GC60B/M8GB3B22/M8GB3B22
MX8G15M/MX8G18M/MX8G20M/MX8G25M/MZ9G75B/MZ9G90B/MZ9G100B/MZ9G120B/M8GA30M/M8GA36M
M8GA50M/M8GA30B/M8GA36B/M8GA50B/MX8G30B/MX8G36B/MX8G50B /MZ9G20B/MZ9G25B/MZ9G30
M9GA100B/M9GA120B/M9GA100B/M8GA18B/M8GA20B/M8GA25B /MY9G20B/MY9G25B/MY9G30B/MY9G36B
MY9G150B/MY9G180B/MY9G200B/M8GA10B/M8GA12.5B/M8GA15B/M9GC36B/M9GC50B/M9GC60B/M6GA75B
M6GA90B/M6GA100B/M6GA10XB/MX6G50B/MX6G75B/MX6G90B/MX6G100B/M91Z90H4L/MX6G3MA/MX6G3.6MA
MX6G5MA/MX6G6MA/MX9G3M /MX9G3.6M / MX9G5M/MX7G18B/MX7G20B/MX7G25B

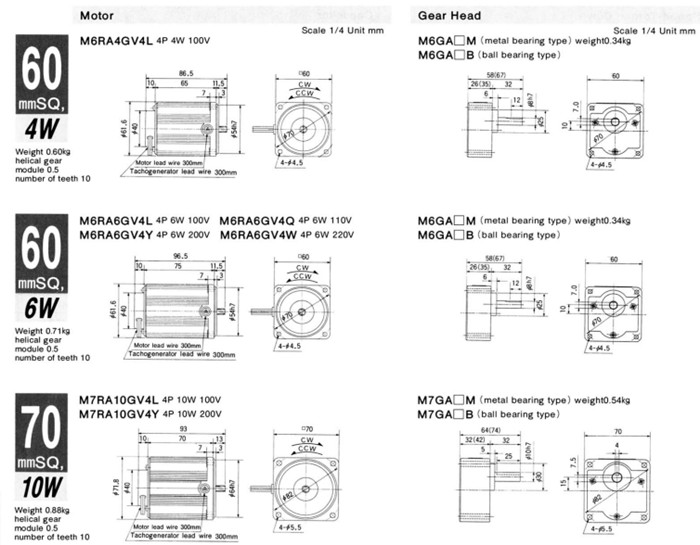

Drawing
