Description

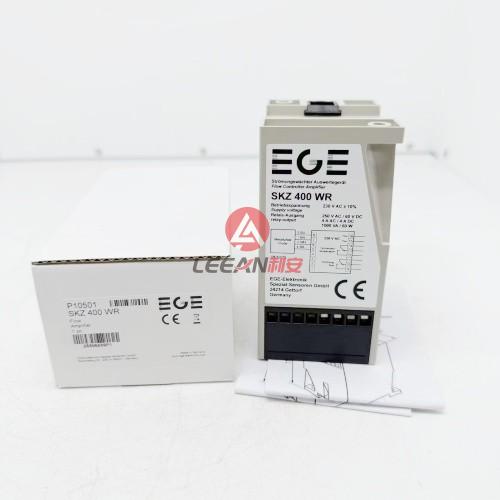

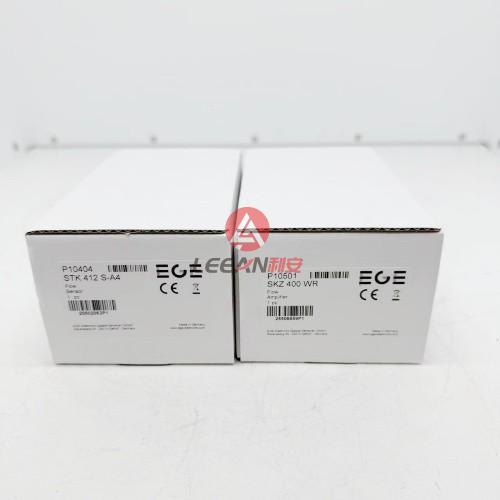

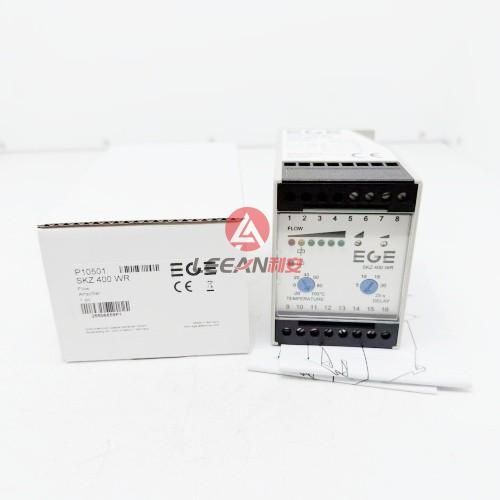

EGE Elektronik ST/STK 400 Series Flow Sensor SKZ400WR Temperature Flow Controller Amplifier P10501 230VAC New
Overview
SKZ 400 WR
Product ID: P10501
Measuring and evaluation electronics for sensors of the ST/STK 400 series
Display of the current flow condition with 6 LEDs
Intuitive limit value adjustment with potentiometer
Design for mounting on a top hat rail
Powerful relay output
Adjustable temperature monitoring and switch-off time delay
230 VAC
The SKZ series amplifier is for use with the EGE flow probes. The amplifier is available with three power supply options:
for a 230 VAC supply (+10/-20%) the part number becomes SKZ 400 WR, ID number P10501.
for a 115 VAC supply (+10/-15%) the part number becomes SKZ 400 WR -115,ID number P10502.
for a 24 VDC supply (+/-20%) the part number becomes SKZ 400 GR,ID number P10503.
Each model offers 2 x change-over relay outputs which can switch 250 AC @ 4A / 60DC @ 4A. Maximum switching power is 1000 VA / 60W
Temperature control and turn off delays are full adjustable locally on the SKZ amplifier.
Atex versions are available for hazardous environments.
Features
Compact size
IP40 housing
LED display
Turn off delay (0 - 25 seconds, fully adjustable)
Temperature control (-20C to +100C)
Ambient temperature range from -20C to +60C
Product Details
Temperature monitoring:-20 ... 100 °C
SKZ400GR
ST421 S-A4
If you need other models, pls feel free to contact us.
Brand:
EGE
Type:
Flow Sensor
Model
SKZ 400 WR
Product ID
P10501
Specifications
Output:switching output
Output function:2x relay / change-over
Turn off delay :0...25 s adjustable
Supply voltage:230 V AC +/- 10%
Switching voltage max.:250 V AC / 60 V DC
Switching current max.:4 A AC / 4 A DC
Switching power max.:1000 VA / 60 W
Ambient temperature:-20 ... 60 °C
Display:LED
Protection [EN 60529] terminal:IP 20
Protection [EN 60529] housing:IP 40
Electrical connection:terminal screws
Accessories (in scope of delivery):screwdriver
Amplifier for probe:STA..., STB..., STC..., STD..., STK..., ST... (none Ex), LTZ
Country of Origin
Germany
Weight
0. 5 KG
Similar Products
ST421 K-F
STK412 KH-A4
SZAB400EX-GR P11398
STK412S-A4 P10404
SDN510GSP P11248
STK412-000
STK412-010
STK412-020
STK412-030
STK412-240
STK412-230
STK412-400
STK412-410
STK412-420
STK412-430
STK412-440
STK412-490
STK412-530
STK412-770
STK412-740
STK412-750
SC440-A4-GSP

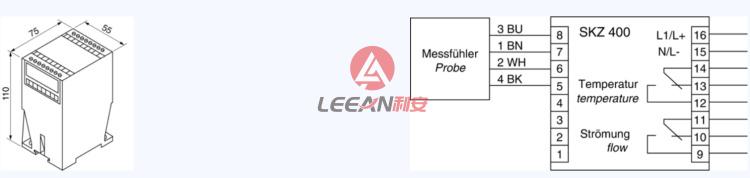

Drawing
