Description

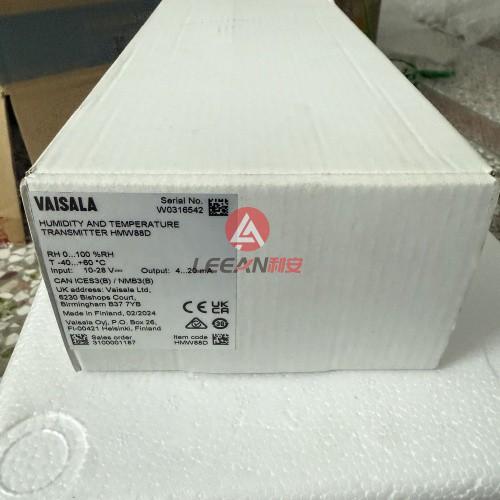

VAISALA Humidity Temperature HMW88D 2-wire IP65 Transmitter with 4...20mA Outputs And Display New
Overview
Humidity, temperature and additional calculated parameters 2-wire transmitter with display for wall mounting, display, with 4-20mA outputs
Reliable transmitters for basic HVAC humidity measurements
±3.0 %RH accuracy
Full 0 … 100 %RH measurement range
Optimized for easy installation and low maintenance
User exchangeable INTERCAP® sensor for easy field replacement
UL- V0 flammability rating
The 2-wire HMW88 transmitter measures relative humidity and temperature in wash-down areas and other humid environments within building automation.
The HMW88 transmitter is optimized for easy installation. It contains no separate small parts that can get lost. All connectors are clearly labeled and the connectors are within easy reach. The transmitter can be installed without making holes to the transmitter enclosure.
The excellent stability of the sensors and high quality materials ensure that the HMW88 transmitter requires minimal maintenance. If needed, the Vaisala INTERCAP® sensor can be easily exchanged in the field with practically no downtime.

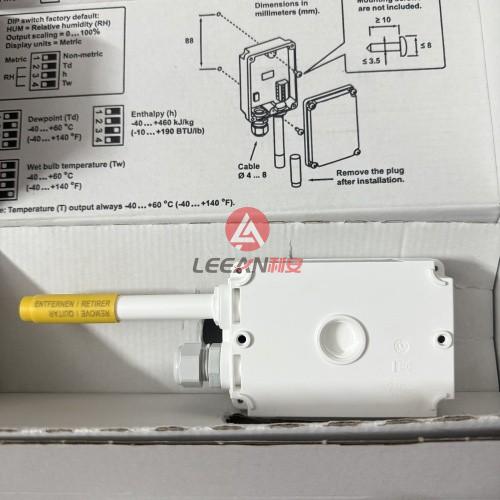

Optional output parameters, dew point, wet bulb temperature or enthalpy selections can be easily changed with dip switches when the enclosure is open.
Special Features
Display calculated parameters

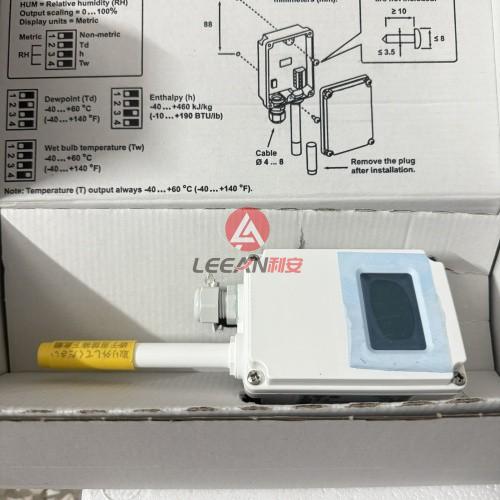

You can choose an optional display.
The ingress protection ratings are:
HMW88: IP65
HMW88D: IP54
Analog outputs are preset at the factory to:
Channel 1: 4 ... 20 mA = 0 ... 100% RH
Channel 2: 4 ... 20 mA = -40 ... +60 °C (-40 ... +140 °F) T
Typical Installation Locations
Ventilation ducts
Walls
Wash-down areas
Outdoor locations
HMDW80 Series Humidity and Temperature Transmitters for Building Automation Applications
Vaisala INTERCAP Humidity and Temperature Transmitter Series HMDW80 measure relative humidity and temperature in various building automation applications. Transmitters combine easy installation and reliable operation with a low requirement for maintenance.
The versatile HMDW80 series includes transmitters for wall and duct mounting, IP65-classified transmitters for humid areas, and transmitters with a radiation shield for outdoor use. It also includes temperature-only transmitters and transmitters with an optional display.
Calculated humidity parameters – dew point temperature, wet bulb temperature, and enthalpy – are also available.
Easy Installation
HMDW80 series transmitters are optimized for easy installation. There are no loose parts, screws are retained in the enclosure, all connectors are clearly labeled, and the connectors are within easy reach.
The duct mount transmitters are well suited to a variety of duct sizes, the outdoor transmitters can be mounted directly onto a wall or pole without any extra accessories, and the wall mount transmitters can be installed without the need to make holes in the transmitter enclosure.
Reliable Operation
HMDW80 series transmitters require minimal maintenance thanks to their excellent sensor stability and high-quality materials. If necessary, the INTERCAP sensor can be easily exchanged in the field with minimum downtime.
Details
Brand :
VAISALA
Product:
Humidity and Temperature Transmitter
Model :
HMW88D
Shipping weight :
1 Kg
Country of origin:
Finland
Condition:
New Original
Temperature Transmitters
Vaisala Model: HMW88 (Relative Humidity and Dry-Bulb Temperature)
Vaisala Model: HMW88D (Relative Humidity and Dry-Bulb Temperature with Display)
Vaisala Model: HMW88TD (Dew point and Dry-Bulb Temperature)
Vaisala Model: HMW88W (Wet-Bulb Temperature and Dry-Bulb Temperature)
Vaisala Model: HMW88H (Enthalpy and Dry-Bulb Temperature)
Vaisala Model: TMW88 (Dry-Bulb Temperature Only)
More Transmitter:
TMW82 Wall-mount, T-only 2-wire, current output IP30
TMW83 Wall-mount, T-only 3-wire, voltage output IP30
HMW82 Wall-mount, RH+T 2-wire, current output IP30
HMW82P100 Wall mount, RH+T 2-wire, current output Additional Pt100 sensor IP30
HMW83 Wall-mount, RH+T 3-wire, voltage output IP30
TMW88 Wall-mount, T-only 2-wire, current output IP65
HMW88 Wall-mount, RH+T 2-wire, current output Calculated parameters* IP65
HMW88D Wall-mount, RH+T 2-wire, current output Display, calculated parameters* IP65
HMW89 Wall-mount, RH+T 3-wire, voltage output Calculated parameters* IP65
HMW89D Wall-mount, RH+T 3-wire, voltage output Display, calculated parameters* IP65
TMD82 Duct-mount, T-only 2-wire, current output IP65
TMD83 Duct-mount, T-only 3-wire, voltage output IP65
HMD82 Duct-mount, RH+T 2-wire, current output Calculated parameters* IP65
HMD82D Duct-mount, RH+T 2-wire, current output Display, calculated parameters* IP65
HMD83 Duct-mount, RH+T 3-wire, voltage output Calculated parameters* IP65
HMD83D Duct-mount, RH+T 3-wire, voltage output Display, calculated parameters* IP65
HMS82 Outdoor, RH+T 2-wire, current output Radiation shield, calculated parameters* IP65
HMS82C Outdoor, RH+T 2-wire, current output HMS82 with NPT ½” conduit fitting* IP65
HMS83 Outdoor, RH+T 3-wire, voltage output Radiation shield, calculated parameters* IP65
HMS83C Outdoor, RH+T 3-wire, voltage output HMS83 with NPT ½” conduit fitting* IP65
Welcome to choose VIASALA Transmitter! We have good price for the VIASALA items, if you have any inquiries,pls feel free to contact us.

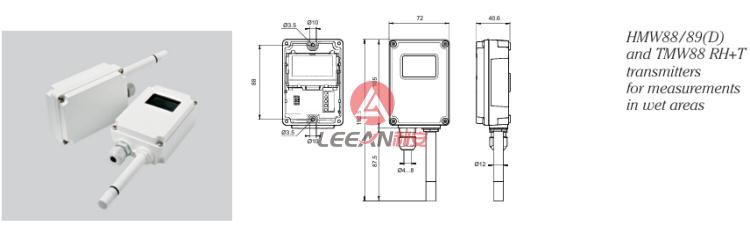

Dimension
