Description

• Siemens High Feature Interface Module 6ES7151-1BA02-0AB0 New Original

  ---

• Description of Interface Module 6ES7151-1BA02-0AB0

*** Spare part *** SIMATIC DP, Electronics module f. ET200S, 2AI Standard I-4DMU 15 mm width, +/-20mA; 13 bit+sign 4.. 20mA; 12-bit for 4-wire transmitter Cycle time 65 ms/channel with SF LED (group fault)

ET 200S distributed I/O 2AI I 4WIRE ST analog electronic module (6ES7134-4GB11-0AB0)

Specification

Product Name:	Interface module
Model:	6ES7151-1BA02-0AB0
Condition:	New
Weight (kg):	0,5 Kg
Package:	Original box.
Warranty	One Year

---

IM151-1 HIGH FEATURE interface module (6ES7151-1BA02-0AB0)

Properties

The IM151-1 HIGH FEATURE interface module has the following features:

a. It connects the ET 200S with PROFIBUS DP via the RS 485 interface.

b. There is no restriction on the SIMATIC S7 for the maximum parameter length. It is normally 244 bits.

c.The maximum address space is 244 bytes for inputs and 244 bytes for outputs.

d.Operation as a DPV0 or DPV1 slave

e.A maximum of 63 modules can be operated with the IM151-1 HIGH FEATURE.

f. The maximum bus length at the backplane bus is 2 m.

g.Supports option handling and the status byte for power modules.

h.synchronizable with the DP cycle (cycle synchronization).

i.The firmware can be updated via PROFIBUS DP using HW CONFIG.

j.Safety-related I-slave-slave-communication via PROFIBUS DP. You can find the description of this function in the S7 Distributed Safety Configuration and Programming manual.

k.Identification data

l.Direct data exchange m.Operation as DPV1 slave on the Y switching

n.Use of fail-safe modules

---

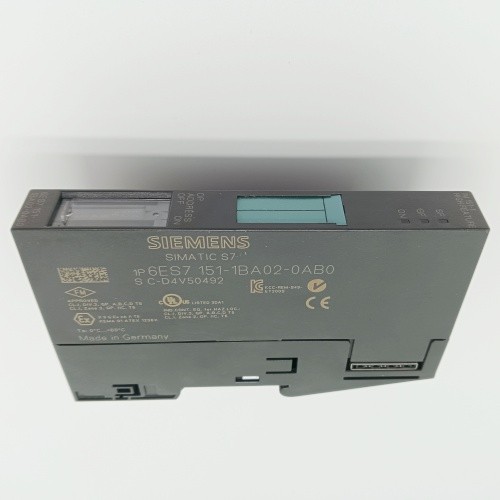

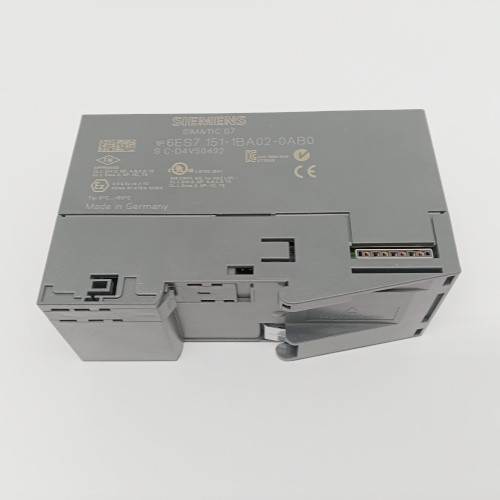

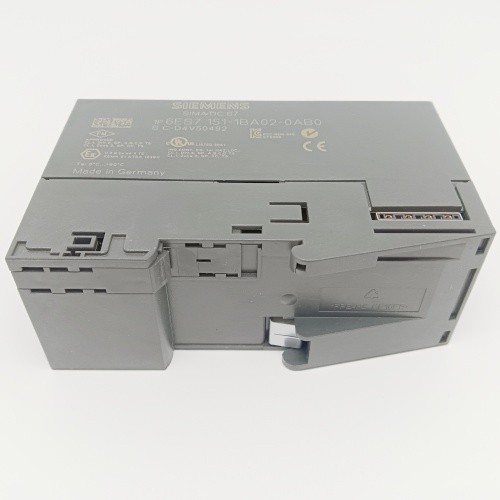

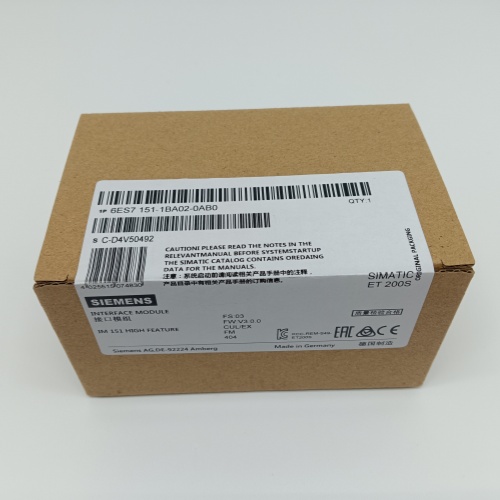

Picture:

---
