Description

• WAGO I/O System Incremental Encoder Interface Module 750-631 DIN Rail 5-24VDC New

• ---

Overview

This module is an interface for the connection of any incremental encoder.

A 16 bit counter with quadrature encoder interface as well as a 16 bit latch for the zero impulse can be read, set, or enabled. The count of the counter will be transmitted fast and interference-free over the fieldbus to the PC, PLC, or NC.

A counter lock-out is possible using the “Gate” input.

The power supply for the transmitter is derived internally from the power jumper contacts Ue/U0.

The shield directly connects to the DIN-rail.

---

Applications

Power Management

---

Specification

Brand:	WAGO
Product Name:	Incremental Encoder Interface Module
Model:	750-631
Condition:	New
Weight (kg):	0.5kg
Specifications:	Incremental encoder interface; 5 … 24 VDC
WAGO 750 Modules	750-307 750-333 750-806 750-337 750-842 750-310 750-348 750-343 750-455 750-559 750-600 750-602 750-612 750-601 750-430 750-530 750-559 750-453 750-530 750-512 750-517 750-555 750-502 750-513 750-514 750-400 750-511 750-461 750-468 750-460 750-455 750-1504 750-497 750-597 750-459 750-960 750-961 750-962 750-963 750-965 750-600 859-304 750-971 750-1405 750-1504 750-1505 750-1407 750-1415 750-1420 750-1515 750-1400 750-1500 750-1501 750-1606 750-1605 750-1607 750-502/006-000 750-514/006-000
Power Supply Module	787-1664 787-1602 787-1668 787-1621 787-3664 787-1712（2.5A 24V) 787-1722（5A） 787-1732（10A） 787-712（2.5A 24V） 787-722（5A 24V） 787-732（10A 24V） 787-734（20A 24V） 787-736（40A 24V） 787-738（6.25A 24V) 787-862 787-831 787-870 787-871 787-872 787-873 787-740 787-3668 787-1628 787-850 787-2861/108-020 787-1662/0000-0054 787-1664/000-250 787-1664/000-004 787-1664/000-100 787-1664/006-1000 787-1664/000-011 787-3861/108-020 2587-2144（5A 24V） 2587-2146（10A 24V） 2587-2147（20A 24V）
RAIL	210-113 210-114 210-112 210-197 210-112 210-197 210-115
Digital Input Output I/O Modules	750-352 750-430 750-530 750-498 750-559 750-555 787-732 750-638 750-631 210-113 750-343 750-460 750-465 750-467 750-461/000-003 750-461 750-469 750-1405 750-515 750-600 859-304 750-516 750-517 750-553 750-554 750-563 750-585 750-672 750-673 750-636 750-632 750-650 750-653 750-653/003-000 750-652 750-651 750-642 750-643 750-655 750-658 750-660/000-001 750-665/000-001 750-663/000-003 750-606 750-625/000-001 750-624/020-000 750-626/020-000 750-1405 750-1504 750-1420 If you need other models, pls feel free to contact us.

---

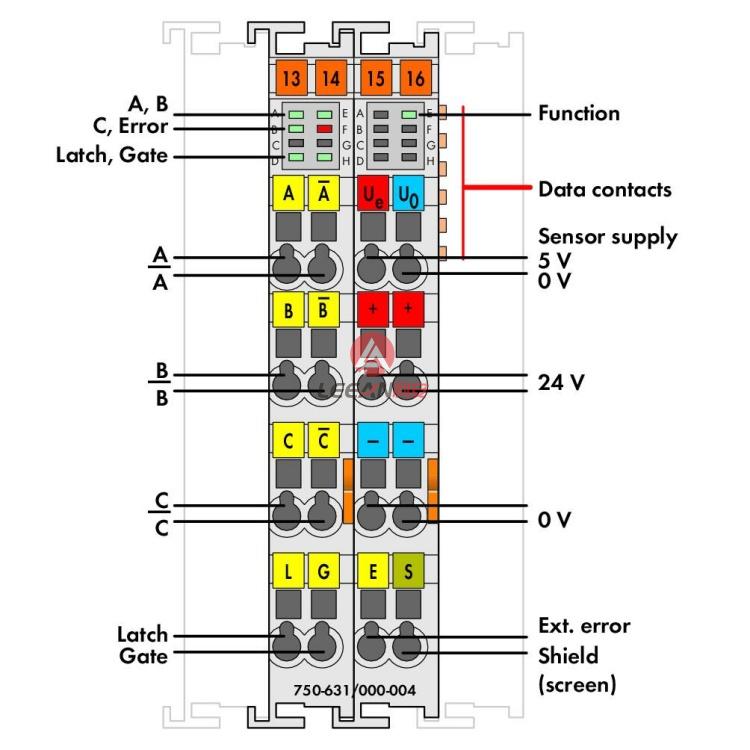

Drawing

---
