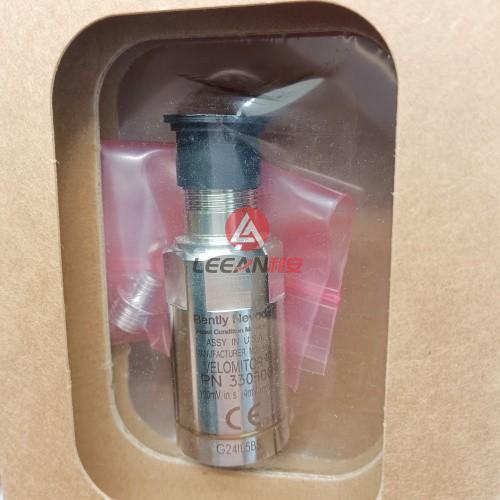

Bently Nevada Velomitor Piezo-velocity Sensor 330500-04-00 Piezoelectric Accelerometer New
Overview
The Bently Nevada 330500 Velomitor measures absolute (relative to free space) bearing housing, casing, or structural vibration. Unlike moving-coil velocity transducers, such as the Bently Nevada Seismoprobe family of velocity transducers, Velomitor Piezo-velocity sensors are specialized piezoelectric accelerometers that incorporate embedded integrated electronics in a solid-state design. Because they incorporate solid-state electronics and have no moving parts, they do not suffer from mechanical degradation and wear, and can be mounted vertically, horizontally, or at any other angle of orientation.
Features
3.94mV/mm/s (100 mV/in/s) ±5% sensitivity
Frequency response:4.5Hz to 5kHz (270cpm to 300kcpm) ±3.0dB
6.0Hz to 2.5kHz (360cpm to 150kcpm) ±0.9dB
1270 mm/s (50 in/s) peak velocity
305m (1,000ft) max cable length
-67 to 250°F (-55 to 121°C) operating temp range
316L stainless steel case material
2-pin Mil-C-5015 connector
Specifications
| Brand |
Bently Nevada |
| Product |
Velomitor Piezo-velocity Sensor |
| Model |
330500-04-00 |
| Condition | New |
| More Sensors |
330500-00-00 330500-01-00 330500-02-00 330500-03-00 330500-04-00 330500-05-00 330500-06-00 330500-07-00 330500-08-00 330500-00-20 330500-02-05 330500-06-02 330180-50-00 330500-02-00/CN 177230-00-01-05 177230-01-01-05 330103-00-12-10-01-00 330525-00 330525-CN 79532-01 140471-01 330500-00-20 If you need any other models, pls contact us. |

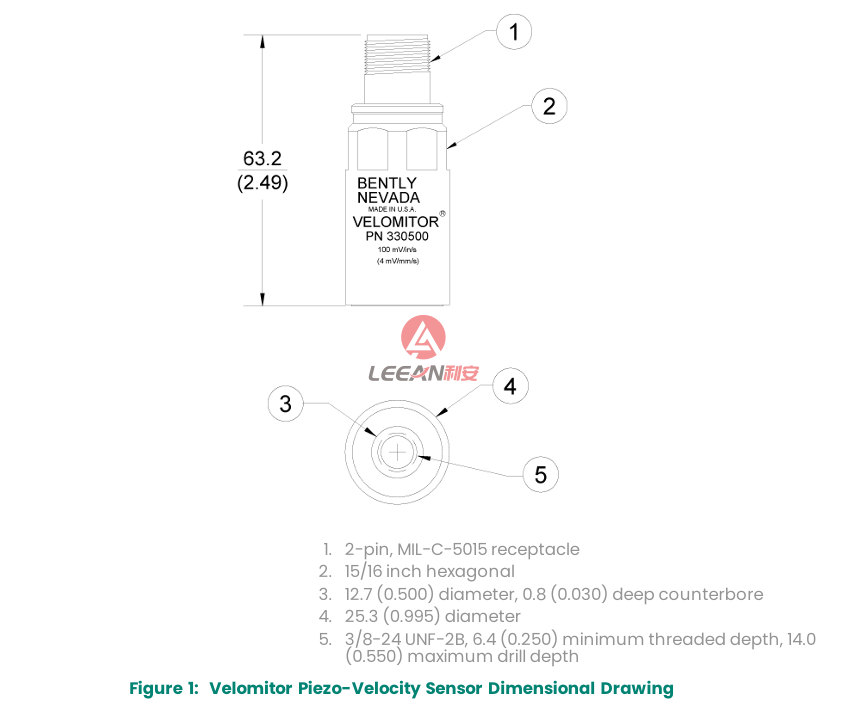

Drawing
