Description

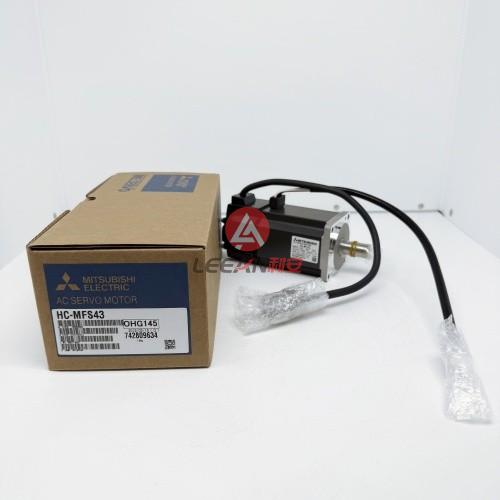

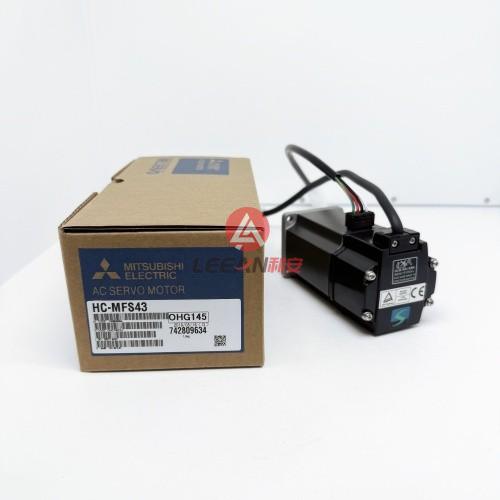

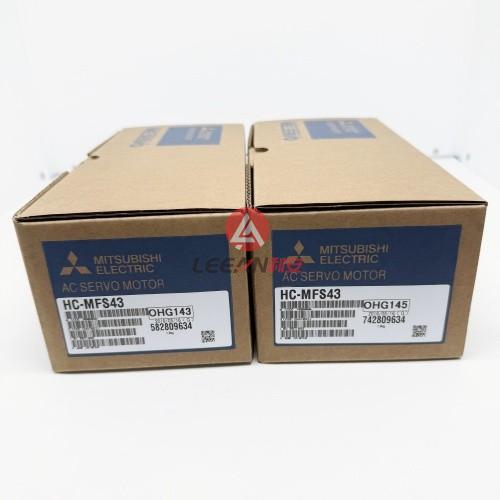

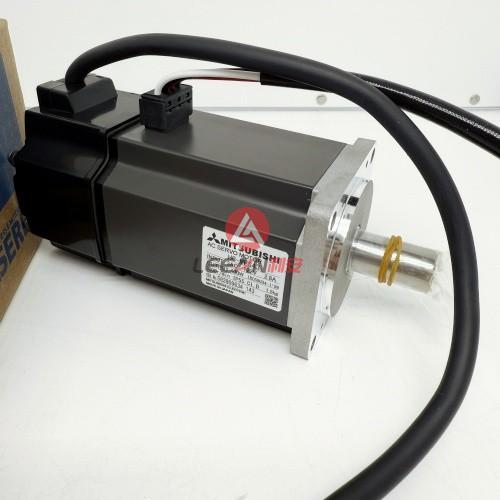

Mitsubishi Electric 400W Industrial AC Servo Motor HC-MFS43 Servomotor 3AC 122V 2.8A 3000RPM New
Overview
The Mitsubishi HC-MFS43 servo motor is a MELSERVO series ultra-low-inertia and small-capacity general-purpose servo motor. This servo motor operates with 0.4 kW of output power. The HC-MFS43 motor also operates with a rated torque value of 1.3 Nm and a maximum torque value of 3.8 Nm. The servo motor is designed to be controlled by a servo amplifier or servo drive. The HC-MFS43 servo motor has a straight shaft and no brake.
The Mitsubishi HC-MFS43 is a small power motor from the servo motor series. It is designed to provide precise and efficient motion control in various applications. With its low inertia of 0.143 Joules, it is particularly suitable for applications that require high-speed and dynamic operation, while delivering medium to high power output. The rated output of the HC-MFS43 motor is 0.4 kW (kilowatts), making it suitable for tasks that require moderate power output. It operates at a rated speed of 3000 rpm (revolutions per minute), enabling fast and accurate motion control.
Details
HG-SR702
We have good price for Mitsubishi items, if you need other models, pls feel free to contact us.
Manufacture
Mitsubishi from Japan
Model no.
HC-MFS43
Condition
New Original
Specifications
Model Type:Ultra-low inertia, small capacity servo motor
Rated Output Power:0.4 kW
Rated Torque:1.3 Nm
Rated Speed:3000 rpm
Maximum Speed:4500 rpm
Maximum Torque:3.8 Nm
Power Rate at Continuous Rated Torque:116.55 kW/s
Rated Current:2.8 A
Maximum Current:9A
Net Weight
2KG
Warranty
One Year
Similar AC Servo Motors
HC-MFS053
HC-MFS053B
HC-MFS053D
HC-MFS053BD
HC-MFS053D
HC-MFS053K
HC-MFS13
HC-MFS13B
HC-MFS13D
HC-MFS13BK
HC-MFS13BD
HC-MFS13K
HC-MFS23
HC-MFS23B
HC-MFS23BK
HC-MFS23K
HC-MFS43
HC-MFS43B
HC-MFS43BK
HC-MFS43K
HC-MFS73
HC-MFS73B
HC-MFS73BK
HC-MFS73K
HC-MFS23G2
HC-MFS23G1
HC-MFS053G2
HC-MFS43-S25
HC-MF13D-S7
HC-MF23BK-UE
HC-MFS43-S1
HC-MFS73-S1
HC-AQ0235D
HC-MFS43
HC-KFS43
HC-KFS43B
HC-SFS102
HC-SFS152
HC-SFS202
HC-KFS73
HC-SFS352
HC-SFS102B
HC-SFS102K
HG-KR13
HC-RP503
HC-PQ13B
HG-SR152B
HC-MF73
HC-MFS13
HC-MFS73K
HC-MFS43K
HC-MF43B
HC-MFS73
HC-MF73B
If you need other models, pls feel free to contact us.
More Servo Motors
100W HG-KN13J-S100
100W HG-KN13BJ-S100
200W HG-KN23J-S100
200W HG-KN23BJ-S100
400W HG-KN43J-S100
400W HG-KN43BJ-S100
750W HG-KN73J-S100
750W HG-KN73BJ-S100
1KW HG-SN102J-S100
1KW HG-SN102BJ-S100
1.5KW HG-SN152J-S100
1.5KW HG-SN152BJ-S100
2KW HG-SN202J-S100
2KW HG-SN202BJ-S100
3.0KW HG-SN302J-S100
3.0KW HG-SN302BJ-S100
5KW HG-SN502J-S100
5KW HG-SN502BJ-S100
7KW HG-SN702J-S100
7KW HG-SN702BJ-S100
Used with Servo Drive
MR-JE-10A + HG-KN13J-S100
MR-JE-20A + HG-KN23J-S100
MR-JE-40A + HG-KN43J-S100
MR-JE-70A + HG-KN73J-S100
MR-JE-100A + HG-SN102J-S100
MR-JE-200A + HG-SN152J-S100
MR-JE-200A + HG-SN202J-S100
MR-JE-300A + HG-SN302J-S100
MR-JET-70G+HG-KNS73BJ
MR-JET-100G +HG-SNS102BJ
MR-JET-40G+HG-KNS43J
Other Series Servo Motor
HG-KR053
HG-KR13
HG-KR23
HG-KR43
HG-KR73
HG-KR13B
HG-KR23B
HG-KR43B
HG-KR73B
HG-KR23J
HG-KR43J
HG-KR73J
HG-KN23J-100
HG-KN43J-100
HG-KN43BJ-100
HG-KN23BJ-100
HG-KN73BJ-100
HG-KR23JK-S920817
HG-MR13
HG-MR23
HG-MR43
HG-MR73
HG-SR352
HG-SR352B
HG-SR352J
HG-SR352BJ
HG-SN302J-S100
HG-SN102J-S100
HG-SN202J-S100
HG-SN102JK
HG-SN152J-S100
HG-SN152BJ-S100
HG-SN202BJ
HG-SN152BJ
HG-SR702BJ
HG-SN102BJ-S100
HG-SN302BJ-S100
HG-SN202BJ-S100
Servo motor Match Servo Amplifier
MR-J4-20B(-RJ), MR-J4-20B1(-RJ), MR-J4-20B-RJ010, MR-J4-20A(-RJ), MR-J4-20A1(-RJ)
MR-J4W2-22B, MR-J4W2-44B,MR-J4W3-222B, MR-J4W3-444B
Related servo motors
HG-KR053 ,HG-KR053B ,HG-KR053D ,HG-KR053BD ,HG-KR13D,HG-KR13BD,HG-KR23K,HG-KR23BK\,
HG-KR43K,HG-KR43BK,HG-KR73K,HG-KR73BK,HG-MR053,HG-MR053B,HG-MR053D,HG-MR053BD,
HG-MR13D,HG-MR13BD,HG-MR23K,HG-MR23BK,HG-MR43K,HG-MR43BK,HG-MR73K,HG-MR73BK

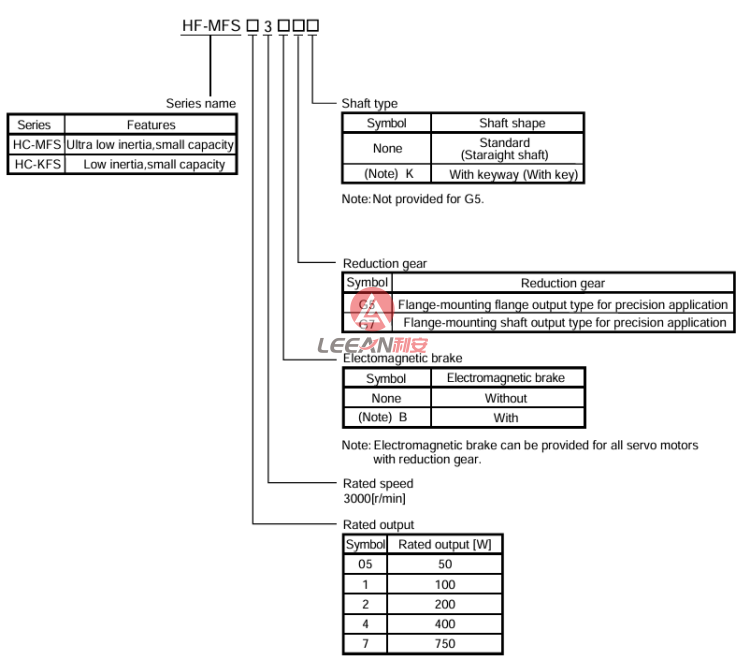

Servo Motor Selection (Example Part No. = HC-MFS053BG5)
Not all options available for every motor.
