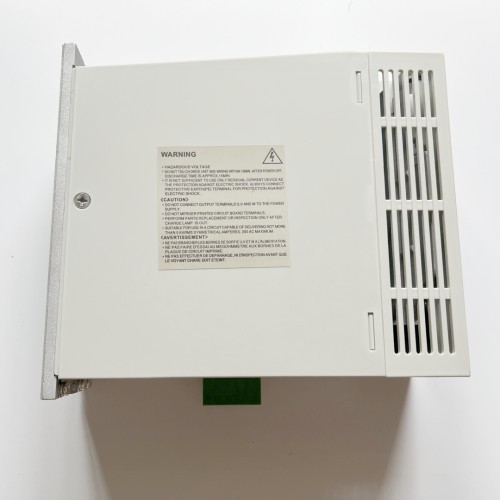

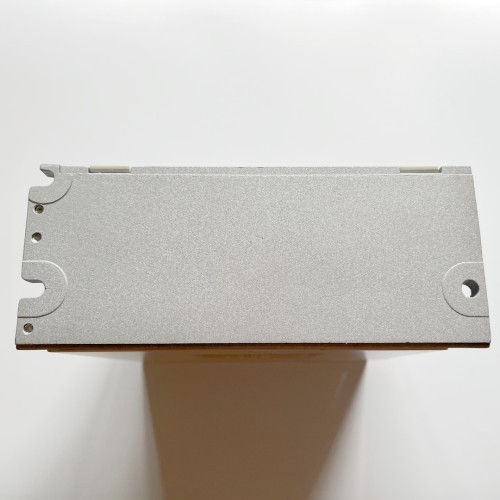

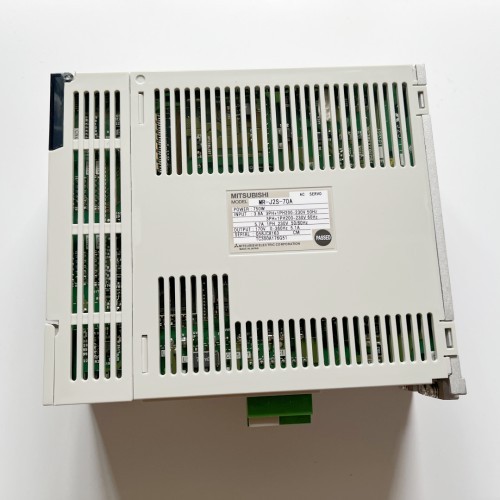

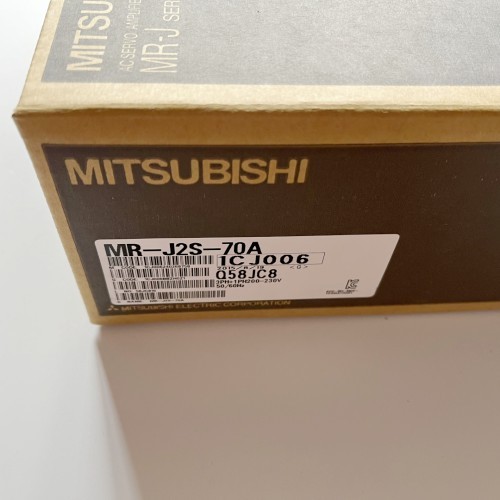

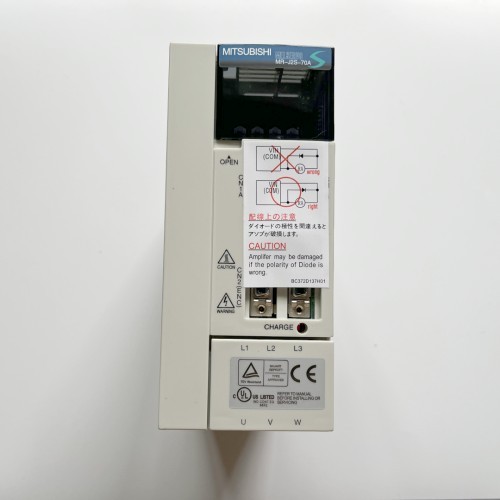

Mitsubishi Melservo AC Servo Amplifier MR-J2S-70A Power 750W Industrial Driver
Mitsubishi MR-J2S-70A Servo Amplifier:
AC Servo Drive, Amplifier
MR-J2S-A (100V/200V) type
3.8A 3PH+1PH 200-230V 50Hz
3PH+1PH 200-230V 60Hz
5.7A 1PH 230V 50/60Hz
170V 0-360Hz 5.1A
Introduction of Mitsubishi MR-J2 series amplifier:
The Mitsubishi MELSERVO-J2-Super series general-purpose AC servo is based on the MELSERVO-J2 series and has further higher performance and higher functions.
It is connected with a servo system controller or similar device via a serial bus (SSCNET) and the servo amplifier reads position data directly to perform operation.
Data from a command unit controls the speed and rotation direction of the servo motor and executes precision positioning.
A torque limit is imposed on the servo amplifier by the clamp circuit to protect the power transistor in the main circuit from overcurrent due to sudden acceleration/deceleration or overload. The torque limit value can be changed to any value with an external analog input or the parameter.
As this new series has the RS-232C serial communication function, a MR Configurator (servo configuration software)-installed personal computer or the like can be used to perform parameter setting, test operation, status display monitoring, gain adjustment, etc.
With real-time auto tuning, you can automatically adjust the servo gains according to the machine. The MELSERVO-J2-Super series servo motor is equipped with an absolute position encoder which has the resolution of 131072 pulses/rev to ensure more accurate control as compared to the MELSERVO-J2 series. Simply adding a battery to the servo amplifier makes up an absolute position detection system. This makes home position return unnecessary at power-on or alarm occurrence by setting a home position once.
