Description

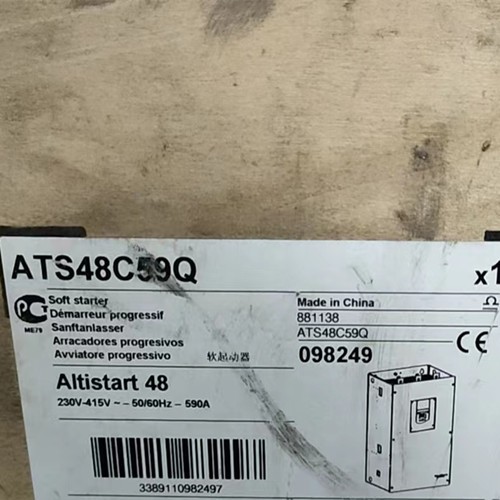

ATS48 Soft Starter for Asynchronous Motor Schneider ATS48C59Q 560A 230-415V 132-400 KW
Specifications of ATS48C41Q
|
Range of product |
Altistart 48 |
|
Product or component type |
Soft starter |
|
Product destination |
Asynchronous motors |
|
Product specific application |
Heavy duty industry and pumps |
|
Device short name |
ATS48 |
|
Utilisation category |
AC-53A |
|
Power supply voltage |
230...415 V - 15...10 % |
|
Motor power kW |
132 kW at 230 V (connection in the motor supply line) for severe applications 160 kW at 230 V (connection in the motor supply line) for standard applications 250 kW at 230 V (connection to the motor delta terminals) for severe applications 250 kW at 400 V (connection in the motor supply line) for severe applications 315 kW at 400 V (connection in the motor supply line) for standard applications 355 kW at 400 V (connection to the motor delta terminals) for severe applications 400 kW at 400 V (connection to the motor delta terminals) for standard applications
|
|
IcL starter rating |
590 A (connection in the motor supply line) for standard applications 1022 A (connection to the motor delta terminals) for severe applications 480 A (connection in the motor supply line) for severe applications 831 A (connection in the motor supply line) for standard applications |
Description:
ATS48C21Q soft starter for asynchronous motor, ATS48, 195 A, 230..415 V, 45..160 KW
Specifications of Schneider ATS48C41Q Soft Starter Asynchronous Motor Altistart 48
1）range of product: Altistart 48
2）product or component type: Soft starter
3）rated supply voltage: 230…415 V (- 15…10 %)
4）power dissipation in W: For severe applications 1017 W, For standard applications 1339 W
5）supply voltage limits: 195…456 V
6）supply frequency: 50…60 Hz (- 5…5 %)
7）factory setting current: 388 A
8）control circuit consumption: 80 W
9）width: 400 mm
10）height: 670 mm
11）depth: 300 mm
12）product weight: 51.4 kg
ATS48 Soft Starter
ATS48C11Q
ATS48C14Q
ATS48C17Q
ATS48C21Q
ATS48C25Q
ATS48C32Q
ATS48C41Q
ATS48C41Q
ATS48C59Q
ATS22C32Q
ATS22C41Q
ATS22C48Q
ATS22C59Q
ATS48C41Q 220KW
ATS38C48Q 250KW
ATS48C59Q 315KW
ATS48C66Q 355KW
ATS48C14Q
ATS48C17Q
ATS48D75Q
ATS48C14Q

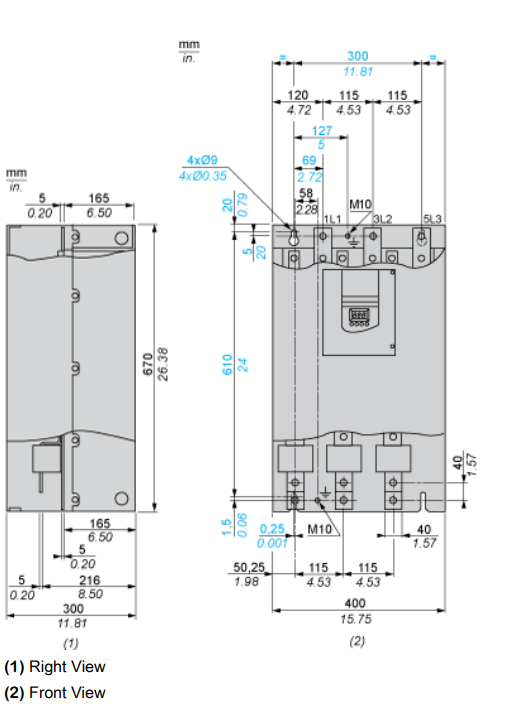

Dimensions
